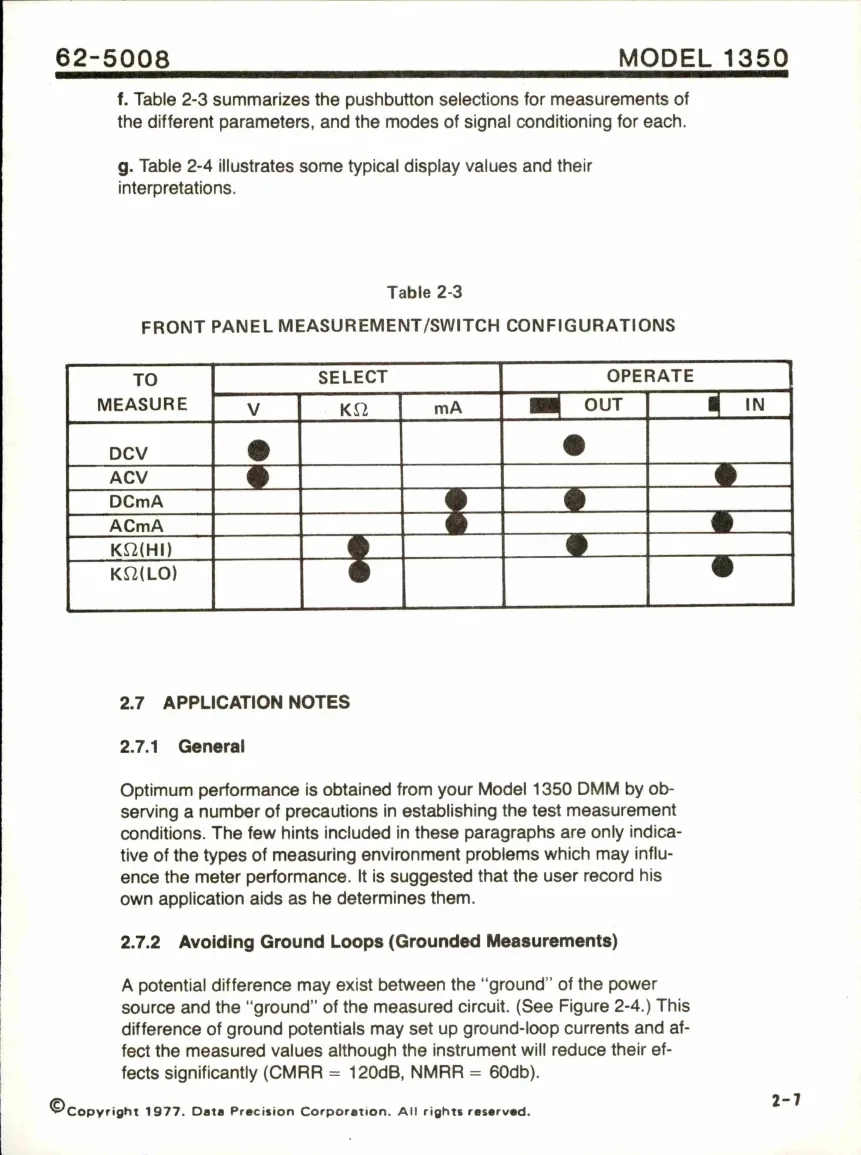

f. Table 2-3 summarizes the pushbutton selections for measurements of
the different parameters, and the modes of signal conditioning for each.
g. Table 2-4 illustrates some typical display values and their
interpretations.
Table 2-3
FRONT PANEL MEASUREMENT/SWITCH CONFIGURATIONS
TO
MEASURE
SELECT
OPERATE
V
KO
mA ■H OUT
i| IN
DCV
•
•
ACV
•
DCmA
f •
ACmA
•
KS2(HI)
f •
KfifLO)
•
•
2.7 APPLICATION NOTES
2.7.1 General
Optimum performance is obtained from your Model 1350 DMM by ofc)-
serving a number of precautions in establishing the test measurement
conditions. The few hints included in these paragraphs are only indica
tive of the types of measuring environment problems which may influ
ence the meter performance. It is suggested that the user record his
own application aids as he determines them.
2.7.2 Avoiding Ground Loops (Grounded Measurements)
A potential difference may exist between the "ground" of the power
source and the "ground" of the measured circuit. (See Figure 2-4.) This
difference of ground potentials may set up ground-loop currents and af
fect the measured values although the instrument will reduce their ef
fects significantly (CMRR = 120dB, NMRR = 60db).
