DATA PRECISION 1350 User Manual

62-5008 MODEL 1350

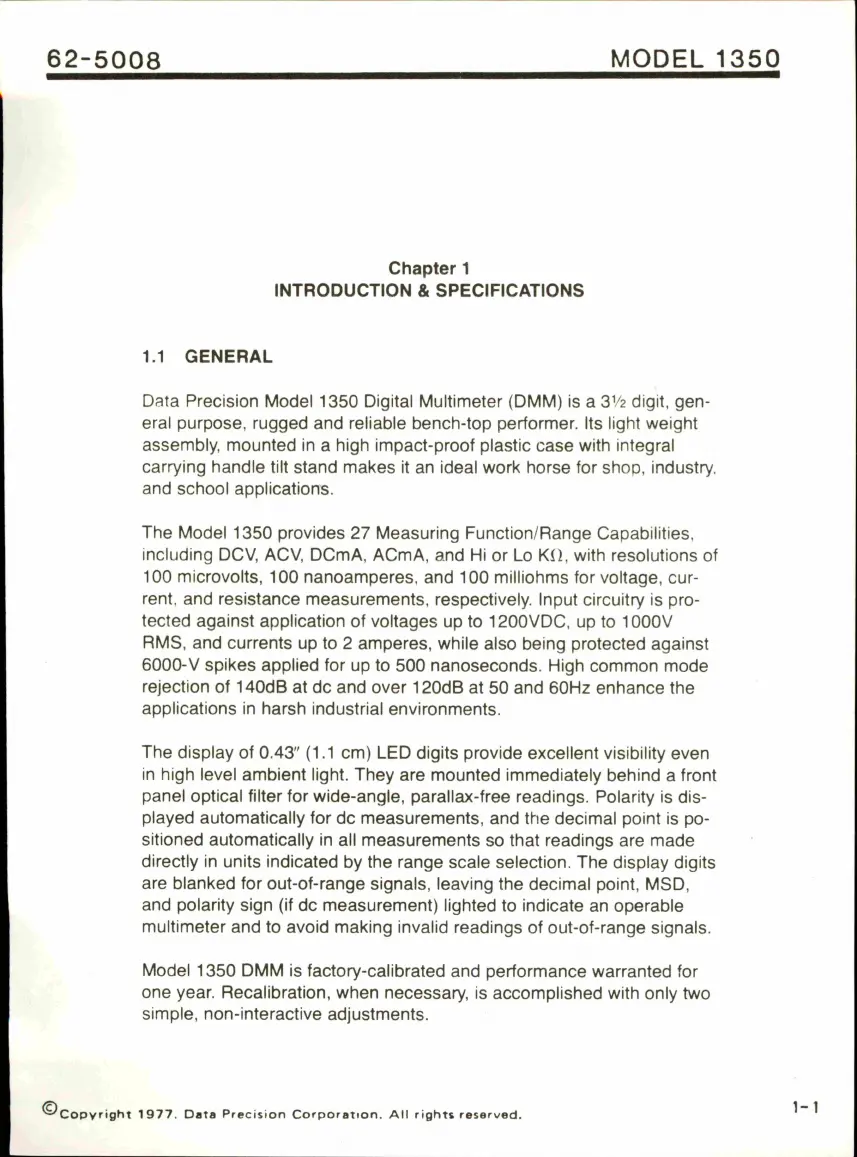

Chapter 1
INTRODUCTION & SPECIFICATIONS
1.1 GENERAL
Data Precision Model 1350 Digital Multimeter (DMM) is a 3V2 digit, gen
eral purpose, rugged and reliable bench-top performer. Its light weight
assembly, mounted in a high impact-proof plastic case with integral
carrying handle tilt stand makes it an ideal work horse tor shop, industry,
and school applications.
The Model 1350 provides 27 Measuring Function/Range Capabilities,
including DCV, ACV, DCmA, ACmA, and Hi or Lo Ktl, with resolutions of
100 microvolts, 100 nanoamperes, and 100 milliohms tor voltage, cur
rent, and resistance measurements, respectively. Input circuitry is pro
tected against application of voltages up to 1200VDC, up to 1000V
RMS, and currents up to 2 amperes, while also being protected against
6000-V spikes applied tor up to 500 nanoseconds. High common mode
rejection of 140dB at dc and over 120dB at 50 and 60Hz enhance the
applications in harsh industrial environments.
The display of 0.43" (1.1 cm) LED digits provide excellent visibility even
in high level ambient light. They are mounted immediately behind a front
panel optical filter tor wide-angle, parallax-tree readings. Polarity is dis
played automatically tor dc measurements, and the decimal point is po
sitioned automatically in all measurements so that readings are made
directly in units indicated by the range scale selection. The display digits
are blanked tor out-ot-range signals, leaving the decimal point, MSD,
and polarity sign (it dc measurement) lighted to indicate an operable
multimeter and to avoid making invalid readings of out-ot-range signals.
Model 1350 DMM is factory-calibrated and performance warranted tor
one year. Recalibration, when necessary, is accomplished with only two
simple, non-interactive adjustments.
^Copyrigrit 1977. Data Precision Corporation. Ail rights reseri/ed. ^ ^
