62-5008
MODEL 1350
FOAM LINER
,MODEL 1350 DMM
DOCUMENTATIO
PLASTIC
CONTAINER
PROIE SET. CLIPS. SPARE FUSES.ETC.

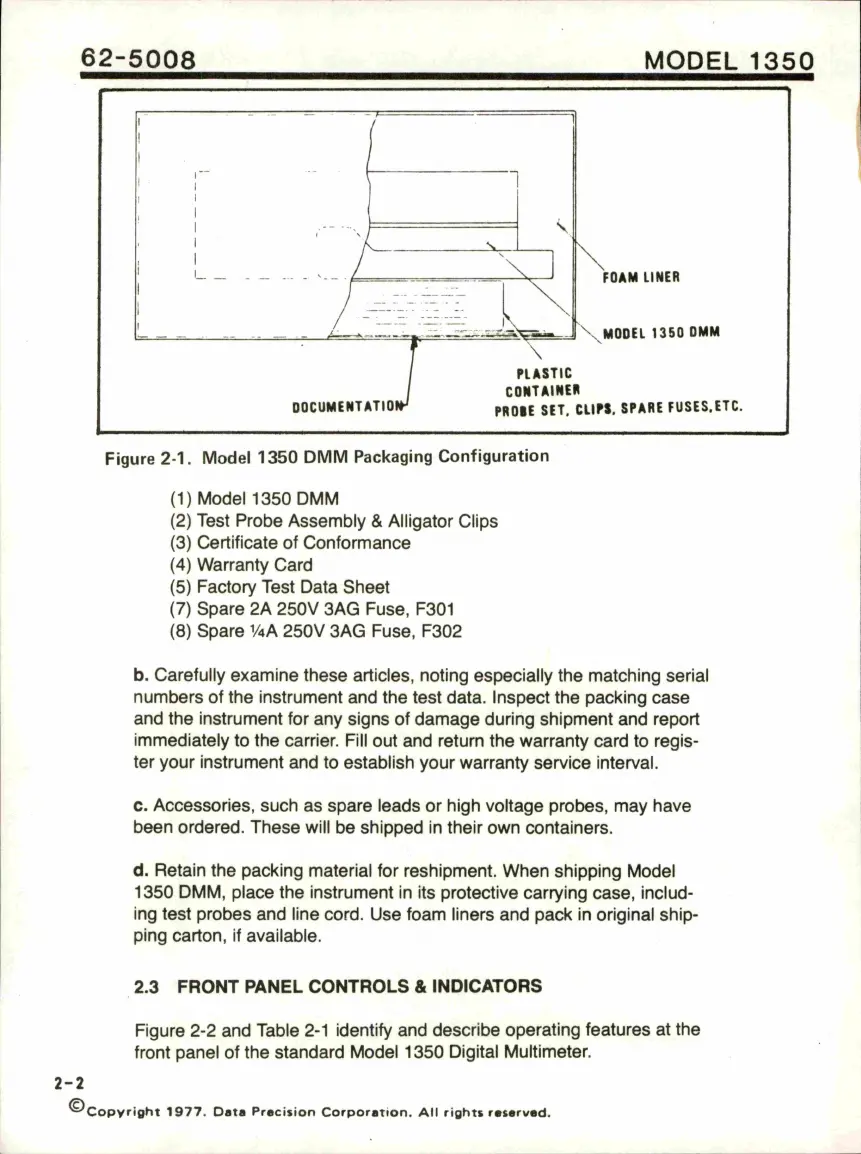

Figure 2-1. Model 1350 DMM Packaging Configuration
(1)Model 1350 DMM
(2) Test Probe Assembly & Alligator Clips
(3) Certificate of Conformance
(4) Warranty Card
(5) Factory Test Data Sheet
(7) Spare 2A 250V 3AG Fuse, F301
(8) Spare V4A 250V 3AG Fuse, F302
b. Carefully examine these articles, noting especially the matching serial
numbers of the instrument and the test data. Inspect the packing case
and the instrument for any signs of damage during shipment and report
immediately to the carrier. Fill out and return the warranty card to regis
ter your instrument and to establish your warranty service interval.
c. Accessories, such as spare leads or high voltage probes, may have
been ordered. These will be shipped in their own containers.
d. Retain the packing material for reshipment. When shipping Model
1350 DMM, place the instrument in its protective carrying case, includ
ing test probes and line cord. Use foam liners and pack in original ship
ping carton, if available.
2.3 FRONT PANEL CONTROLS & INDICATORS
Figure 2-2 and Table 2-1 identify and describe operating features at the
front panel of the standard Model 1350 Digital Multimeter.
2-2
©
