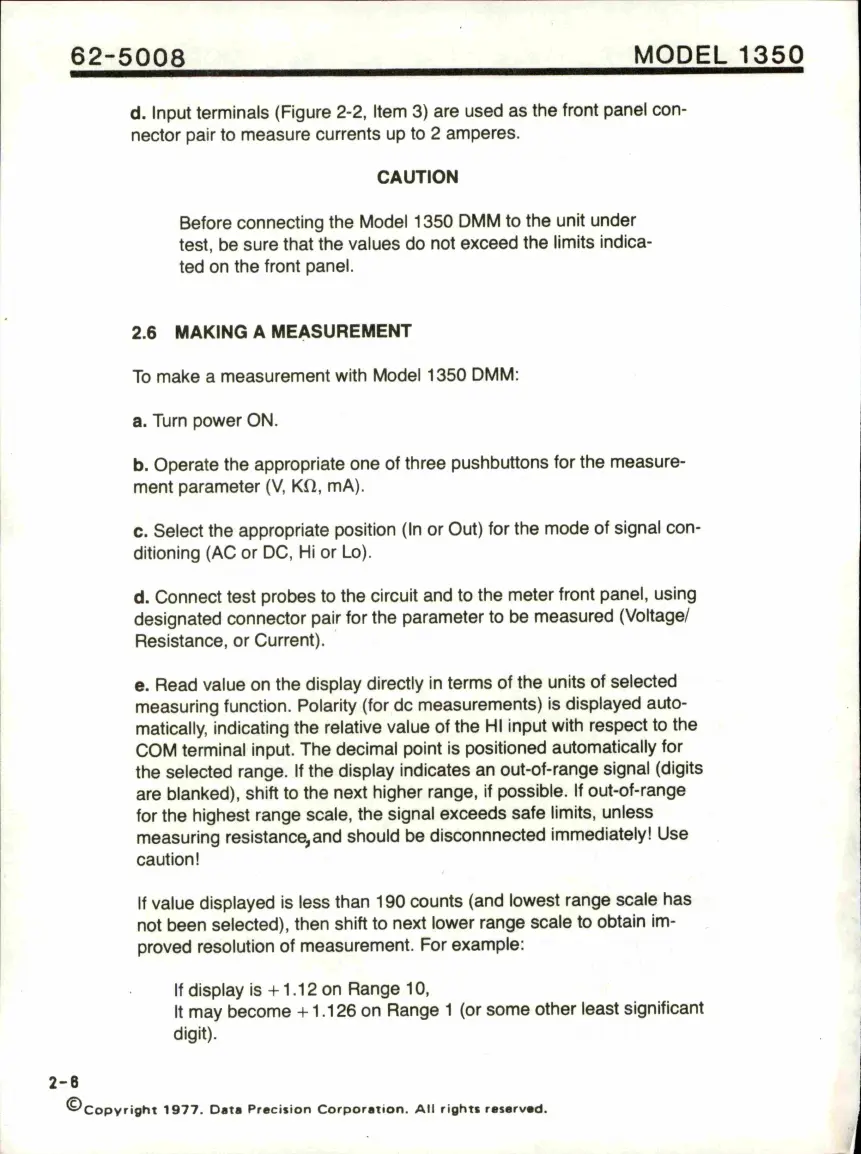

62-5008 MODEL 1350
d. Input terminals (Figure 2-2, Item 3) are used as the front panel con
nector pair to measure currents up to 2 amperes.
CAUTION
Before connecting the Model 1350 DMM to the unit under
test, be sure that the values do not exceed the limits indica
ted on the front panel.
2.6 MAKING A MEASUREMENT
To make a measurement with Model 1350 DMM:
a. Turn power ON.
b. Operate the appropriate one of three pushbuttons for the measure
ment parameter (V, Kft, mA).
0. Select the appropriate position (In or Out) for the mode of signal con
ditioning (AC or DC, Hi or Lo).
d. Connect test probes to the circuit and to the meter front panel, using
designated connector pair for the parameter to be measured (Voltage/
Resistance, or Current).
e. Read value on the display directly in terms of the units of selected
measuring function. Polarity (for dc measurements) is displayed auto
matically, indicating the relative value of the HI input with respect to the
COM terminal input. The decimal point is positioned automatically for
the selected range. If the display indicates an out-of-range signal (digits
are blanked), shift to the next higher range, if possible. If out-of-range
for the highest range scale, the signal exceeds safe limits, unless
measuring resistance^and should be disconnnected immediately! Use
caution!
If value displayed is less than 190 counts (and lowest range scale has
not been selected), then shift to next lower range scale to obtain im
proved resolution of measurement. For example;
If display is-1-1.12 on Range 10,
It may become -i-1.126 on Range 1 (or some other least significant
digit).
2-6
^Copyright 1977. Data Preciiion Corporation. All rights retarvad.
