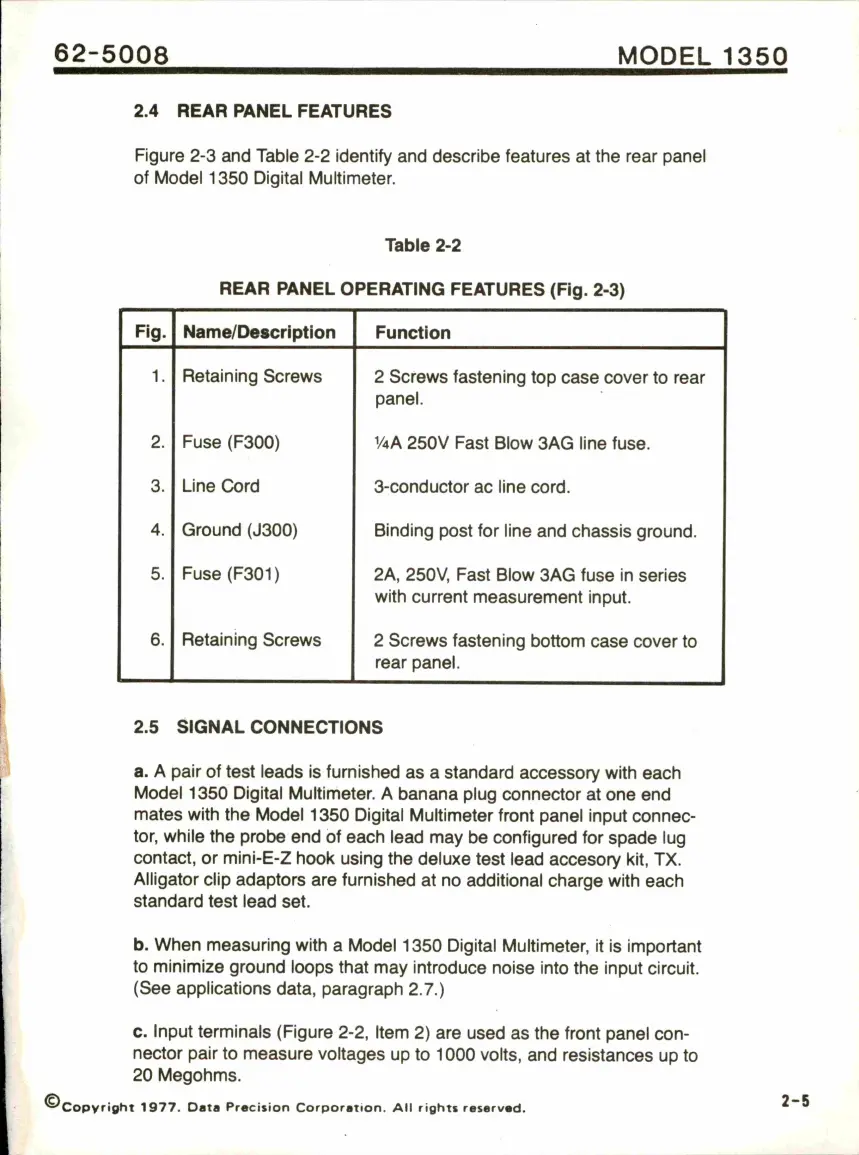

62-5008
MODEL
1350
2.4
REAR
PANEL
FEATURES
Figure
2-3
and
Table
2-2
identify
and
describe
features
at
the
rear
panel
of
Model
1350
Digital
Multimeter.
Table
2-2
REAR
PANEL
OPERATING
FEATURES
(Fig.
2-3)
Fig.
Name/Description
Function
1.
Retaining
Screws
2
Screws
fastening
top
case
cover
to
rear
panel.
2.
Fuse
(F300)
VaA
250V
Fast
Blow
3AG
line
fuse.
3.
Line
Cord
3-conductor
ac
line
cord.
4.
Ground
(J300)
Binding
post
for
line
and
chassis
ground.
5.
Fuse
(F301)
2A,
250V,
Fast
Blow
3AG
fuse
in
series
with
current
measurement
input.
6.
Retaining
Screws
2
Screws
fastening
bottom
case
cover
to
rear
panel.
2.5
SIGNAL
CONNECTIONS
a.
A
pair
of
test
leads
is
furnished
as
a
standard
accessory
with
each
Model
1350
Digital
Multimeter.
A
banana
plug
connector
at
one
end
mates
with
the
Model
1350
Digital
Multimeter
front
panel
input
connec
tor,
while
the
probe
end
of
each
lead
may
be
configured
for
spade
lug
contact,
or
mini-E-Z
hook
using
the
deluxe
test
lead
accesory
kit,
TX.
Alligator
clip
adaptors
are
furnished
at
no
additional
charge
with
each
standard
test
lead
set.
b.
When
measuring
with
a
Model
1350
Digital
Multimeter,
it
is
important
to
minimize
ground
loops
that
may
introduce
noise
into
the
input
circuit.
(See
applications
data,
paragraph
2.7.)
c.
Input
terminals
(Figure
2-2,
Item
2)
are
used
as
the
front
panel
con
nector
pair
to
measure
voltages
up
to
1000
volts,
and
resistances
up
to
20
Megohms.
'^Copyright
1977.
Data
Pracision
Corporation.
All
righ
ad.
2-5
