DATA PRECISION 1350 User Manual

62-5008
MODEL 1350

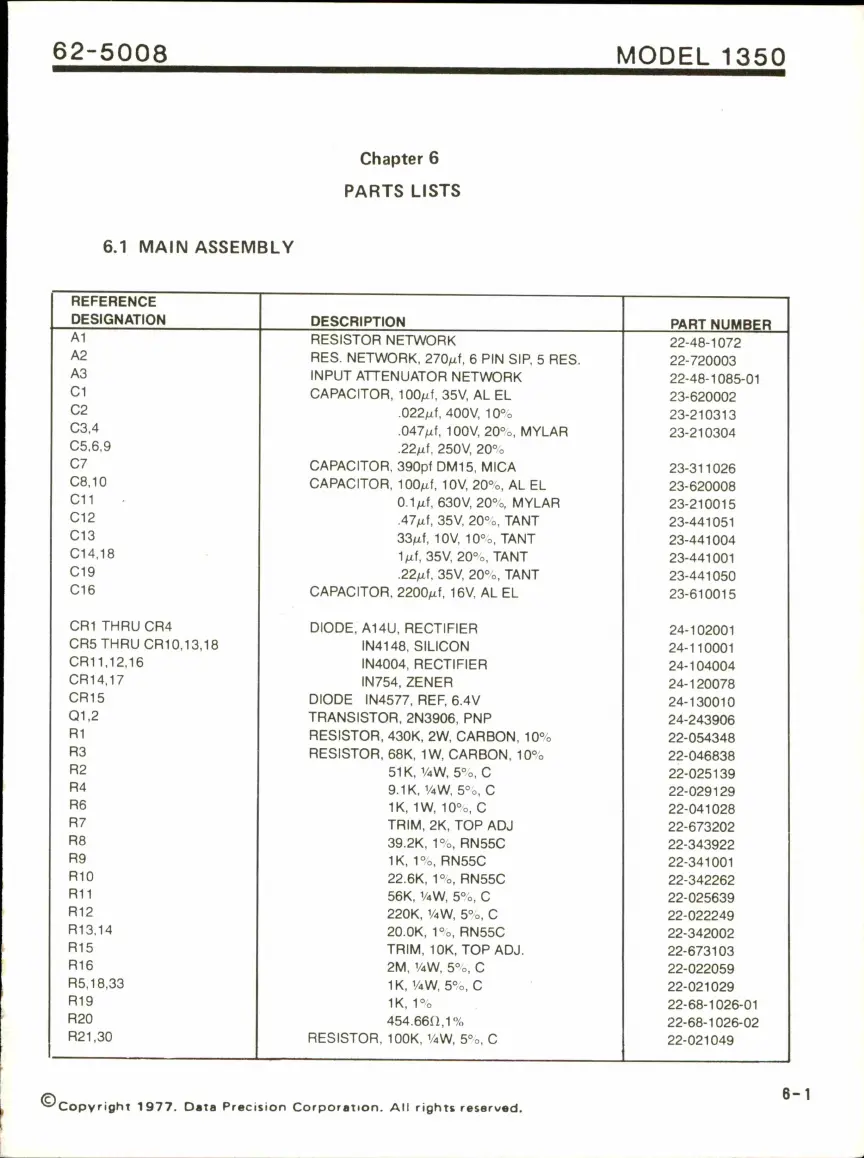

Chapter 6
PARTS LISTS
6.1 MAIN ASSEMBLY
REFERENCE
DESIGNATION
DESCRIPTION
PART NUMBER
A1
RESISTOR NETWORK
22-48-1072
A2
RES. NETWORK, 270,1x1, 6 PIN SIP, 5 RES.
22-720003
A3
INPUT ATTENUATOR NETWORK
22-48-1085-01
01
CAPACITOR, IOOmI, 35V, AL EL
23-620002
02
.022^1, 400V, 10°o
23-210313
03,4
.047^1, lOOV 20%, MYLAR
23-210304
05,6,9
.22#xf. 250V, 20%
07
CAPACITOR, 390pf DM15. MICA
23-311026
08,10
CAPACITOR, 100/xf, 10V, 20%, AL EL
23-620008
Oil
O.l/xf, 630V 20%, MYLAR
23-210015
012
.47^1, 35V 20%, TANT
23-441051
013
33^x1, lOV 10%, TANT
23-441004
014,18
1/xf, 35V, 20°'o, TANT
23-441001
019
.221x1, 35V, 20%, TANT
23-441050
016
CAPACITOR, 2200^x1. 16V, AL EL
23-610015
0R1 THRU0R4
DIODE, A14U, RECTIFIER
24-102001
0R5 THRUOR10,13,18
IN4148, SILICON
24-110001
0R11,12,16
IN4004, RECTIFIER
24-104004
OR14,17
IN754, ZENER
24-120078
0R15
DIODE IN4577, REF, 6.4V
24-130010
Q1,2
TRANSISTOR, 2N3906, PNP
24-243906
R1
RESISTOR, 430K, 2W, CARBON, 10%
22-054348
R3
RESISTOR, 68K, 1W, CARBON, 10%
22-046838
R2
51K, V.W, 5%, C
22-025139
R4
9.IK, V.W, 5%, C
22-029129
R6
IK, 1W, 10%, C
22-041028
R7
TRIM, 2K, TOP ADJ
22-673202
R8
39.2K, 1%, RN55C
22-343922
R9
IK, 1%, RN55C
22-341001
RIO
22.6K, 1%, RN55C
22-342262
R11
56K, V.W, 5%, C
22-025639
R12
220K, V.W, 5%, C
22-022249
R13,14
20.0K, 1°o, RN55C
22-342002
R15
TRIM, 10K, TOP ADJ.
22-673103
R16
2M, V.W, 5°o, C
22-022059
R5,18,33
IK, y.w, 5%, C
22-021029
R19
IK, 1%
22-68-1026-01
R20
454.66n,1%
22-68-1026-02
R21,30
RESISTOR, 100K, V.W, 5%, C
22-021049
©
Copyright 1977. Data Precision Corporation. Atl rights reserved.
6-1
