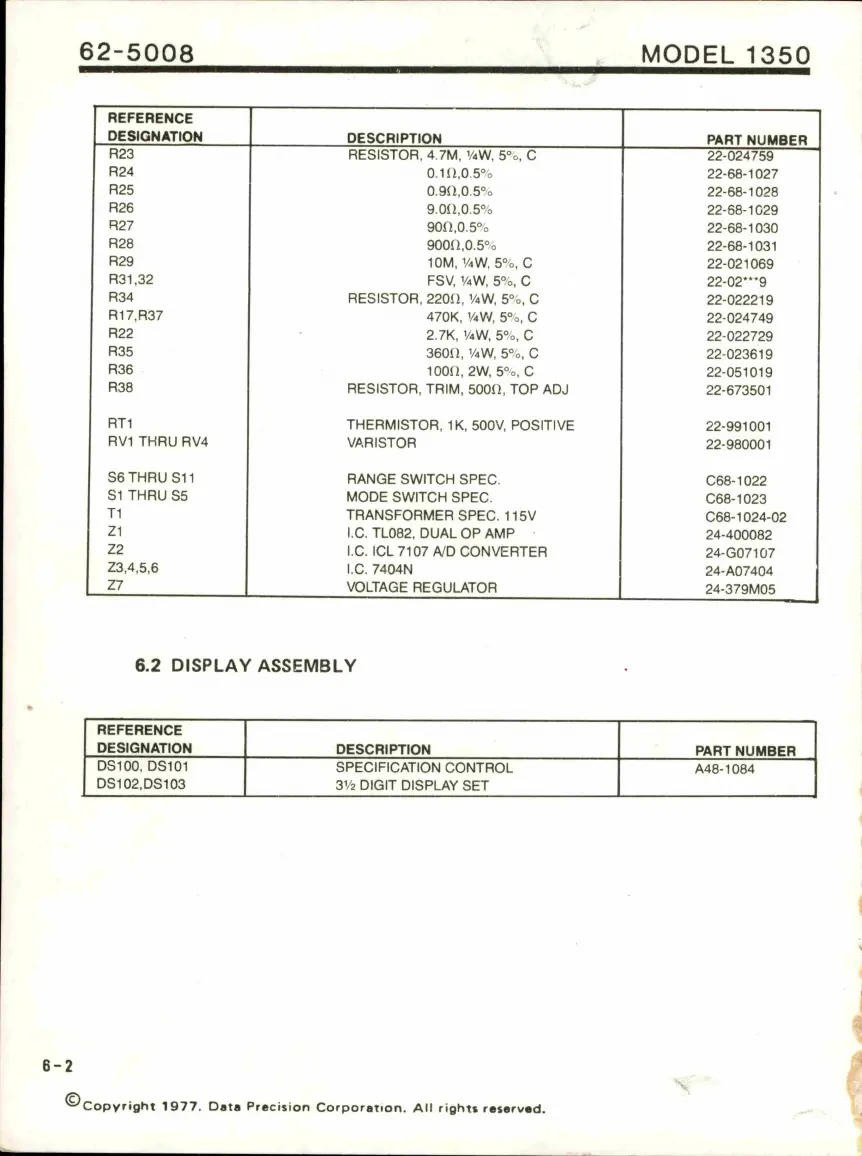

DATA PRECISION 1350 User Manual

62-5008
MODEL 1350
REFERENCE
DESIGNATION
DESCRIPTION
PART NUMBER
R23
RE8I8TOR, 4.7M. 'AW, 5%, C
22-024759
R24
o.in,o.5%
22-68-1027
R25
0.90,0.5%
22-68-1028
R26
9.00,0.5%
22-68-1029
R27
900,0.5%
22-68-1030
R28
9000,0.5°o
22-68-1031
R29
10M, 'AW, 5%, 0
22-021069
R31,32
F8V, 'AW, 5%, C
22-02—9
R34
RE8I8TOR. 220O, 'AW, 5%, C
22-022219
R17,R37
470K, 'AVi/, 5%, C
22-024749
R22
2.7K, 'AW, 5%, 0
22-022729
R35
360O, 'AW, 5%, 0
22-023619
R36
1000, 2W, 5%, C
22-051019
R38
RE8I8TOR, TRIM, 5000, TOP AOJ
22-673501
RT1
THERMISTOR, 1K, 500V, POSITIVE
22-991001
RV1 THRU RV4
VARI8T0R
22-980001
S6 THRU 811
RANGE SWITCH SPEC.
068-1022
81 THRU 85
MODE SWITCH SPEC.
C68-1023
T1
TRANSFORMER SPEC. 115V
C68-1024-02
Z1
I.e. TL082, DUAL OP AMP
24-400082
Z2
I.e. ICL 7107 A/D CONVERTER
24-G07107
23,4,5,6
I.e. 7404N
24-A07404
Z7
VOLTAGE REGULATOR
24-379M05
6.2 DISPLAY ASSEMBLY
REFERENCE
DESIGNATION
DESCRIPTION
PART NUMBER
DS100, 08101
SPECIFICATION CONTROL
A48-1084
□8102,08103
3'/2 DIGIT DISPLAY SET
■2
©
X
Copyright 1977. Data Precision Corporation. All righ
ad.

DATA PRECISION 1350 Specifications

General

Brand	DATA PRECISION
Model	1350
Category	Multimeter
Language	English
