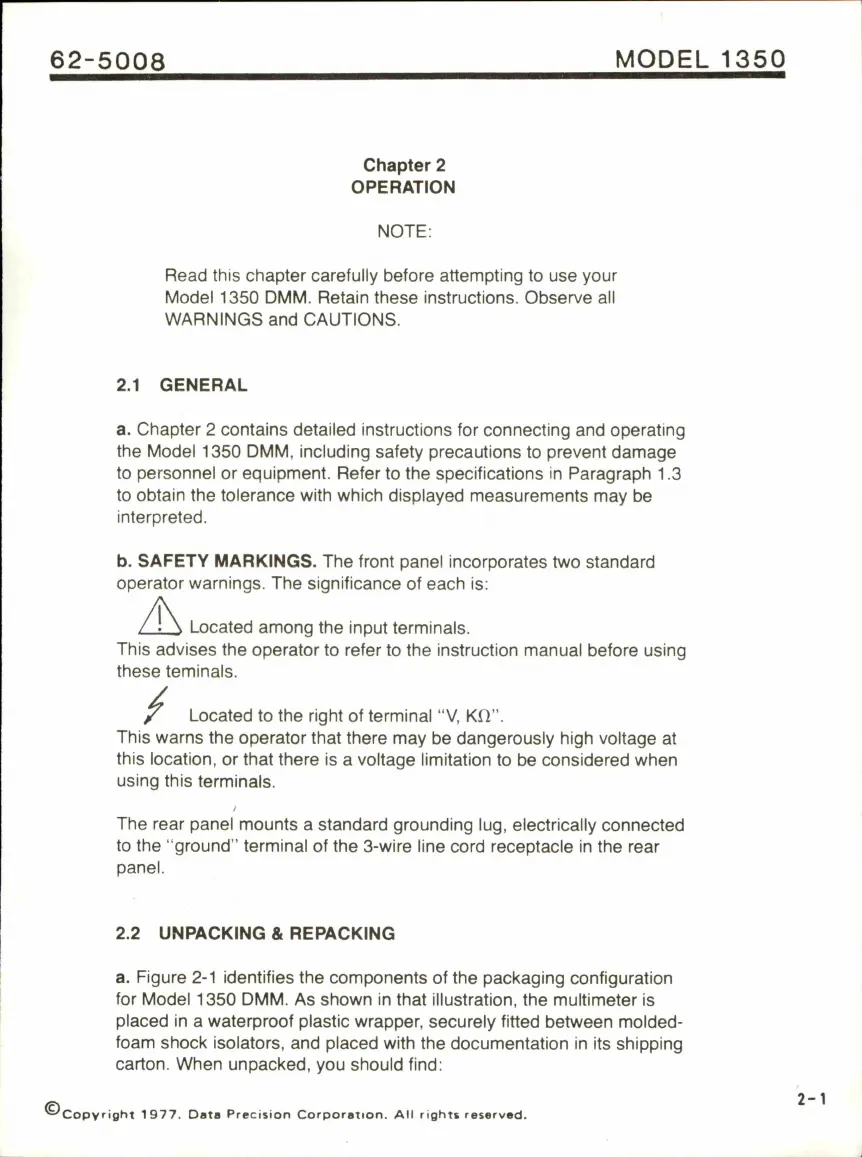

DATA PRECISION 1350 User Manual

62-5008 MODEL 1350
Chapter 2
OPERATION
NOTE:
Read this chapter carefully before attempting to use your
Model 1350 DMM. Retain these Instructions. Observe all
WARNINGS and CAUTIONS.
2.1 GENERAL
a. Chapter 2 contains detailed Instructions for connecting and operating
the Model 1350 DMM, Including safety precautions to prevent damage
to personnel or equipment. Refer to the specifications In Paragraph 1.3
to obtain the tolerance with which displayed measurements may be
Interpreted.
b. SAFETY MARKINGS. The front panel Incorporates two standard
operator warnings. The significance of each Is:
A
Located among the Input terminals.
This advises the operator to refer to the Instruction manual before using
these temlnals.
/
©
Located to the right of terminal "V, Kil".
This warns the operator that there may be dangerously high voltage at
this location, or that there Is a voltage limitation to be considered when
using this terminals.
The rear panel mounts a standard grounding lug, electrically connected
to the "ground" terminal of the 3-wlre line cord receptacle In the rear
panel.
2.2 UNPACKING & REPACKING
a. Figure 2-1 identifies the components of the packaging configuration
for Model 1350 DMM. As shown In that Illustration, the multimeter Is
placed In a waterproof plastic wrapper, securely fitted between molded-
foam shock Isolators, and placed with the documentation In Its shipping
carton. When unpacked, you should find:
Copyright 1977. Data Precision Corporation. All rights reserved.
2-1
