DATA PRECISION 1350 User Manual

62-6008 MODEL 1350

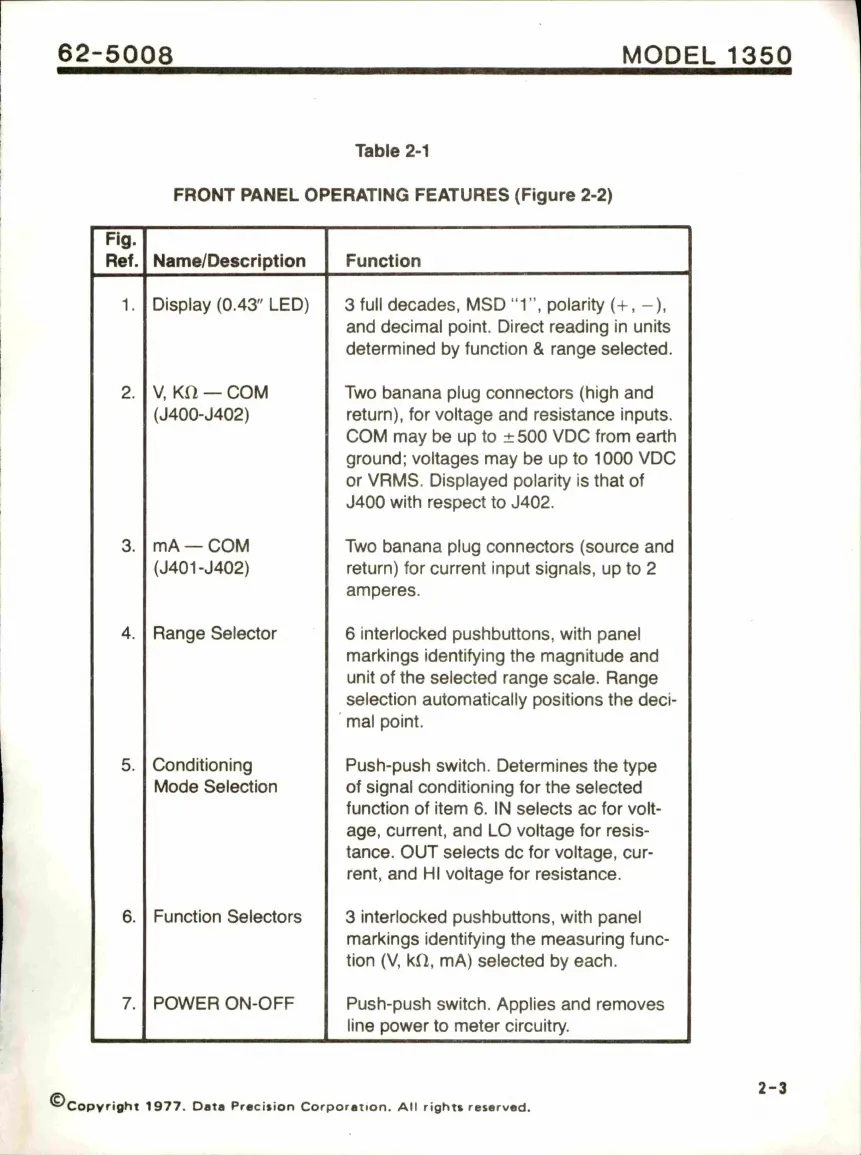

Table 2-1
FRONT PANEL OPERATING FEATURES (Figure 2-2)
Fig.
Ref.
Name/Description Function
1. Display (0.43" LED) 3 full decades, MSD "1", polarity (+,-),
and decimal point. Direct reading in units
determined by function & range selected.
2.
V, Kn — COM
(J400-J402)
Two banana plug connectors (tiigh and
return), for voltage and resistance inputs.
COM may be up to ± 500 VDC from eartfi
ground: voltages may be up to 1000 VDC
or VRMS. Displayed polarity is ttiat of
J400 with respect to J402.
3. mA — COM
(J401-J402)
Two banana plug connectors (source and
return) for current input signals, up to 2
amperes.
4. Range Selector
6 interlocked pushbuttons, with panel
markings identifying the magnitude and
unit of the selected range scale. Range
selection automatically positions the deci
mal point.
5. Conditioning
Mode Selection
Push-push switch. Determines the type
of signal conditioning for the selected
function of item 6. IN selects ac for volt
age, current, and LO voltage for resis
tance. OUT selects dc for voltage, cur
rent, and HI voltage for resistance.
6.
Function Selectors
3 interlocked pushbuttons, with panel
markings identifying the measuring func
tion (V, kn, mA) selected by each.
7. POWER ON-OFF Push-push switch. Applies and removes
line power to meter circuitry.
''Copyright 1977. Data Pracision Corporation. All rights resarvad.
2-3
