62-5008
MODEL
1350
c.
Gain
Calibration
(1)
Connect
variable
do
voltage
Input
to
Model
1350
as
stiown
in
Figure
3-3.
(2)
Set
do
voltage
to
-i-1.900
volts.
(3)
Select
V
function,
DC
conditioning,
range
scale
1.
(4)
Adjust
R7
for
a
display
of
+1.900
on
the
Model
1350
DMM.
(5)
Remove
input.
(6)
Turn
povi/er
OFF.
d.
Balance
Calibration
(1)
Connect
input
at
front
panel
(J400)
to
Z2-36
(REF
HI).
(2)
Select
DCV,
Range
lOOmV.
(3)
Adjust
R38
for
display
value
of
50±50
mV.
(1)
Connect
input
at
front
panel
(J400)
to
Z2-36
(REF
HI).
MODEL
1350
OMM
OCVVOLTAGE
STANDARO
-b-l-
MODEL
AN3100

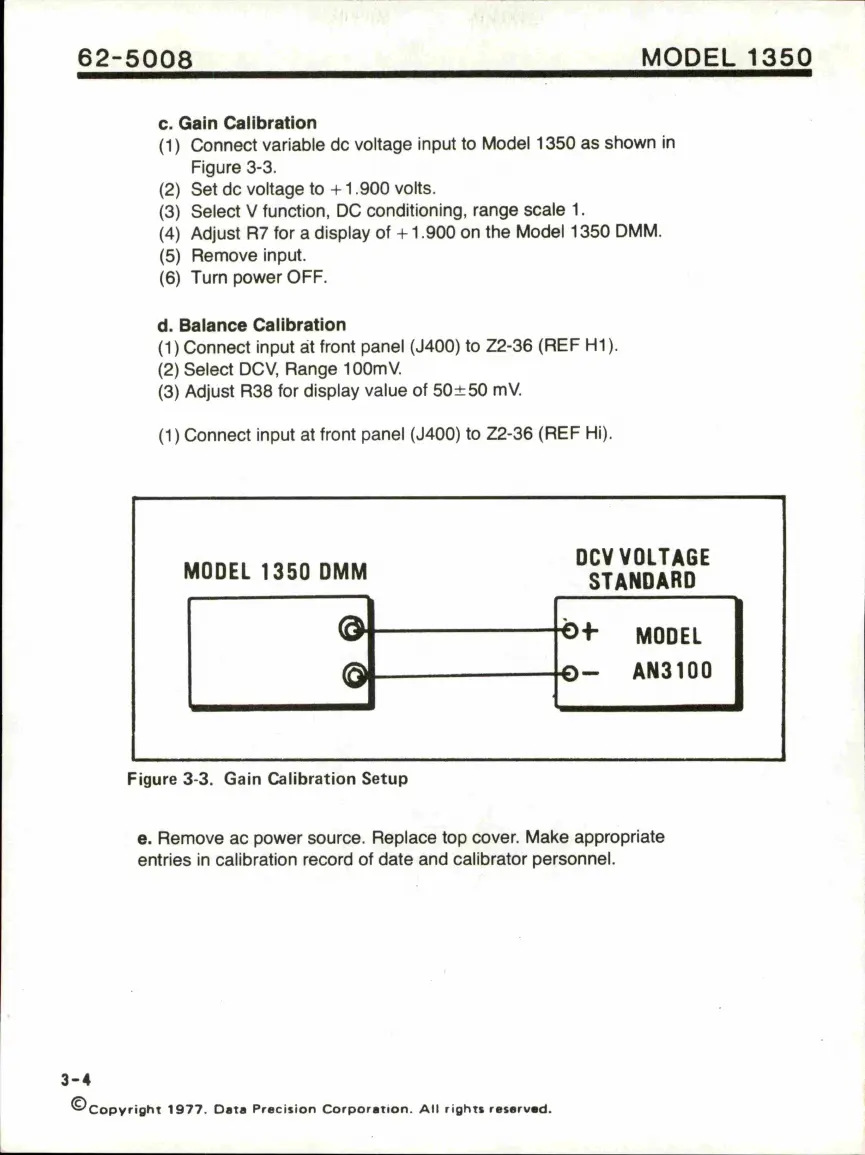

Figure
3-3.
Gain
Calibration
Setup
e.
Remove
ac
power
source.
Replace
top
cover.
Make
appropriate
entries
in
calibration
record
of
date
and
calibrator
personnel.
3-4
