62-5008
MODEL
1350
DISPLAY
REAR
PANEL
ASSEMBLY
RIBBON
CONNECTOR
CABLE
MAIN
PC-BOARn
ASSEMBLY
"""I"
RONT
PANEL
ASSEMBLY

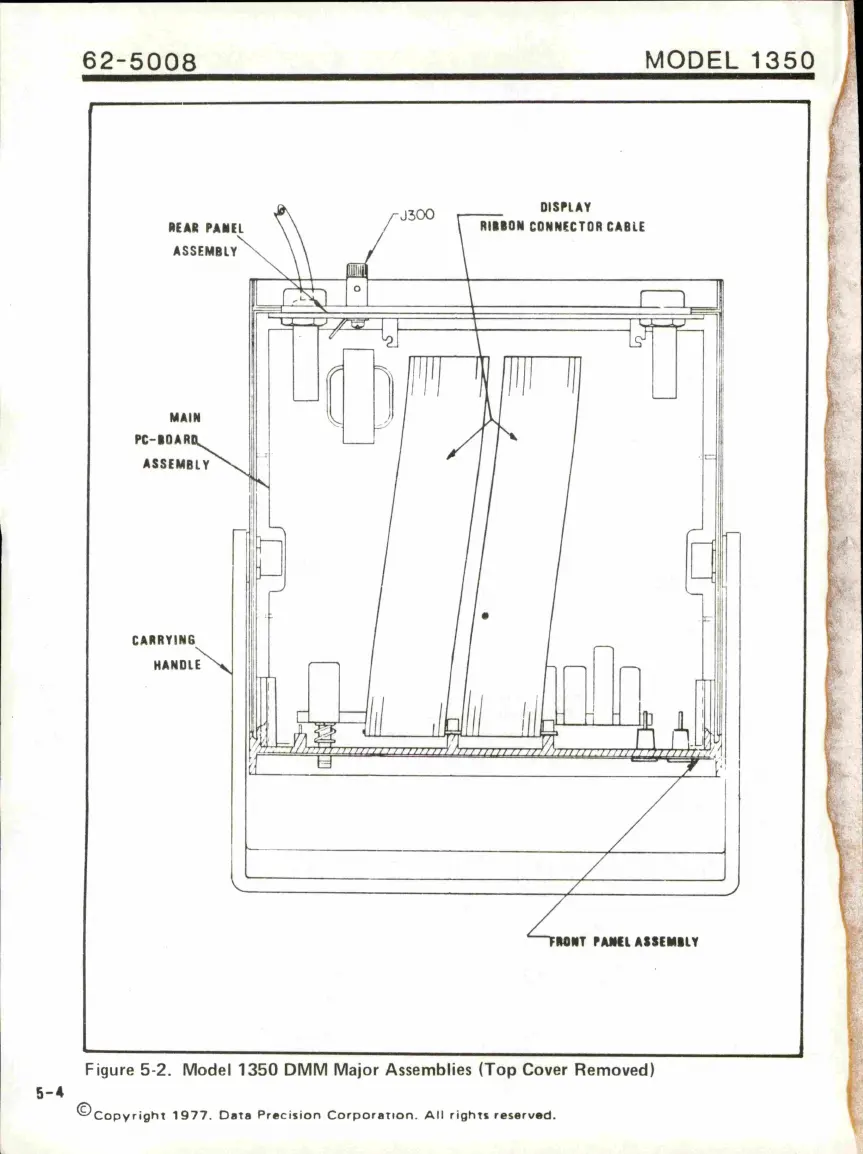

Figure
5-2.
Model
1350
DMM
Major
Assemblies
(Top
Cover
Removed)
5-4
©
Copyright
1977.
Data
Precision
Corporation.
All
rights
reserved.
39
41
Table of Contents
Table of Contents
3
Introduction & Specifications
6
General
6
Book Plan
7
Specifications
7
AC Volts
8
Resistance
9
DC Current
9
AC Current
10
Functional Characteristics
10
Power Supply
11
Environment
11
Mechanical Configuration
11
Accessories
12
Operation
13
General
13
Unpacking & Repacking
13
Front Panel Controls & Indicators
14
Rear Panel Features
17
Signal Connections
17
Making a Measurement
18
Application Notes
19
Avoiding Ground Loops (Grounded Measurements)
19
Making "Floating" Measurements
21
Making High Resistance Measurements
21
Making very Low Voltage Measurements
21
Calibration
23
General
23
Calibration Adjustments
23
Calibration Procedure
25
Principles of Operation
27
General
27
System Block Diagram
27
System Timing
29
Signal Conditioning Details
30
DCV Signal Conditioning
30
Dcma Signal Conditioning
30
AC/DC Converter Signal Conditioning
32
Resistance Signal Conditioning
32
A/D Converter Details
32
Analog Section
32
Digital Section
34
Display
35
Power Supply
35
Reference Supply
36
Maintenance
37
General
37
Trouble Shooting Strategy
37
Access to Model 1350 DMM Assemblies & Test Points
39
Open-Case Trouble Shooting Procedures
39
Power Supply Test
42
Reference Power Supply Test
42
AC/DC Converter Tests
43
A/D Converter Tests
44
Display Tests
45
Replaceable Parts
46
Parts Lists
48
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the DATA PRECISION 1350 and is the answer not in the manual?
Ask a question
DATA PRECISION 1350 Specifications
General
Brand
DATA PRECISION
Model
1350
Category
Multimeter
Language
English
