DataCard SD160 User Manual

108 Card Design Tasks

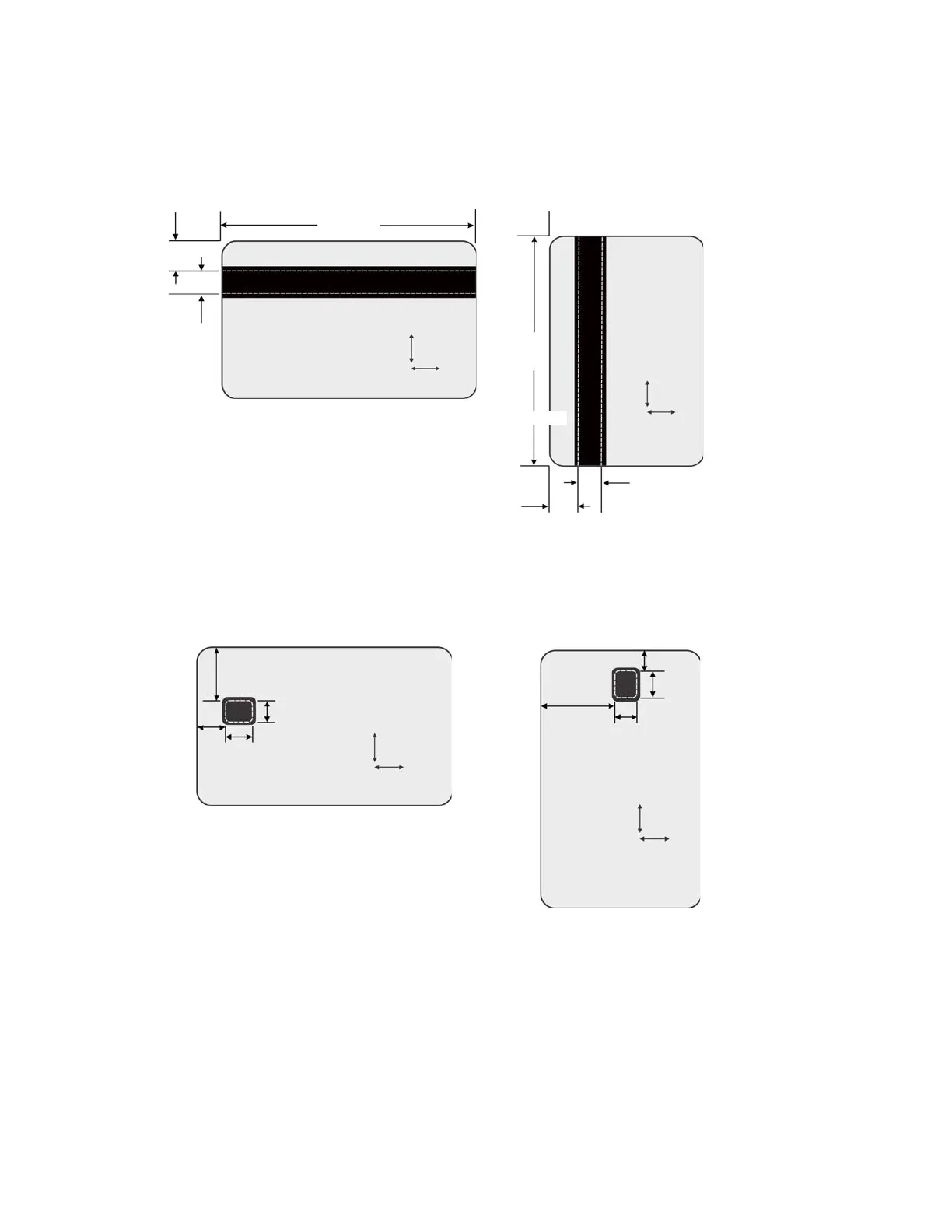

The following example shows retransfer printer print blocking dimensions, and the escape values
to enter, for a three-track magnetic stripe area.
The following illustration shows sample retransfer printer print blocking dimensions, and the
escape values to enter, for a smart card chip. The actual measurements can vary depending on
the size and location of the chip.
n1
n2
n3
n4
n1
n2
n3
n4
Top of card
Left edge
Top of card
Left edge
H
W
H
W
Landscape
n1 = 5.2 mm
n2 = 0
n3 = 86 mm
n4 = 11.3 mm
Portrait
n1 = 0
n2 = 5.2 mm
n3 = 11.3 mm
n4 = 86 mm
Portrait
n1 = 9.5 mm
n2 = 25.5 mm
n3 = 9.5 mm
n4 = 10.5 mm
Landscape
n1 = 19 mm
n2 = 9.5 mm
n3 = 10.5 mm
n4 = 10 mm
n1
n2
Left edge
Top of card
n3
n4
H
W
Left edge
Top of card
n1
n2
n3
n4
H
W

DataCard SD160 Specifications

General

Print Technology	Dye Sublimation
Print Resolution	300 dpi
Connectivity	USB 2.0
Power Requirements	100-240 VAC, 50/60 Hz
Card Capacity	100 cards input hopper, 25 cards output hopper
Card Size	CR80 (85.6 mm x 54 mm)
Operating System Support	Windows 7, Windows 8, Windows 10
Card Thickness	0.020" to 0.030" (0.51 mm to 0.76 mm)
Print Speed	Up to 150 cards per hour (YMCKT)
