DataCard SD160 User Manual

46 Card Printer Driver Management Tasks

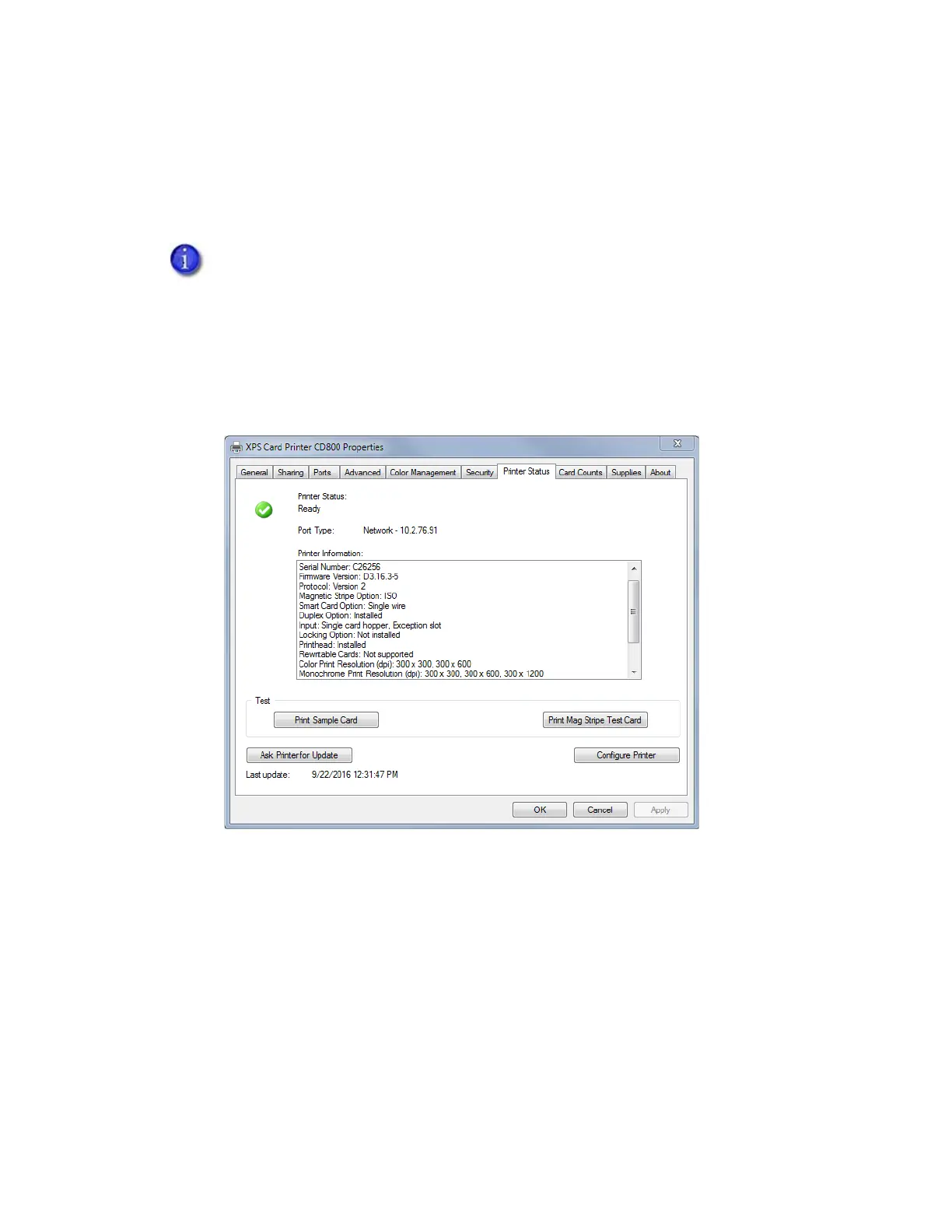

Printer Status Tab
The Printer Status tab displays the printer status, port type, IP address, printer information, and
any messages that apply to the printer.
1. On the Printer Properties window, select the Printer Status tab.
The date and time the information was retrieved from the printer displays in the lower left
area of the tab.
2. Click Ask Printer for Update to get the latest information from the printer.
If your printer is part of a printer pool:
 Printer status information is not available. The status displays as “Printer pooling.”
You can view status information for individual printers in the pool using Printer
Manager. Refer to your printer’s Installation and Administrator’s Guide for
complete information about using Printer Manager.
 All buttons on the Printer Status tab are unavailable.

DataCard SD160 Specifications

General

Print Technology	Dye Sublimation
Print Resolution	300 dpi
Connectivity	USB 2.0
Power Requirements	100-240 VAC, 50/60 Hz
Card Capacity	100 cards input hopper, 25 cards output hopper
Card Size	CR80 (85.6 mm x 54 mm)
Operating System Support	Windows 7, Windows 8, Windows 10
Card Thickness	0.020" to 0.030" (0.51 mm to 0.76 mm)
Print Speed	Up to 150 cards per hour (YMCKT)
