DataCard SD160 User Manual

XPS Card Printer Driver User’s Guide 73

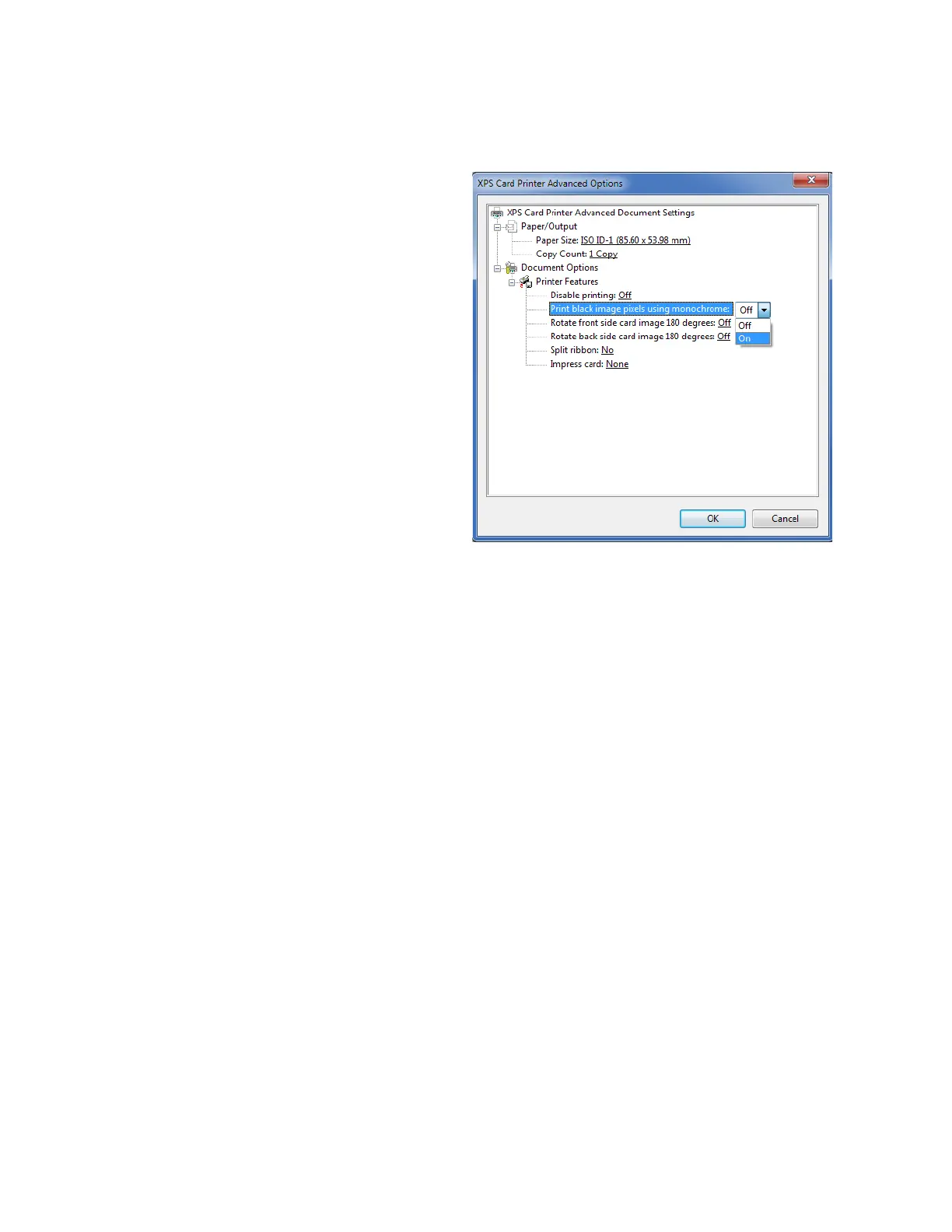

To specify the Print black image pixels using monochrome option:
1. Open the Printing Preferences
window.
2. On the Layout tab, click Advanced.
3. Set Print black image pixels using
monochrome to On.
4. Click OK to close the Advanced
Options window.
5. Click Apply on the Printing
Preferences window.
6. Click OK to close the window.

DataCard SD160 Specifications

General

Print Technology	Dye Sublimation
Print Resolution	300 dpi
Connectivity	USB 2.0
Power Requirements	100-240 VAC, 50/60 Hz
Card Capacity	100 cards input hopper, 25 cards output hopper
Card Size	CR80 (85.6 mm x 54 mm)
Operating System Support	Windows 7, Windows 8, Windows 10
Card Thickness	0.020" to 0.030" (0.51 mm to 0.76 mm)
Print Speed	Up to 150 cards per hour (YMCKT)
