BATTERIES AND MAINTENANCE
2
2.2 REPLACING THE BATTERY PACK
To correctly replace the battery pack, proceed as follows.
1. Turn off the Falcon X3™.

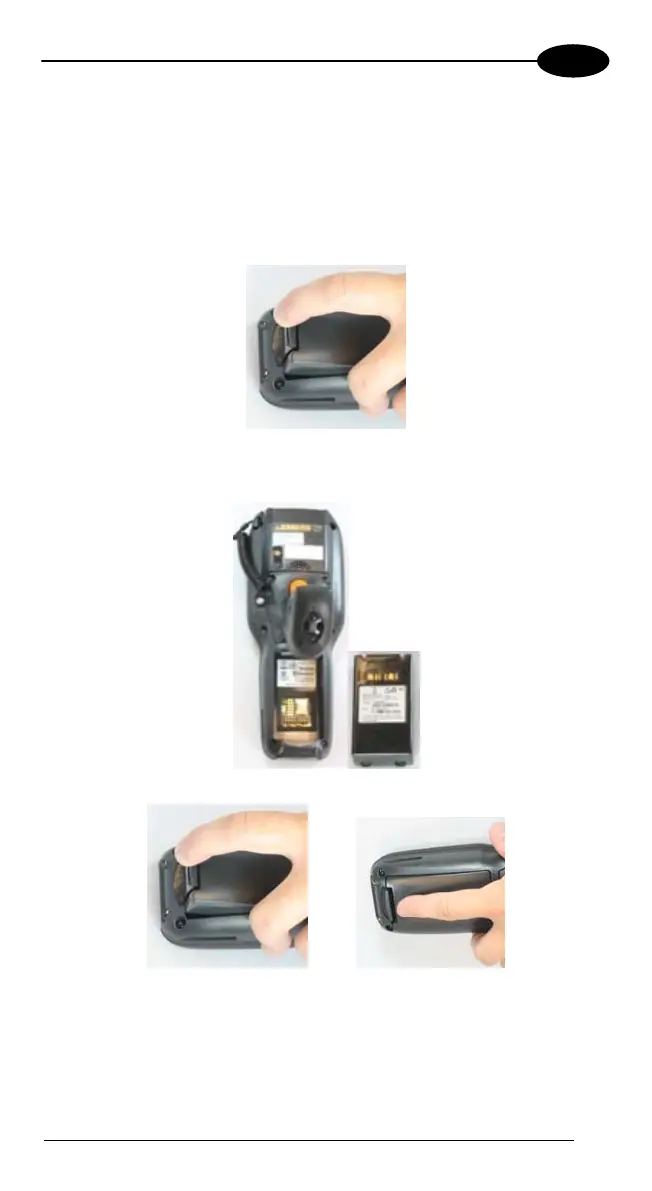

2. Press the latch release and lift battery from the enclosure as indicated in
the figure below:
3. Install the new battery pack, first insert the top end, then the latch bottom
as indicated in the following figure.
11
