CONNECTIONS
3
3.3 RS232 CONNECTION
You can use the Datalogic 94A051972 cable to directly connect the Falcon X3
to a host computer to transfer data through the RS232 interface.
A
C
B

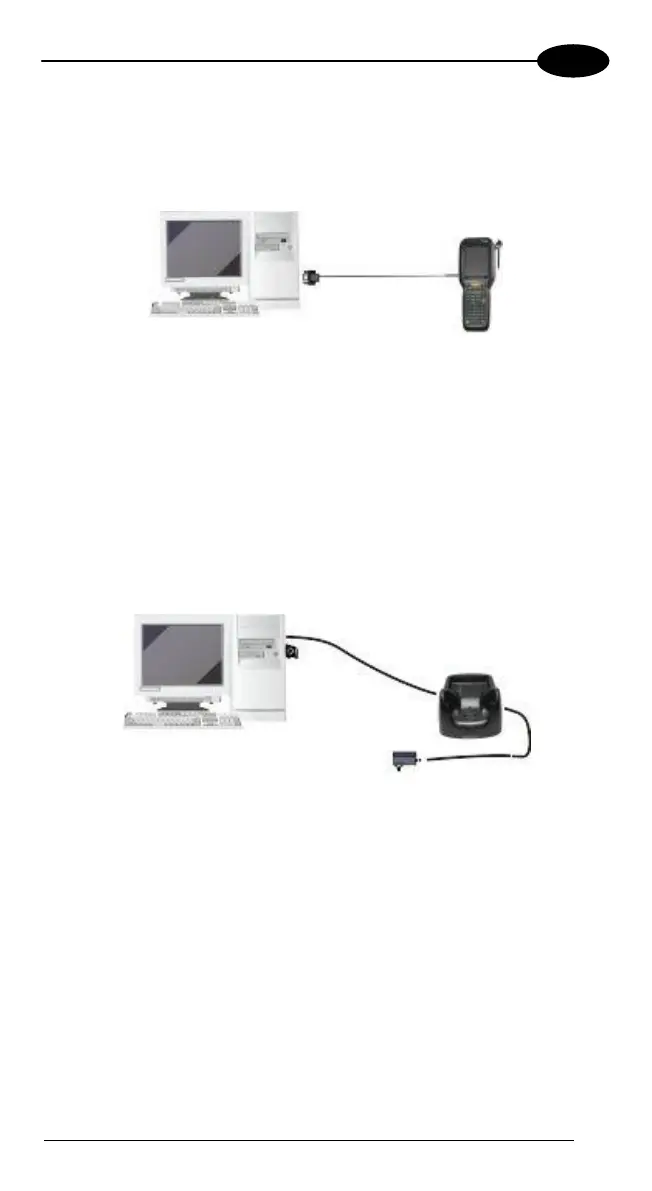

Key:
A) Host Computer C) Falcon X3
B) 94A051972 Handylink Micro
RS232 Client Cable
The Single Slot Dock can be connected to the Host by means of a standard null
modem cable such as Datalogic 94A051020 CAB-427 for 9-pin connections.
Once the Host has been turned on, insert the Falcon X3 mobile computer into
the cradle.
A
C
B
D
Key:
A) Host Computer C) Falcon X3 Single Slot Dock
B) 94A051020 CAB-427 RS232
Null Modem Cable
D) 94ACC1385 Power Adapter
