5.2 READING DIAGRAMS

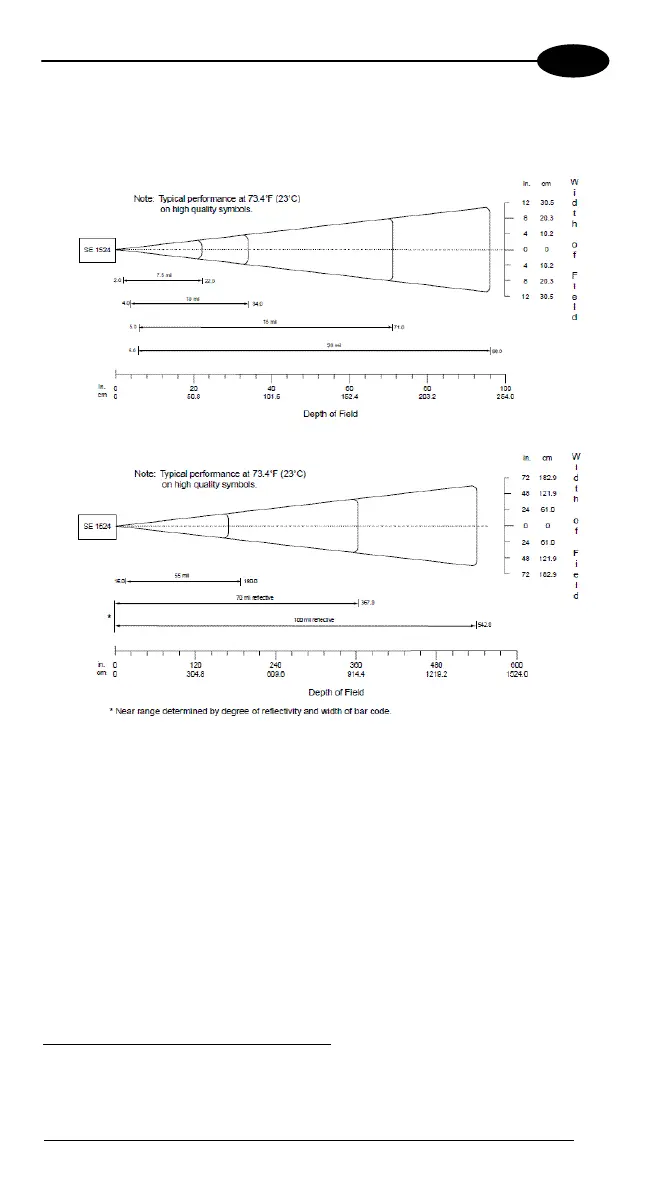

Auto Ranging Laser (XLR) 1D
Ranges - 1D codes:
7.5 mil: Code 39; 2.5:1 - 80% MRD: 2 - 22 (in) / 5.08 - 55.88 (cm)
10 mil: Code 39; 2.5:1 - 80% MRD: 4 - 34 (in) / 10.16 - 86.36 (cm)
15 mil: Code 39; 2.5:1 - 80% MRD: 5 - 71 (in) / 12.7 - 180.34 (cm)
20 mil: Code 39; 2.2:1 - 80% MRD: 5 - 96 (in) / 12.7 - 243.84 (cm)
55 mil: Code 39; 2.2:1 - 80% MRD: 15 - 180 (in) / 38.1 - 457.2 (cm)
70 mil reflective: Code 39;3:1 - 80% MRD:
∗
- 367 (in) / * - 932.18 (cm)
100 mil reflective: Code 39;3:1 - 80% MRD: * - 542 (in) / * - 1376.68 (cm)
∗
Near range on reflective bar codes determined by degree of reflectivity and
width of bar code
