CONNECTIONS
3

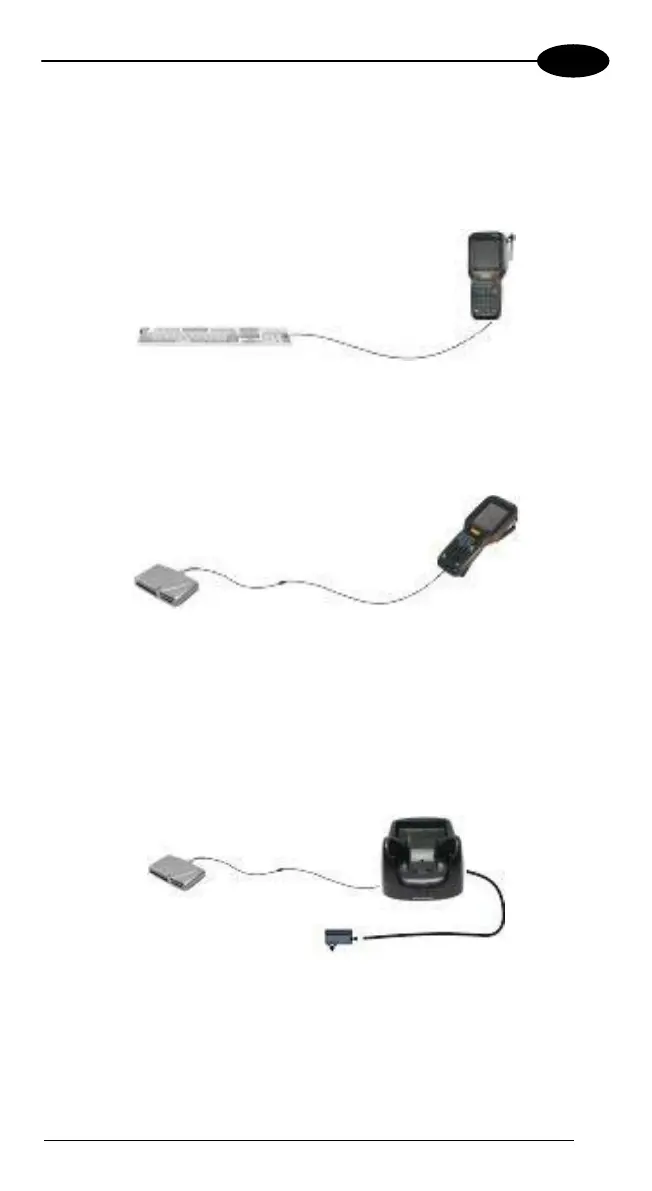

3.2 CONNECTION TO USB PERIPHERALS
To connect the Falcon X3 to a keyboard or a memory, connect the terminal to
the Datalogic 94A051969 cable or to the Datalogic 94A051971 cable (together
with a standard A to micro A USB cable).
For all these devices maximum current withdrawal must be below 100mA.
B
D
A
C
Key:
A) Keyboard with USB interface C) 94A051969 Micro USB Host Cable/
94A051971 Handylink Micro USB Host
Cable
B) Falcon X3 D) Standard A to Micro A USB Cable
B
D
A
C
Key:
A) USB hard drive/ external
memory source
C) 94A051971 Handylink Micro USB
Host Cable
B) Falcon X3 D) Standard A to Micro A USB Cable
Connect the Single Slot Dock to the peripheral by means of a Micro-A USB
cord, or use a Micro-A to Std-A receptacle USB adapter such as Datalogic
94A051969 (together with a standard USB cable if needed).
B
D
A
C
E
A) USB Peripheral (memory) D) Standard A to Micro A USB Cable
B) Falcon X3 Single Slot Dock E) 94ACC1381 Power Adapter
C) 94A051969 Micro USB Host
Cable
17

Datalogic Falcon X3 Specifications

General

RAM	256 MB
Flash Memory	1 GB
IP Rating	IP65
Operating System	Windows Embedded Handheld 6.5
Expansion Slot	MicroSD
Drop Resistance	1.8 m / 6.0 ft drops to concrete
Humidity	5 to 95% (non-condensing)
Supported Symbologies	PDF417, Data Matrix, QR Code
Operating Temperature	-10°C to 50°C (14°F to 122°F)
