Quick Reference Guide 5
tioning: horizontal, stand or wall mounting. The cables can
be looped around to the front of the Base Station, or fed
directly out the back of the Base Station, as shown in
Fig-
ure 2 on page 5
.

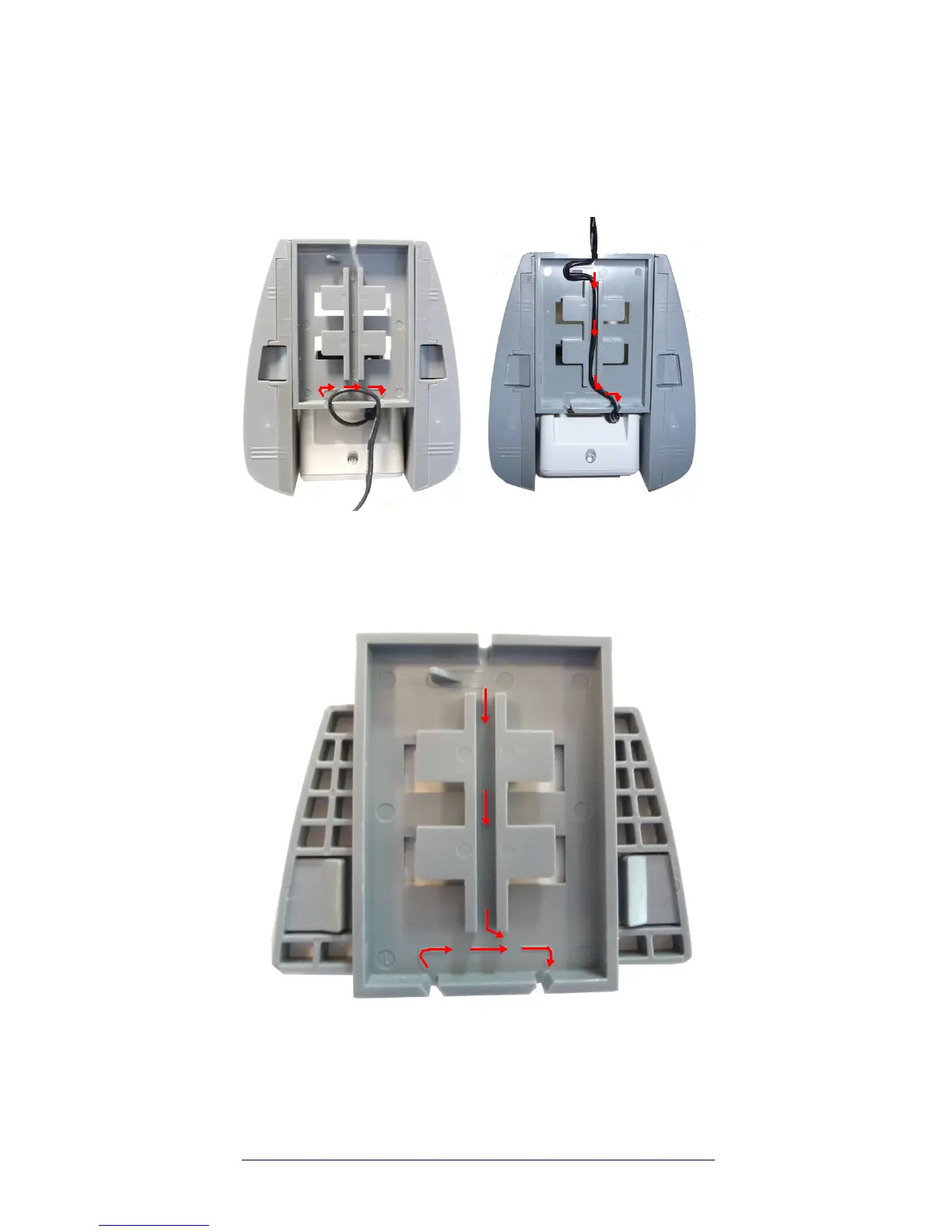

Figure 2. Options for routing the DC cord
Please refer to the arrows depicted on the bottom of the
base when placing the cables, detailed in Figure 3.
Figure 3. Arrows showing routing
