1.3 SYSTEM CONNECTIONS
1.3.1 RS232 Connection
The LYNX™ Reader requires the RS232 interface cable and the AC/DC power
adapter to be connected.
To install your reader to your host system, follow these instructions (see Figure 1
below).
1. Insert the cable into the bottom of the handle of the LYNX™ reader.
2. Connect the RS232 interface cable to the proper port on the host terminal.
3. Connect the power cord to the RS232 interface cable.
4. Connect the AC/DC power adapter at the wall outlet.
5. Power up your PC.
RS232 is the default interface set at the factory.

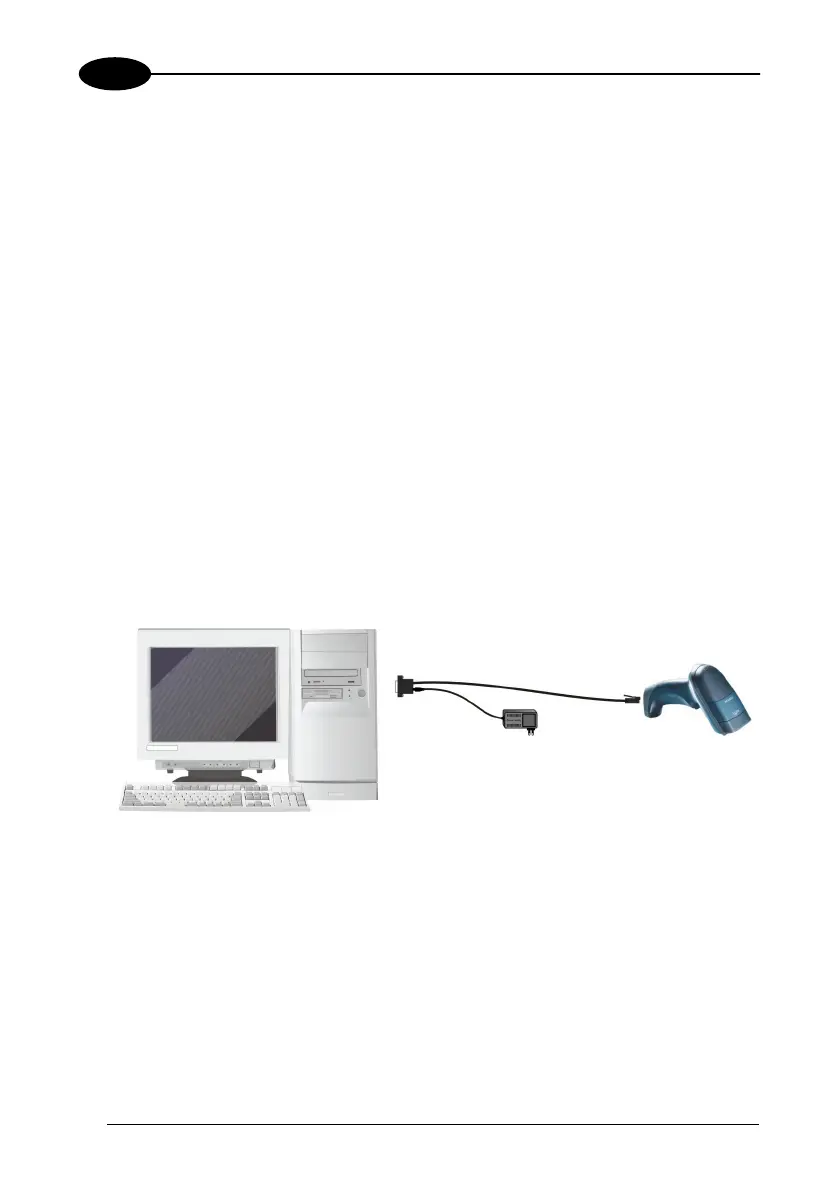

Figure 1 - RS232 Connection
