Datalogic Lynx Instruction Manual

LYNX™
1
1.3.3 USB Connection
The LYNX™ Reader requires the USB interface cable and the AC/DC power adapter
to be connected.
To install your reader to your host system, follow these instructions (see Figure 3
below).
1. Insert the cable into the bottom of the handle of the LYNX™ reader.
2. Connect the power cord to the USB interface cable.
3. Connect the AC/DC power adapter at the wall outlet.
4. Once the reader is powered and BEFORE CONNECTING THE CABLE TO THE
PC, read the correct USB interface code for your application in par. 2.3 of this
manual.
5. Power up your PC and connect the USB interface cable to a free USB port. The
PC automatically recognizes the device and asks to install the device driver.
6. Install the USB driver on your PC (the first time only) to complete the connection.
• For USB Bulk the relevant files and drivers must be installed from the CD-
ROM. See the “DLBulkUSB User Guide” file provided on the CD-ROM for
more information.
• For USB COM the relevant files and drivers must be installed from the USB
Device Installation software which can be downloaded from the web page
http://www.datalogic.com/services/support.
• For USB Keyboard and for USB Generic
HID the correct USB driver is
included in the Host Operating System and will either be loaded
automatically or will be suggested by the O.S. and should therefore be
selected from the dialog box.

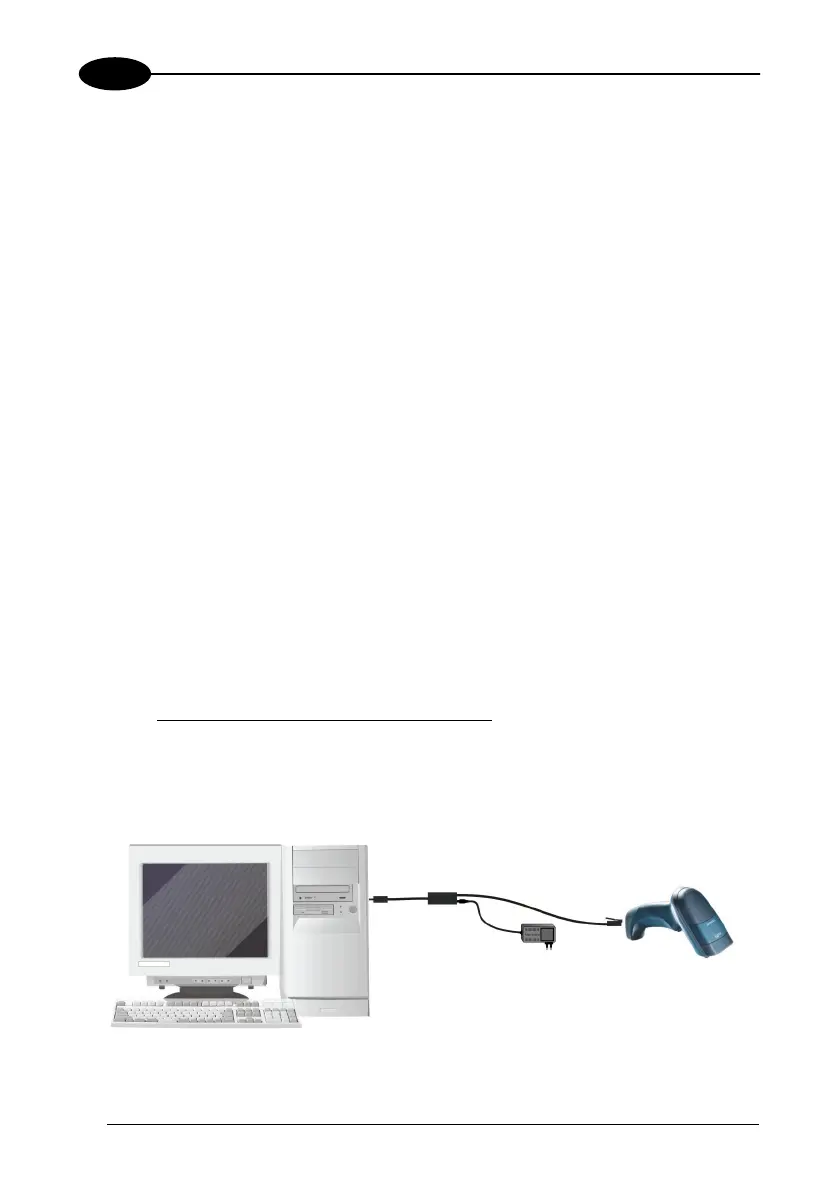

Figure 3 – USB connection
4
AUDIN - 7 bis rue de Tinqueux - 51100 Reims - France
Tel : 03.26.04.20.21 - Fax : 03.26.04.28.20 - Web : http: www.audin.fr - Email : info@audin.fr

Datalogic Lynx Specifications

General

Display diagonal	2.7 \
Display resolution	320 x 240 pixels
Display number of colors	262144 colors
Flash memory	0.512 GB
Internal memory	0.256 GB
Internal memory type	RAM
Compatible memory cards	microSD (TransFlash), microSDHC
Processor family	PXA 310
Processor frequency	0.806 GHz
Data network	HSPA+
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	2.0+EDR
Operating frequency	800, 850, 900, 1900, 2100 MHz
Security algorithms	CCX v4
Built-in camera	-
Interface	micro USB, RS-232
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Battery capacity	1800 mAh
RFID reader	No
Product color	Black
Keyboard layout	QWERTY
Keypad number of keys	46
Operating system installed	Windows Embedded Handheld 6.5

Weight and Dimensions

Depth	27 mm
Width	68 mm
Height	144 mm
Weight	270 g
