Datalogic Lynx Instruction Manual

GETTING STARTED
1
NOTE
The Lynx™ reader is a USB self-powered device.
NOTE
If you need to change the USB device interface, after having
e to disconnect and reconnect the reconfigured the reader, you hav
cable to the PC.
1.4 OPERATING THE READER
1.4.1 Aiming System
The LYNX™ reader uses an intelligent aiming system similar to those on cameras.
The aiming system creates a field of view where the code is to be positioned:

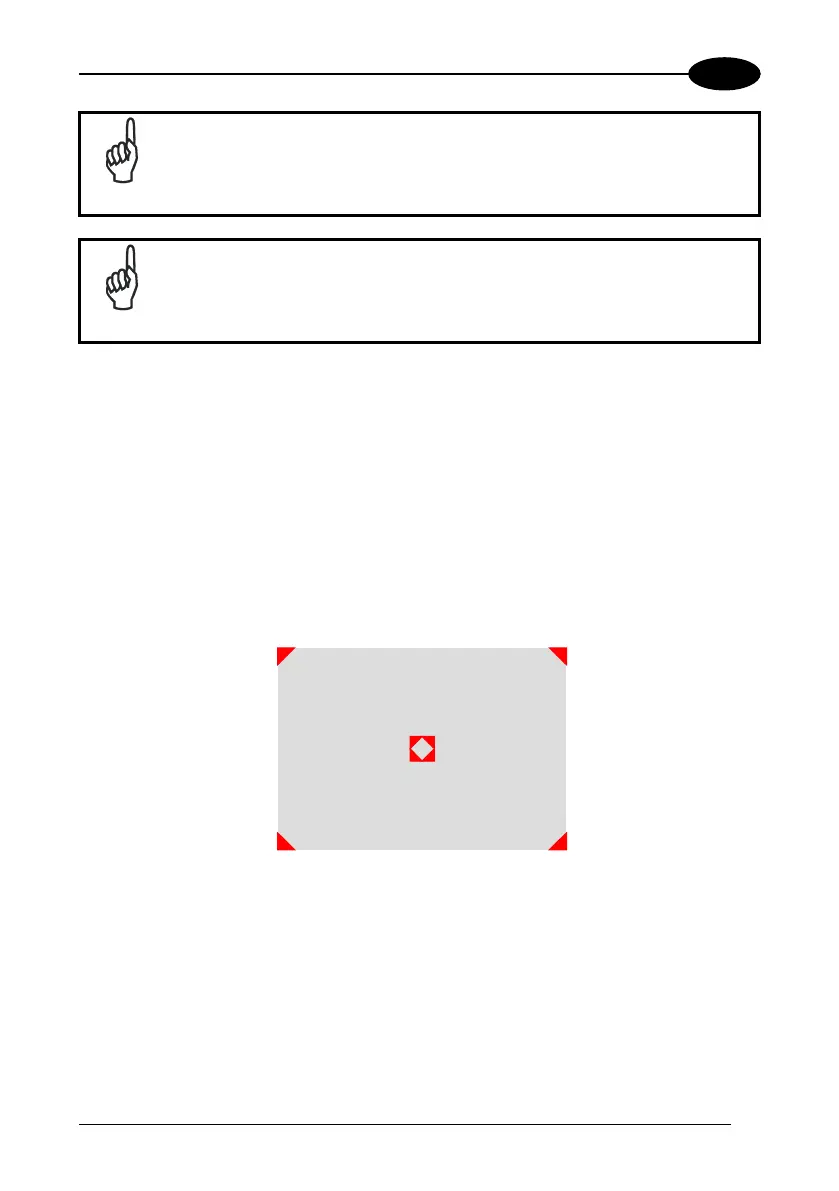

Figure 4 - Aiming System
When you pull the trigger completely a red beam illuminates the code. If the aiming
system is centered and the entire symbology is within the aiming system, you will get
a good read. The field of view changes size as you move the reader closer or farther
away from the code.
5
AUDIN - 7 bis rue de Tinqueux - 51100 Reims - France
Tel : 03.26.04.20.21 - Fax : 03.26.04.28.20 - Web : http: www.audin.fr - Email : info@audin.fr

Datalogic Lynx Specifications

General

Display diagonal	2.7 \
Display resolution	320 x 240 pixels
Display number of colors	262144 colors
Flash memory	0.512 GB
Internal memory	0.256 GB
Internal memory type	RAM
Compatible memory cards	microSD (TransFlash), microSDHC
Processor family	PXA 310
Processor frequency	0.806 GHz
Data network	HSPA+
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	2.0+EDR
Operating frequency	800, 850, 900, 1900, 2100 MHz
Security algorithms	CCX v4
Built-in camera	-
Interface	micro USB, RS-232
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Battery capacity	1800 mAh
RFID reader	No
Product color	Black
Keyboard layout	QWERTY
Keypad number of keys	46
Operating system installed	Windows Embedded Handheld 6.5

Weight and Dimensions

Depth	27 mm
Width	68 mm
Height	144 mm
Weight	270 g
