Code 39

Product Reference Guide

5-29

Code 39 — continued

Length Control

Fixed Length Decoding—

When fixed length decoding is enabled, the scanner will decode a

barcode if the label length matches one of the configurable fixed lengths.

Variable Length Decoding—

When variable length decoding is enabled, the scanner will

decode a barcode if the label length falls in the range of the configurable minimum and maxi-

mum length.

Configuring Fixed Length Decoding:

1. Scan the START/END barcode.

2. Scan the Fixed Length Decoding barcode.

3. Scan the START/END barcode.

4. Set Length 1 to the first fixed length by following the

Code 39 Length 1, Length 2 Program-

ming Instructions

below.

5. Set Length 2 to the second fixed length (or to ‘000’ if there is only one fixed length) by

following the

Code 39 Length 1, Length 2 Programming Instructions below.

Configuring Variable Length Decoding:

1. Scan the START/END barcode.

2. Scan the Variable Length Decoding barcode.

3. Scan the START/END barcode.

4. Set Length 1 to the first variable length by following the

Code 39 Length 1, Length 2 Pro-

gramming Instructions

below.

5. Set Length 2 to the second variable length by following the

Code 39 Length 1, Length 2 Pro-

gramming Instructions

below.

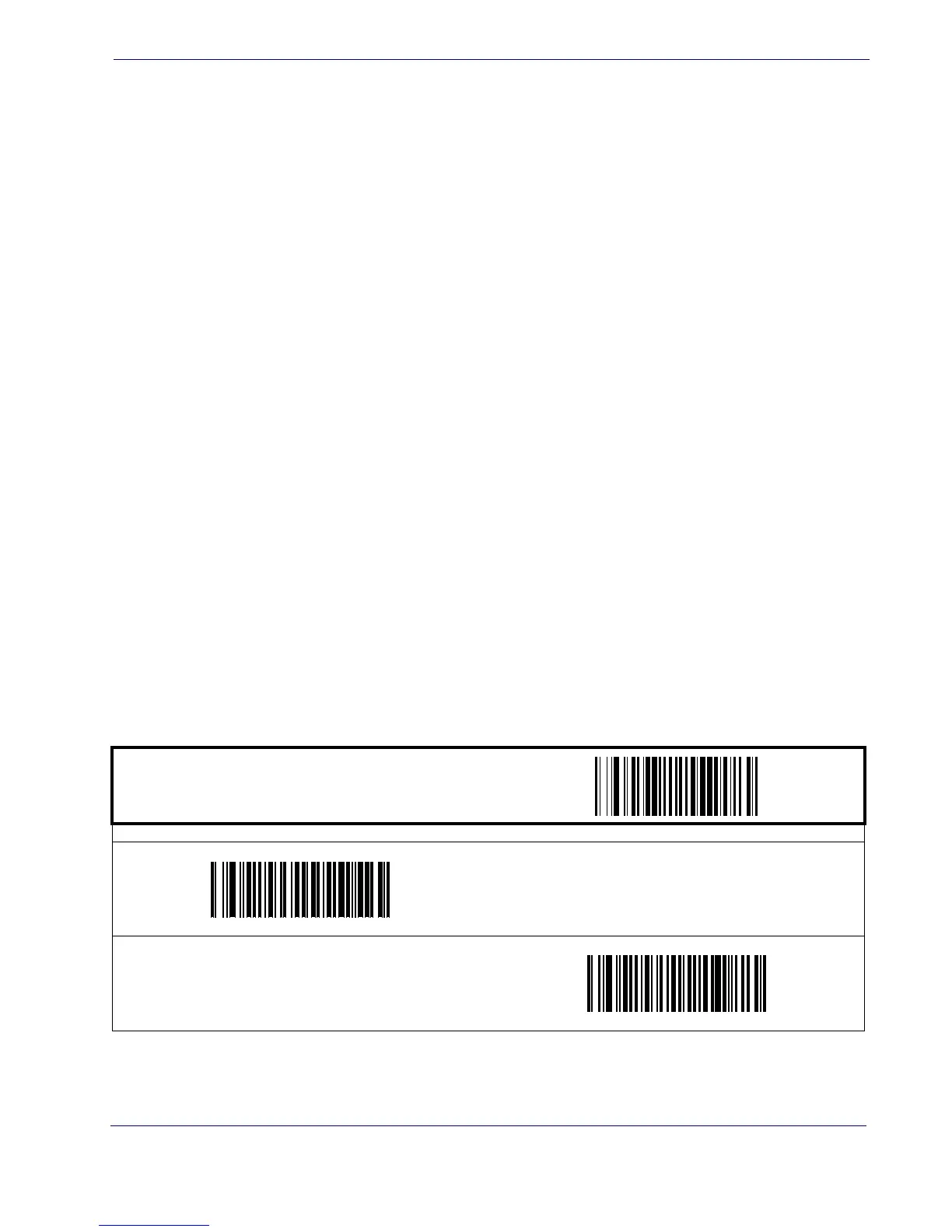

START / END

PROGRAMMING BARCODES

Variable Length Decoding

DEFAULT

Fixed Length Decoding

Other manuals for Datalogic MAGELLAN 1000I

Quick Reference Guide44 pages

Questions and Answers:

Need help?

Do you have a question about the Datalogic MAGELLAN 1000I and is the answer not in the manual?

Datalogic MAGELLAN 1000I Specifications

General

Tilt angle range	0 - 360 °
Decoding standards	1D / Linear Codes: - Autodiscriminates all standard 1D codes including GS1 DataBar linear codes 2D Codes: - Data Matrix Stacked Codes: - GS1 DataBar Expanded Stacked - GS1 DataBar Stacked - GS1 DataBar Stacked Omnidirectional - PDF417
Optical sensor resolution	752 pixels
Standard interfaces	Keyboard wedge, USB, RS-232, RS-485
Input voltage	8.0 - 14.0 V
Power consumption	400 mA
Dimensions (WxDxH)	71 x 94 x 84 mm
Maximum operating distance	0.171 m
Product color	Gray
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	5 - 55 °C
Operating relative humidity (H-H)	0 - 95 %
