Datalogic MAGELLAN 1000I User Manual

Interface Related Features
3-20 Magellan
®
1000i

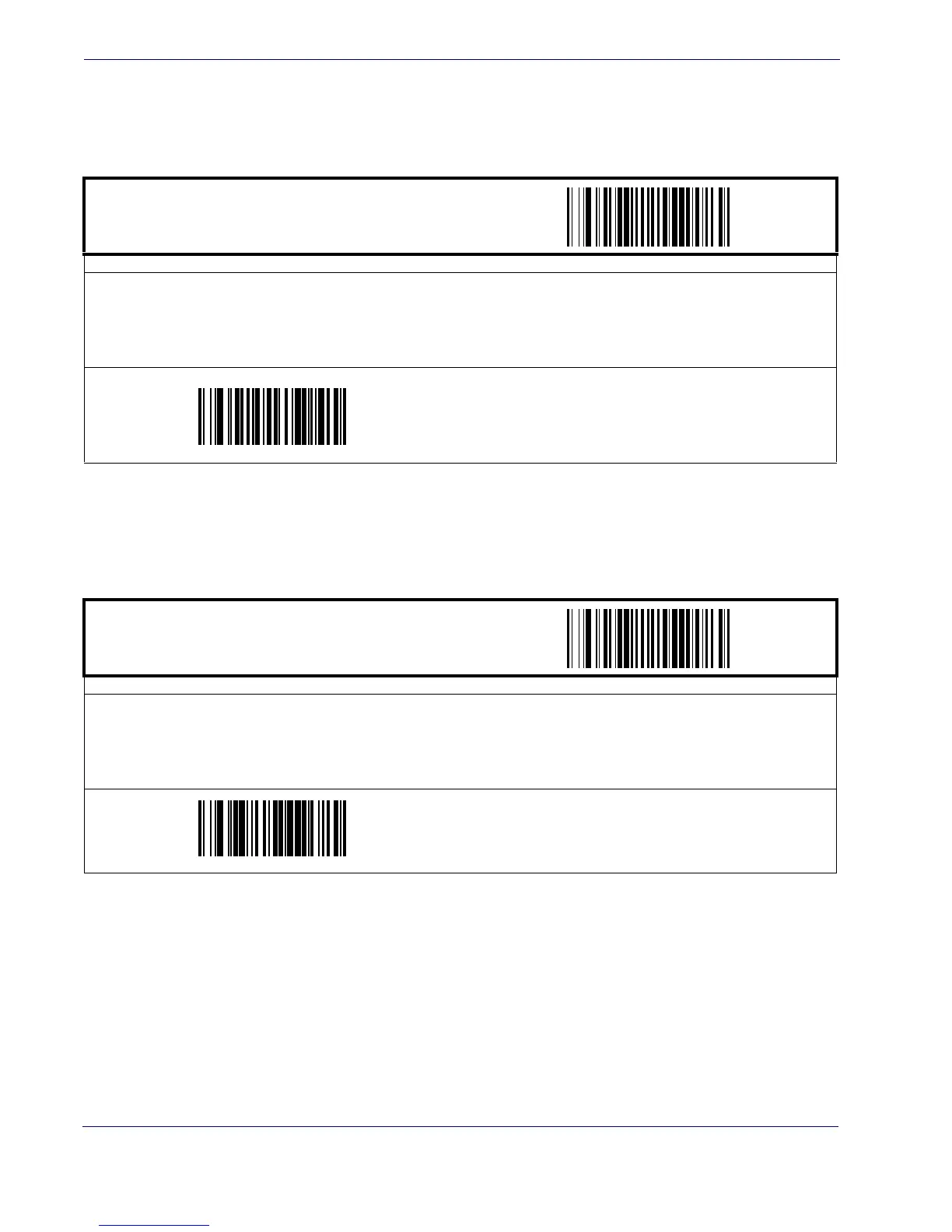

RS-232 Interface Features — cont. — cont.
ACK Character
NAK Character
START / END
PROGRAMMING BARCODES
Sets the ACK character from the set of ASCII characters or any decimal value from 000 to 255. Pad entries of less than three digits
with zeros, as in “005”. To configure this feature, scan the “START/END” barcode above to place the unit in Programming Mode, then
the “Set ACK Character,” followed by the digits from the Alphanumeric table in
Appendix C, Alpha-Numeric Pad representing your
desired character. Exit programming mode by again scanning the “START/END” barcode above.
DEFAULT SETTING FOR THIS FEATURE: 006
Set ACK Character
START / END
PROGRAMMING BARCODES
Sets the NAK character from the set of ASCII characters or any decimal value from 000 to 255. Pad entries of less than three digits
with zeros, as in “005”. To configure this feature, scan the “START/END” barcode above to place the unit in Programming Mode, then
the “Set NAK Character,” followed by the digits from the Alphanumeric table in
Appendix C, Alpha-Numeric Pad representing your
desired character. Exit programming mode by again scanning the “START/END” barcode above.
DEFAULT SETTING FOR THIS FEATURE: 021
Set NAK Character

Datalogic MAGELLAN 1000I Specifications

General

Tilt angle range	0 - 360 °
Decoding standards	1D / Linear Codes: - Autodiscriminates all standard 1D codes including GS1 DataBar linear codes 2D Codes: - Data Matrix Stacked Codes: - GS1 DataBar Expanded Stacked - GS1 DataBar Stacked - GS1 DataBar Stacked Omnidirectional - PDF417
Optical sensor resolution	752 pixels
Standard interfaces	Keyboard wedge, USB, RS-232, RS-485
Input voltage	8.0 - 14.0 V
Power consumption	400 mA
Dimensions (WxDxH)	71 x 94 x 84 mm
Maximum operating distance	0.171 m
Product color	Gray
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	5 - 55 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Weight	198.5 g
