Datalogic MAGELLAN 1000I User Manual

2D Symbologies & Advanced Decoding Features
6-8 Magellan
®
1000i
Datamatrix — continued

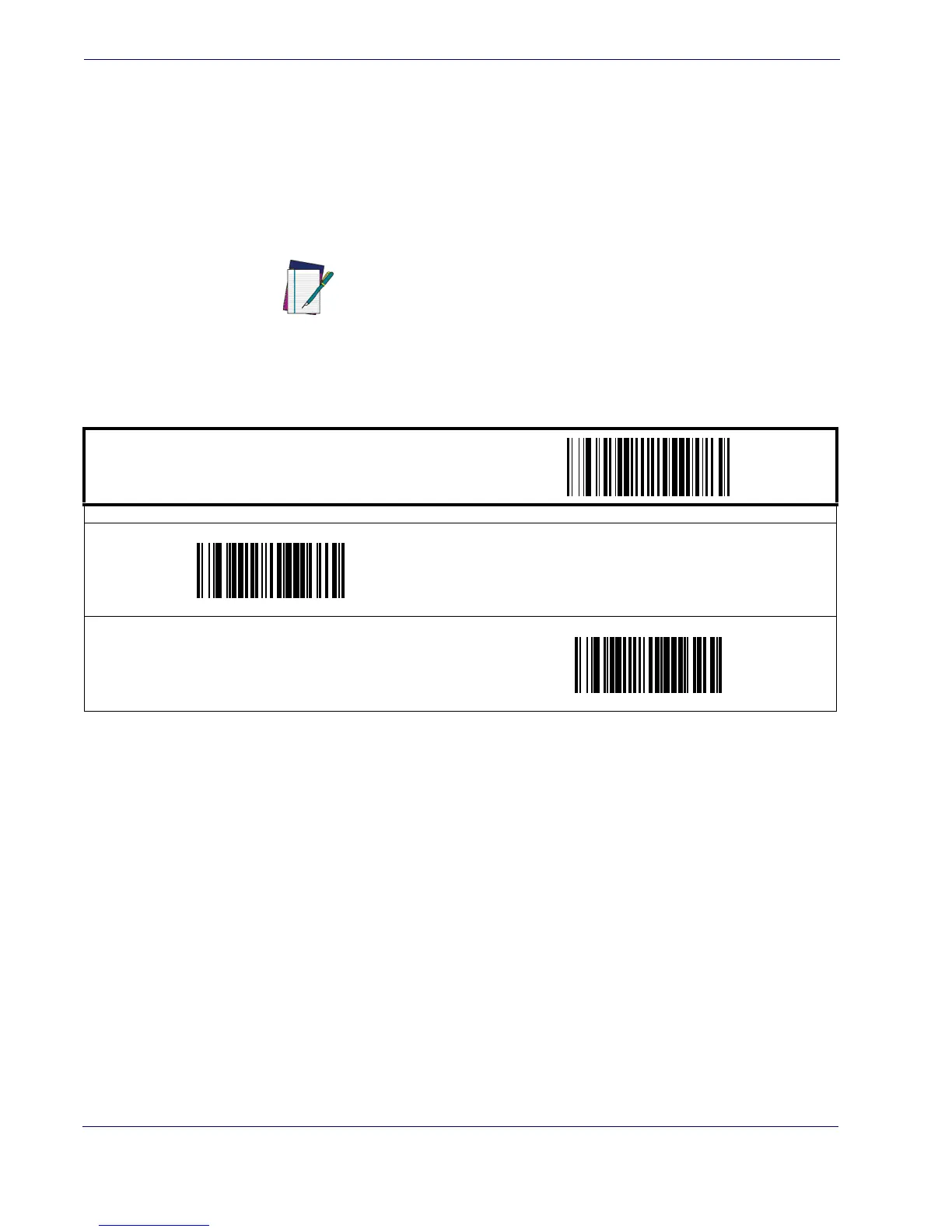

Datamatrix Length 1, Length 2 Programming Instructions
1. Scan the START barcode.
2. Scan either the Set Length 1 or Set Length 2 barcode.
3. Turn to
Alpha-Numeric Pad and scan the four hex digits representing the length in hexidec-
imal notation.
Scan the END barcode.
NOTE
For Datamatrix barcodes, only the data characters are included in the
length calculations.
START / END
PROGRAMMING BARCODES
DEFAULT SETTING FOR THIS FEATURE: 1 (0x0001)
Set Length 1
Set Length 2
DEFAULT SETTING FOR THIS FEATURE: 800 (0x0320)

Datalogic MAGELLAN 1000I Specifications

General

Tilt angle range	0 - 360 °
Decoding standards	1D / Linear Codes: - Autodiscriminates all standard 1D codes including GS1 DataBar linear codes 2D Codes: - Data Matrix Stacked Codes: - GS1 DataBar Expanded Stacked - GS1 DataBar Stacked - GS1 DataBar Stacked Omnidirectional - PDF417
Optical sensor resolution	752 pixels
Standard interfaces	Keyboard wedge, USB, RS-232, RS-485
Input voltage	8.0 - 14.0 V
Power consumption	400 mA
Dimensions (WxDxH)	71 x 94 x 84 mm
Maximum operating distance	0.171 m
Product color	Gray
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	5 - 55 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Weight	198.5 g
