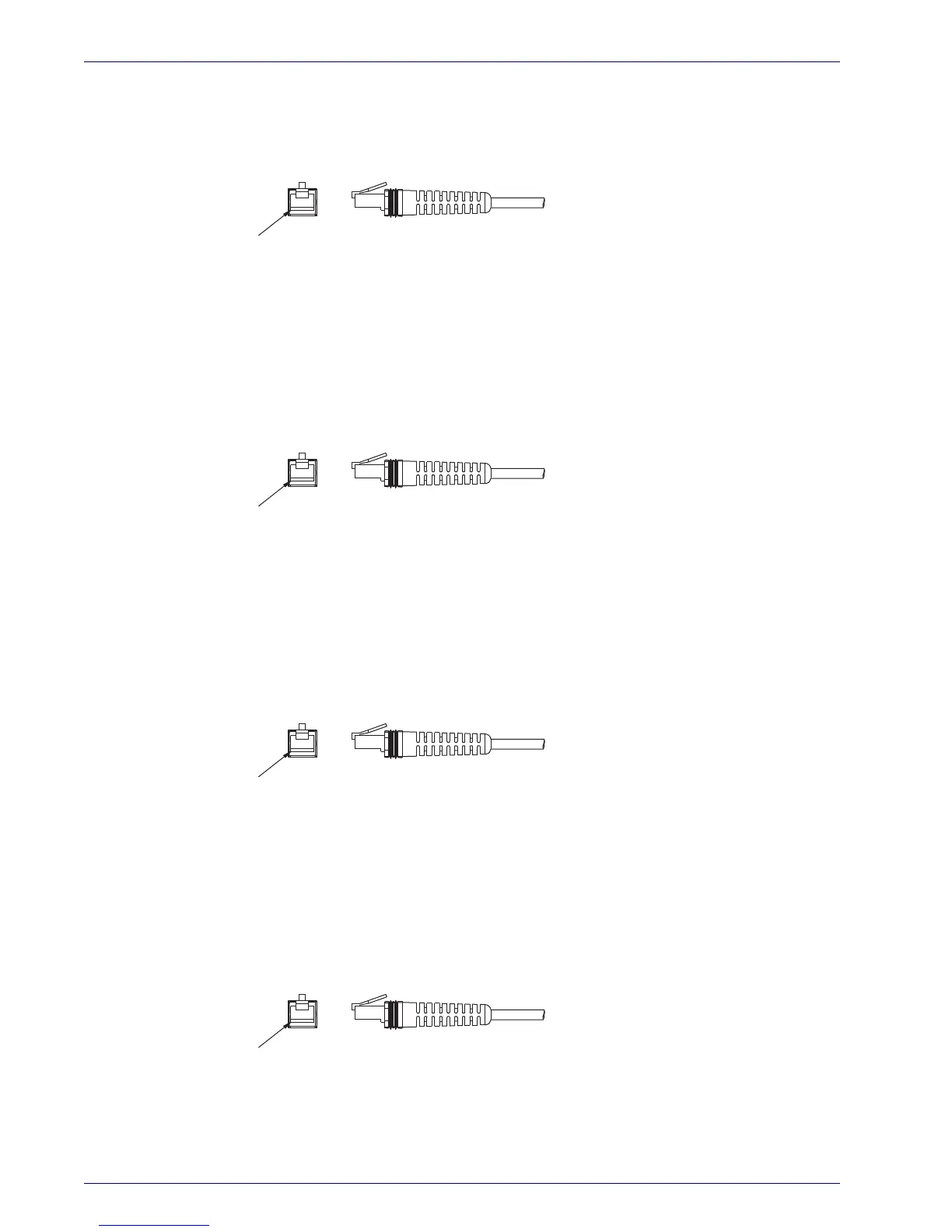

Cable Pinouts
B-2 Magellan
®
1000i
USB-OEM
USB, USB Keyboard & USB COM
Wand Emulation
Keyboard Wedge
1
2
3
4D -
5
6D +
7
8VIN
9GND
10
1
2
3
4D -
5
6D +
7
8 VBUS_VIN
9GND
10
1
2
3 WAND~
4
5
6
7
8VCC_IN
9GND
10
1
2 KB_DATA
3AT_CLK
4 KB_CLK
5
6AT_DATA
7
8VCC_IN
9GND
10
Pin 1
10 Position RJ
(Scanner End)
Pin 1
10 Position RJ
(Scanner End)
Pin 1
10 Position RJ
(Scanner End)
Pin 1
10 Position RJ
(Scanner End)
