2D Symbologies
Product Reference Guide 6-7
Datamatrix — continued
Length Control
Fixed Length Decoding— When fixed length decoding is enabled, the scanner will decode a
barcode if the label length matches one of the configurable fixed lengths.
Variable Length Decoding— When variable length decoding is enabled, the scanner will
decode a barcode if the label length falls in the range of the configurable minimum and maxi-
mum length.
Configuring Fixed Length Decoding:
1. Scan the START barcode.
2. Scan the Fixed Length Decoding barcode.
3. Scan the END barcode.
4. Set Length 1 to the first fixed length by following the Length 1, Length 2 Programming
Instructions below.
5. Set Length 2 to the second fixed length (or to ‘00’ if there is only one fixed length) by fol-
lowing the
Datamatrix Length 1, Length 2 Programming Instructions below.
Configuring Variable Length Decoding:
1. Scan the START barcode.
2. Scan the Variable Length Decoding barcode.
3. Scan the END barcode.
4. Set Length 1 to the minimum length by following the
Datamatrix Length 1, Length 2 Pro-
gramming Instructions
below.
5. Set Length 2 to the maximum length by following the
Datamatrix Length 1, Length 2 Pro-
gramming Instructions
below.

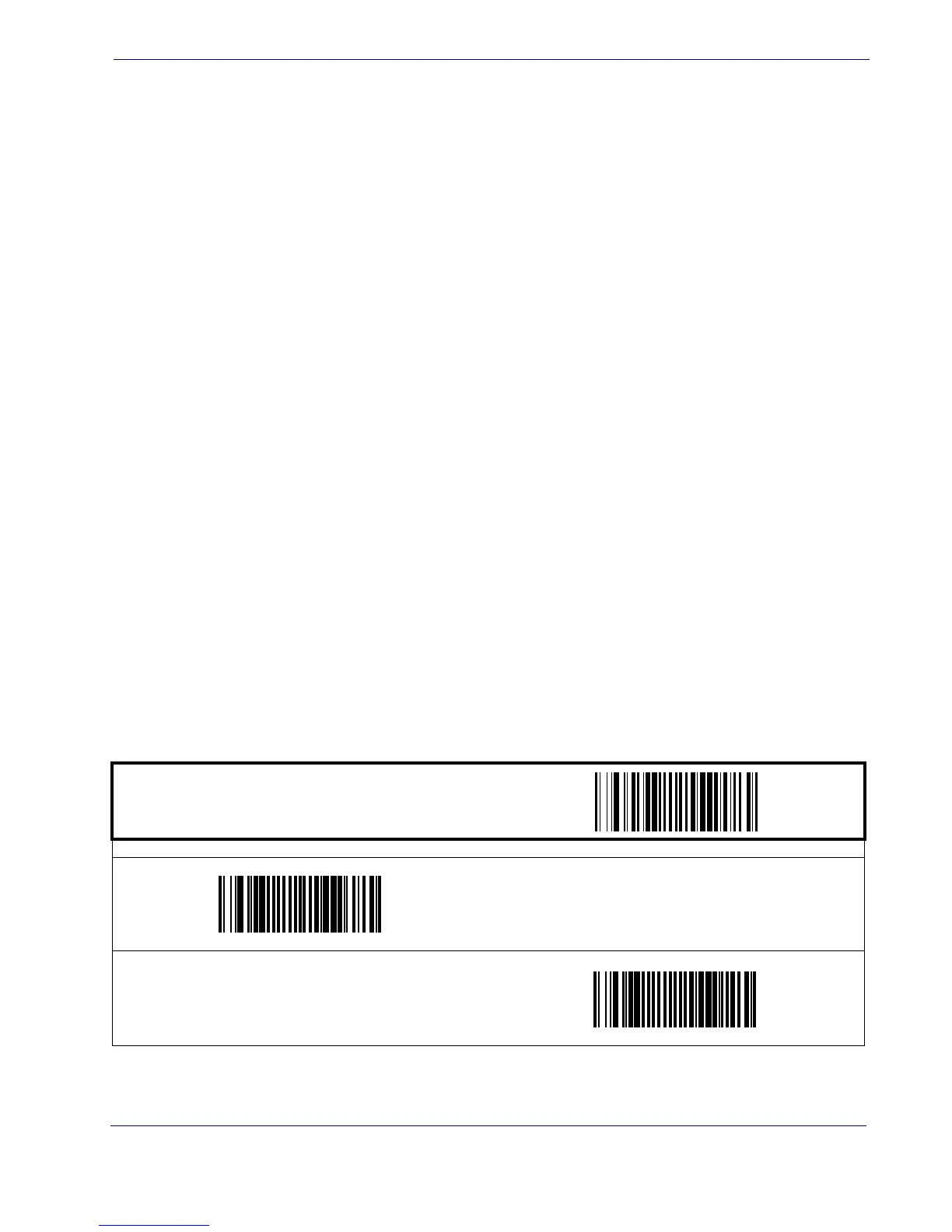

START / END
PROGRAMMING BARCODES
Variable Length Decoding
Fixed Length Decoding

Datalogic MAGELLAN 1000I Specifications

General

Tilt angle range	0 - 360 °
Decoding standards	1D / Linear Codes: - Autodiscriminates all standard 1D codes including GS1 DataBar linear codes 2D Codes: - Data Matrix Stacked Codes: - GS1 DataBar Expanded Stacked - GS1 DataBar Stacked - GS1 DataBar Stacked Omnidirectional - PDF417
Optical sensor resolution	752 pixels
Standard interfaces	Keyboard wedge, USB, RS-232, RS-485
Input voltage	8.0 - 14.0 V
Power consumption	400 mA
Dimensions (WxDxH)	71 x 94 x 84 mm
Maximum operating distance	0.171 m
Product color	Gray
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	5 - 55 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Weight	198.5 g
