2D Symbologies
The scanner supports the following 2D symbologies (barcode types): PDF 417 and Datamatrix.
Options for each symbology are included in this addendum.
Factory Defaults— for the std. RS-232 interface are indicated in bold text throughout.
PDF 417
Disable/Enable PDF 417
When disabled, the scanner will not read PDF 417 barcodes.

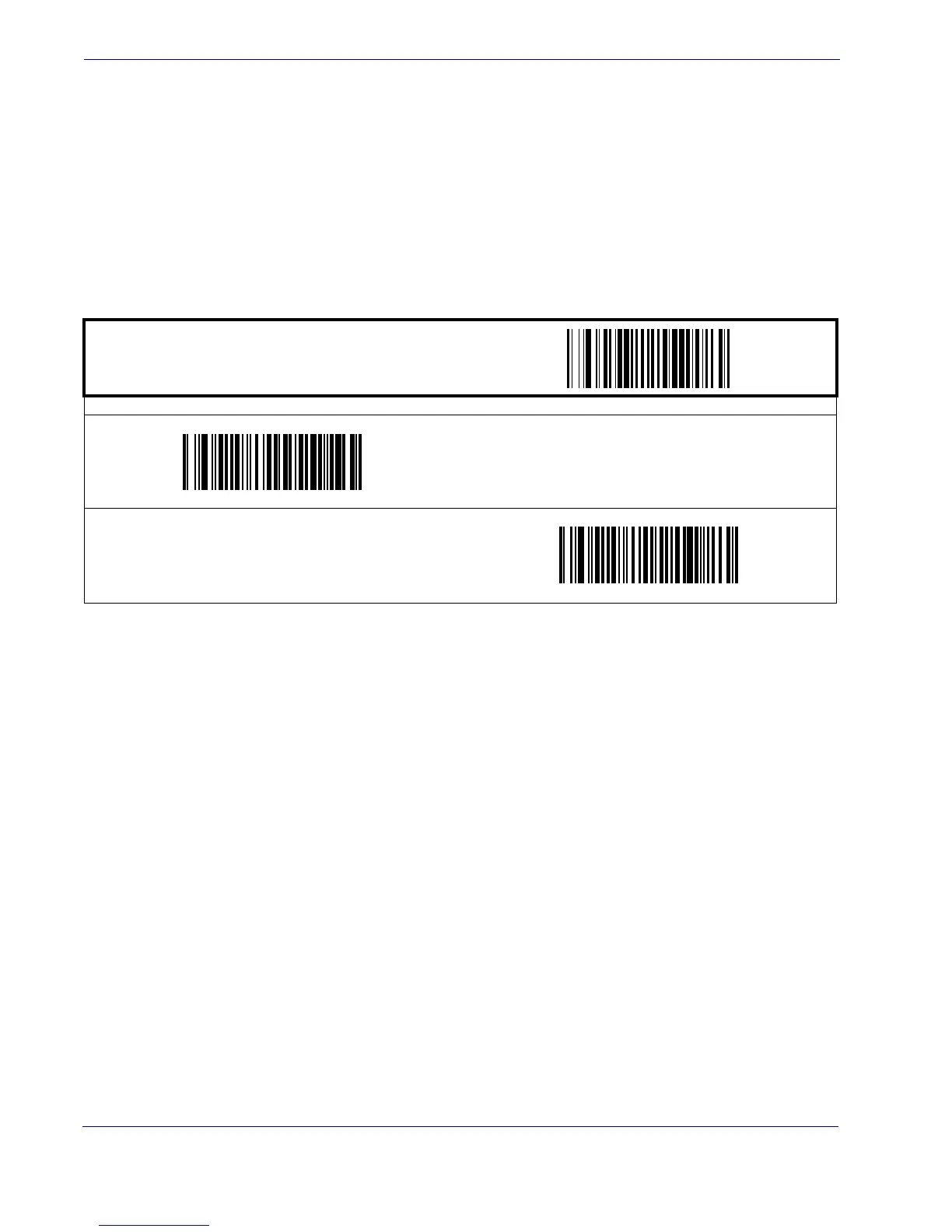

START / END
PROGRAMMING BARCODES
Disable PDF 417
Enable PDF 417

Datalogic MAGELLAN 1000I Specifications

General

Tilt angle range	0 - 360 °
Decoding standards	1D / Linear Codes: - Autodiscriminates all standard 1D codes including GS1 DataBar linear codes 2D Codes: - Data Matrix Stacked Codes: - GS1 DataBar Expanded Stacked - GS1 DataBar Stacked - GS1 DataBar Stacked Omnidirectional - PDF417
Optical sensor resolution	752 pixels
Standard interfaces	Keyboard wedge, USB, RS-232, RS-485
Input voltage	8.0 - 14.0 V
Power consumption	400 mA
Dimensions (WxDxH)	71 x 94 x 84 mm
Maximum operating distance	0.171 m
Product color	Gray
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	5 - 55 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Weight	198.5 g
