Datalogic Magellan 2200VSΩ Product Reference Guide

RS-232 Features
Product Reference Guide 5-81
RS-232 NAK Character
This feature specifies which ASCII character will be used as a NAK char-
acter.
To specify the RS-232 NAK Character:
1. Scan the SWITCH bar code.
2. Scan the bar code,
SET RS-232 NAK Character below. You’ll need to
cover any unused bar codes on this and the facing page to ensure the
scanner reads only the bar code you intend to scan.
3. Scan the appropriate digits from the keypad in
Appendix C that rep-
resent the hex designation for the desired character. A table contain-
ing the
ASCII Character Set and their corresponding Hex Values is
available in the inside back cover of this manual. ASCII parameters
must be input by scanning a pair of hexadecimal digits for the
desired character. For example, if ASCII “A” were the desired NAK
character, you would scan the digits “4”, then “1” (the ASCII corre-
sponding hex value).
4. The scanner will automatically exit Programming Mode when the
appropriate amount of digits/characters have been scanned.

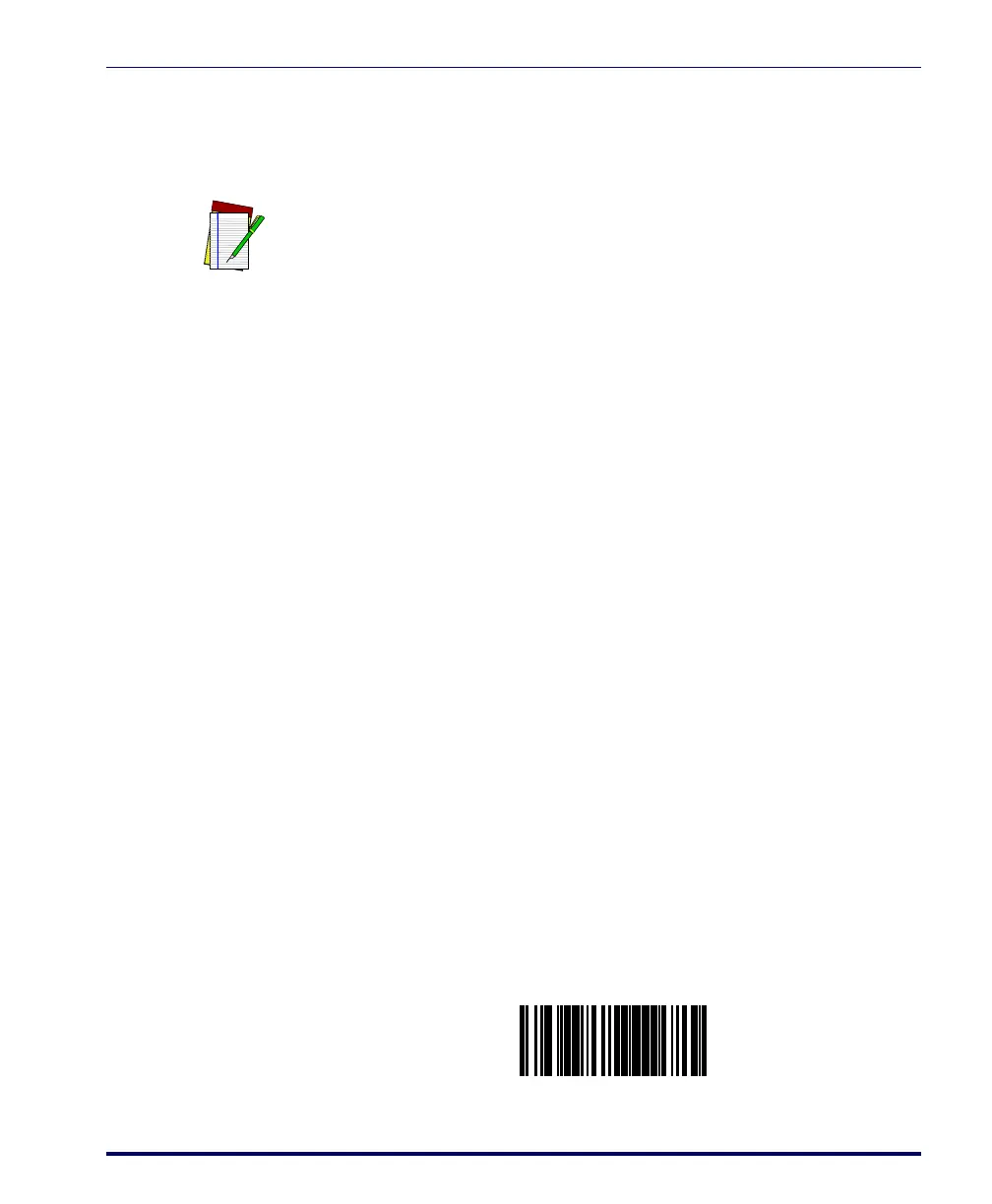

SET RS-232 NAK Character
NOTE
DO NOT set this feature to use previously defined characters such
as XON, XOFF or host commands as this will conflict with normal
operation of these characters. 8-bit data is not recognized when the
feature, RS-232 Number of Data Bits, is set to 7 data bits.
