Datalogic Magellan 2200VSΩ Product Reference Guide

Programming
5-96 Magellan
TM
2200VS and 2300HS
Set Single Cable RS-232 STX Character
This feature selects the STX character.
To specify the STX Character:
1. Scan the SWITCH bar code.
2. Scan the bar code,
SET SINGLE CABLE RS-232 STX CHARACTER
below. You’ll need to cover any unused bar codes on this and the fac-
ing page to ensure the scanner reads only the bar code you intend to
scan.
3. Scan the appropriate characters/digits from the keypad in
Appendix
C
that represent the decimal designation for the desired character. A
table containing the
ASCII Character Set and their corresponding
decimal values is available in the inside back cover of this manual.
ASCII parameters must be input by scanning decimal digits for each
character. Pad all numbers with leading zeroes to yield a three-digit
entry (001-127). Thus, to set a single character value of A, bar codes
containing the digits ‘0’, ‘6’ and ‘5’ must be scanned. The selectable
range for this option is any decimal value from 001 to 127.
4. The scanner will automatically exit Programming Mode when the
appropriate amount of digits have been scanned.

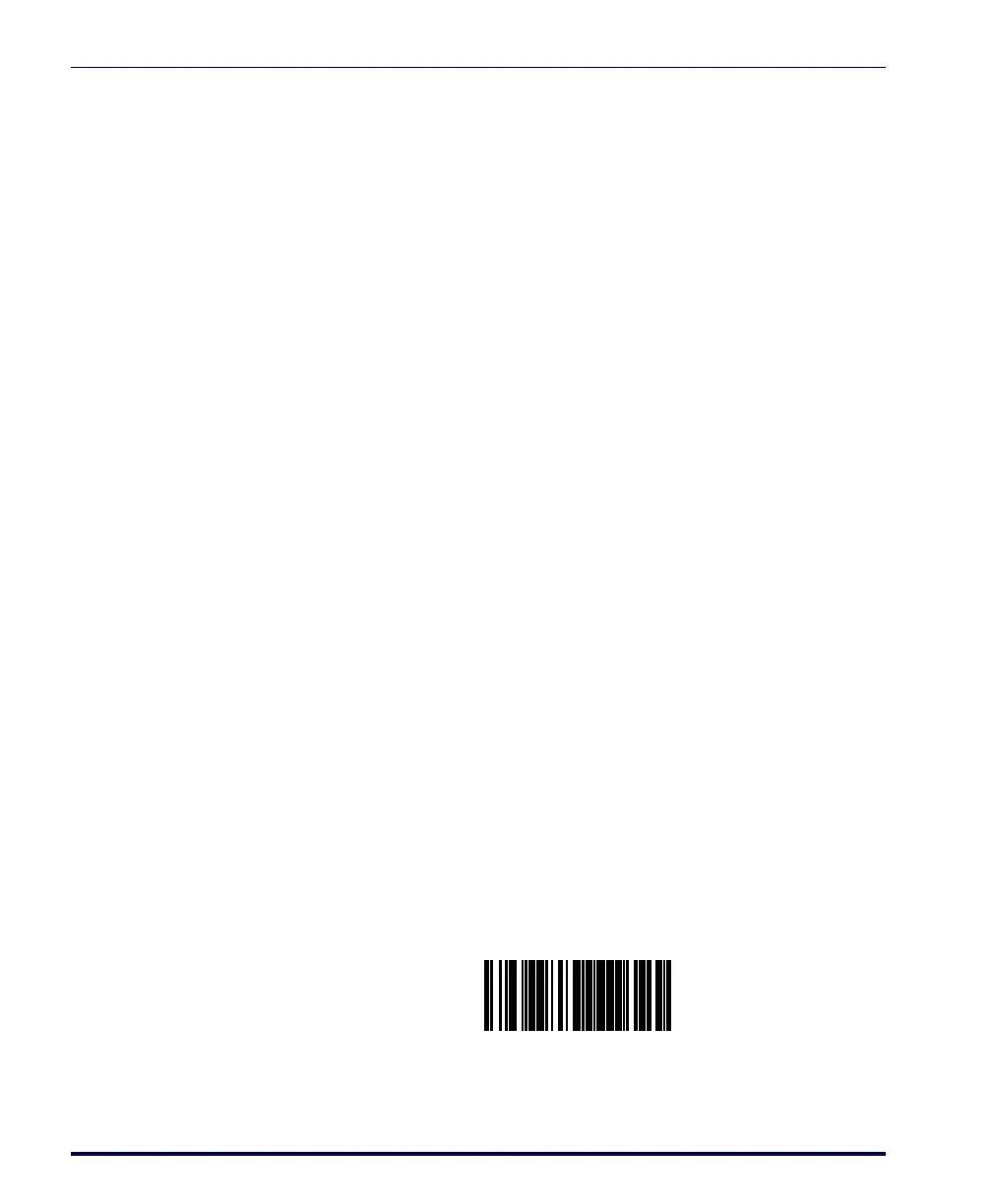

SET SINGLE CABLE RS-232 STX CHARACTER
