Datalogic Magellan 2200VSΩ Product Reference Guide

Programming
5-34 Magellan
TM
2200VS and 2300HS
Aux Port Mode
Selects the usage for the scanner’s optional auxilliary port. The choices
listed below are mutually exclusive (only one option can be active at a
time).
• Disabled — Port is inactive
• External Handheld Input — Supports Datalogic
®
handheld scanners
(QuickScan 1000, QuickScan 6000, PowerScan) as well as other
models such as the Symbol
®
HotShot. Call your dealer for more
information about supported devices.
• PIR — (Productivity Index Reporting) allows the scanner to provide
information to an external computer indicating how easy the label
was to read.
To set this feature:
1. Scan the SWITCH bar code.
2. Scan your selection from the bar codes below. You’ll need to cover
any unused bar codes on this and the facing page to ensure that the
scanner reads only the bar code you intend to scan.
3. Complete the programming sequence by scanning the SWITCH
bar code.

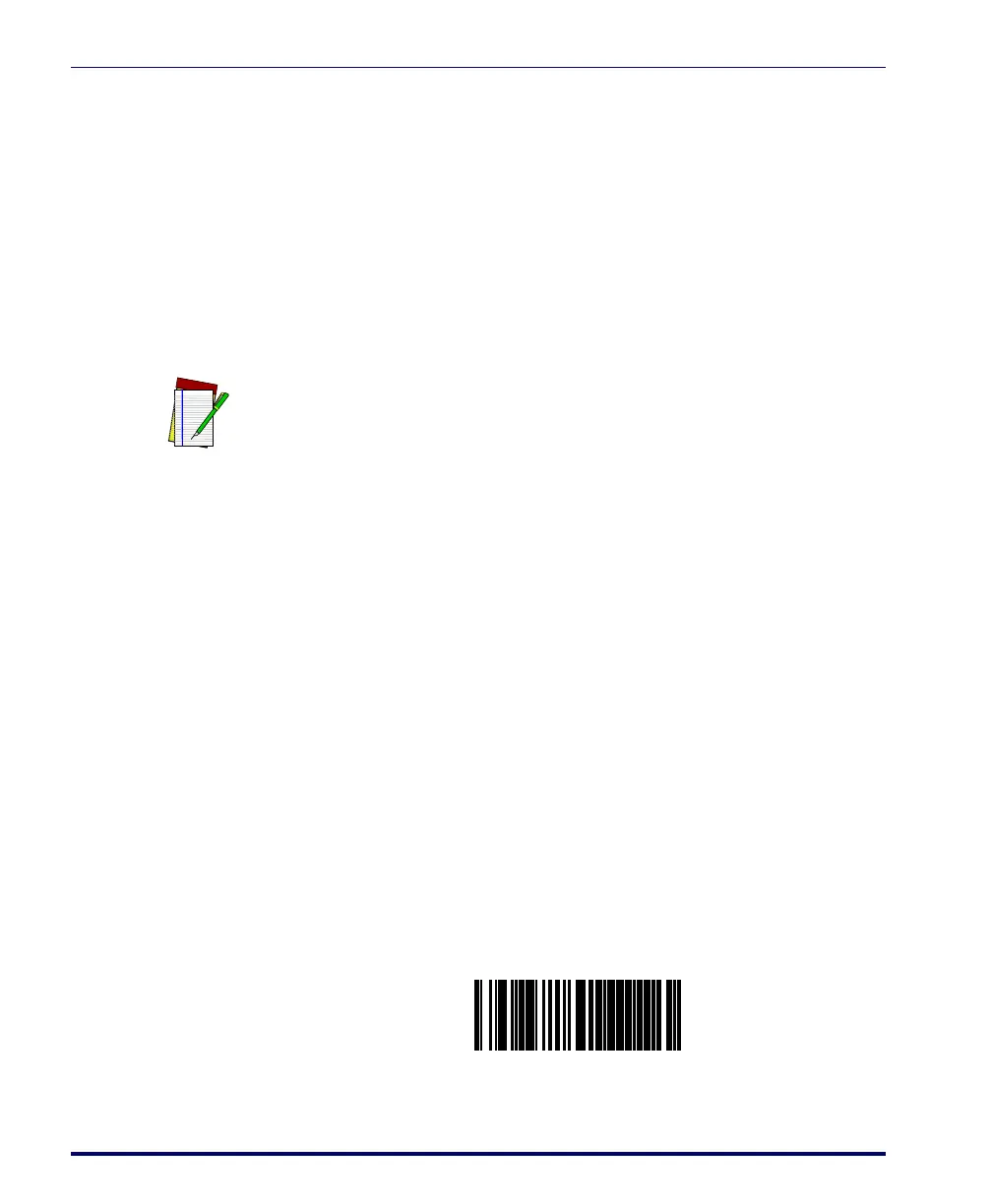

AUX PORT MODE = DISABLE
NOTE
Cable pinout information for the Aux Port is provided in Appendix
B of this manual. A connected handheld scanner must be config-
ured to transmit data as outlined in Appendix F.
