Introduction
1-4 Magellan
TM
2200VS and 2300HS
Connectors
The appearance of the connector panel will vary depending upon the fac-
tory options purchased with your model. Reference
Figure 1-2.

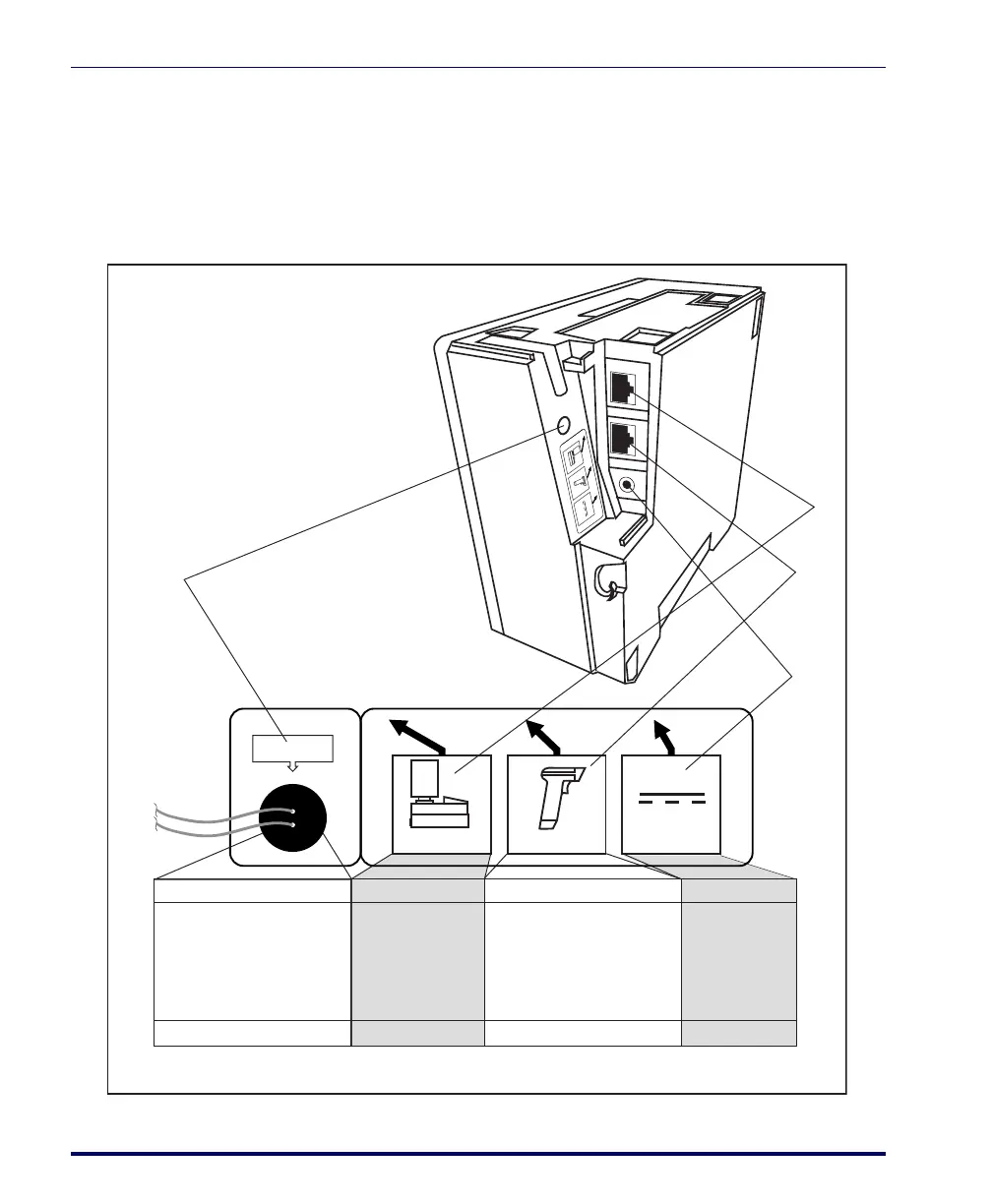

Figure 1-2. Connector Panel
POS TERMINAL AUXILIARY PORT POWER
Connection to this port is Optional
· DC Brick Input· Label Data
· Application Download
(where appropriate)
· Test Port
· On Screen
Programming (OSP)
· Application Download
· RS-232 Handheld Scanner Input
· Auxiliary RS-232 Label Data Output
· EAS interlock
EAS Connection
Connection to this port is Optional
· Electronic Article Surveillance
Connection
Power
EAS Opening
Aux. Port
Scanner Host
Power
Aux. Port
Scanner Host
