Datalogic MAGELLAN 8500 User Manual

2-22 Magellan
®
8500 Scanner

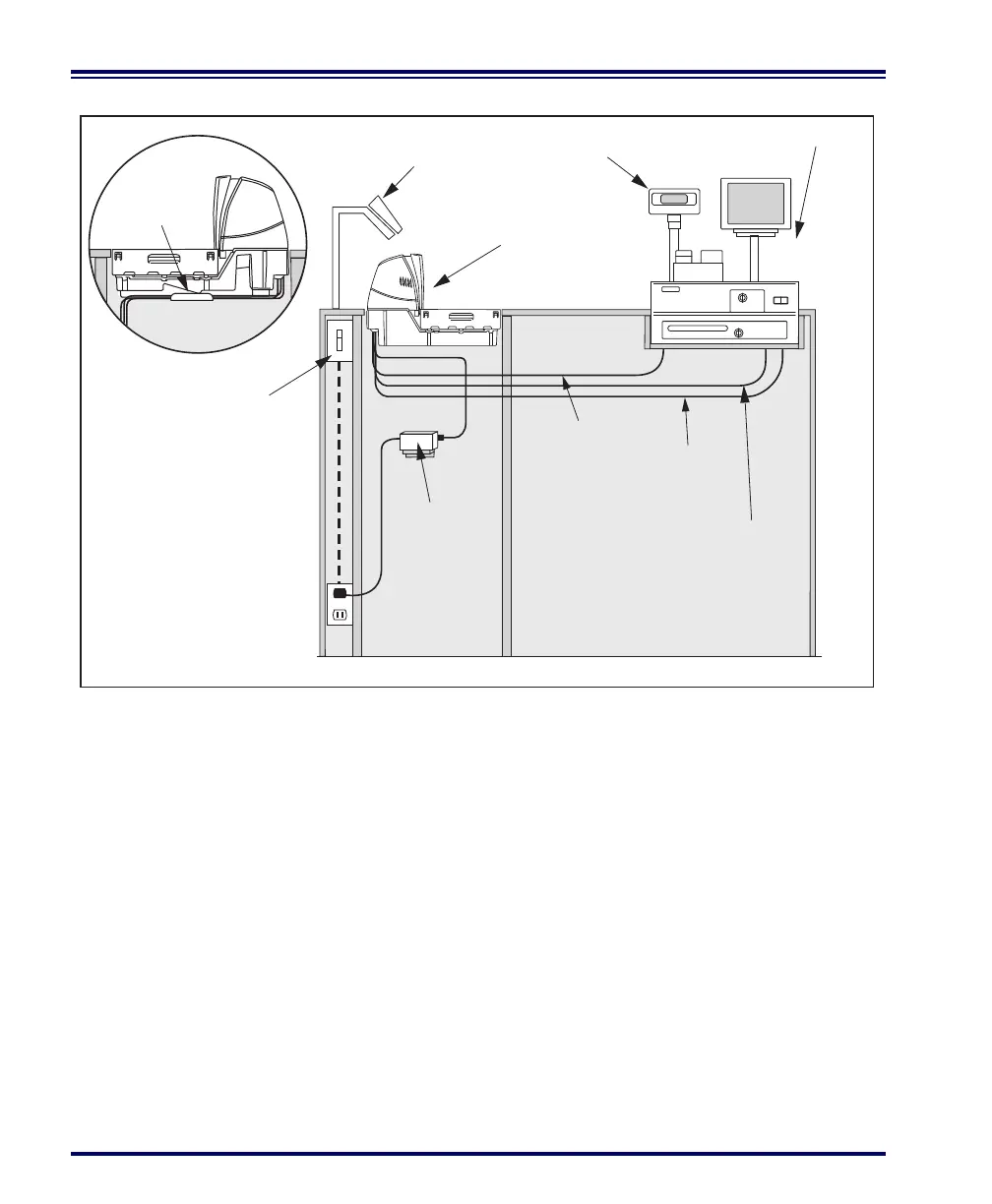

Figure 2-10. Cable Routing
Scanner
AC Power
Switch
(recommended)
AC/DC
Power
Supply
Scanner
Interface
Cable
Scale
Interface
Cable
(Scanner/Scale)
Remote Scale
Display Cable
(optional
Scanner/Scale)
POS Terminal, Printer &
Cash Drawer
Remote
Display
Keyboard
Alternate
Cable
Routing
