Datalogic MAGELLAN 8500 User Manual

Product Reference Guide 3-11
Vertical Scan Window Replacement
The Vertical Scan Window enclosed in the All Weighs™ Platter is a
replaceable part. Follow these instructions to remove and replace the win-
dow:
To remove the Vertical Scan Window:
1. Grasp the platter as shown in Figure 3-3 and gently lift it from
the scanner.

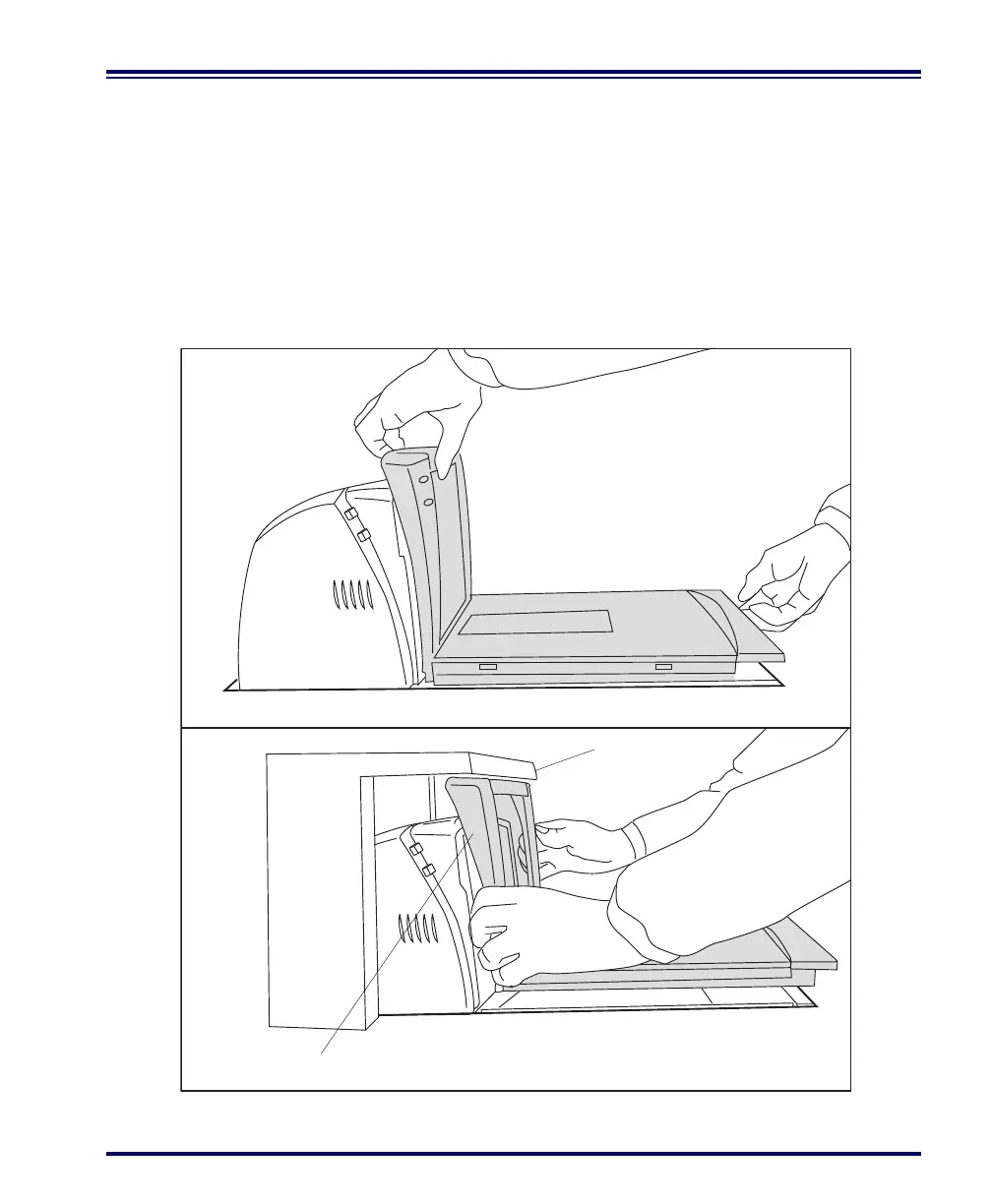

Figure 3-3. Platter Removal
Vertical Bezel
Obstruction
a
b
OR
