2-30 Magellan
®
8500 Scanner
Installation
1. Make sure that all cables are firmly attached (except that the AC/
DC power supply should not be connected to the AC outlet yet).
2. Remove the All Weighsâ„¢ Platter to gain access to the lift han-
dles. Grasp the platter as shown in Figure 2-18 and gently lift it
from the scanner. If the top edge of the platter is blocked, you
may find it easier to grasp the platter vertical bezel as shown in
Figure 2-18b.

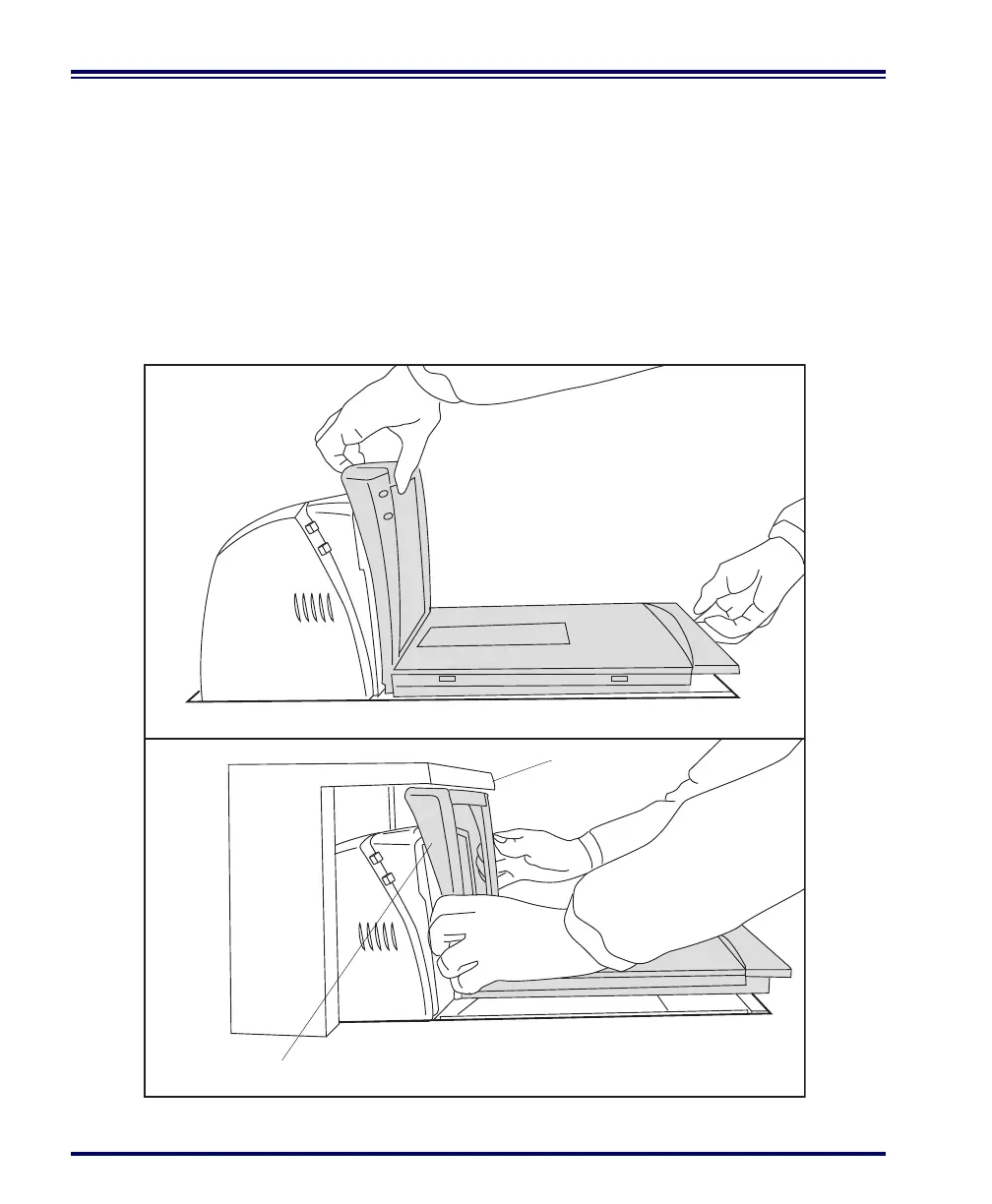

Figure 2-18. Removing the All Weighsâ„¢ Platter
Vertical Bezel
Obstruction
a
b
OR
