Datalogic Matrix 210 Quick Reference Guide

MATRIX 210™ QUICK GUIDE
11
2. When mounting the Matrix 210™ take into consideration these three ideal label position angles: Pitch or Skew 10° to 20° and Tilt
0°, although the reader can read a code at any tilt angle.
P
S
Assure at least 10° Minimize Minimize

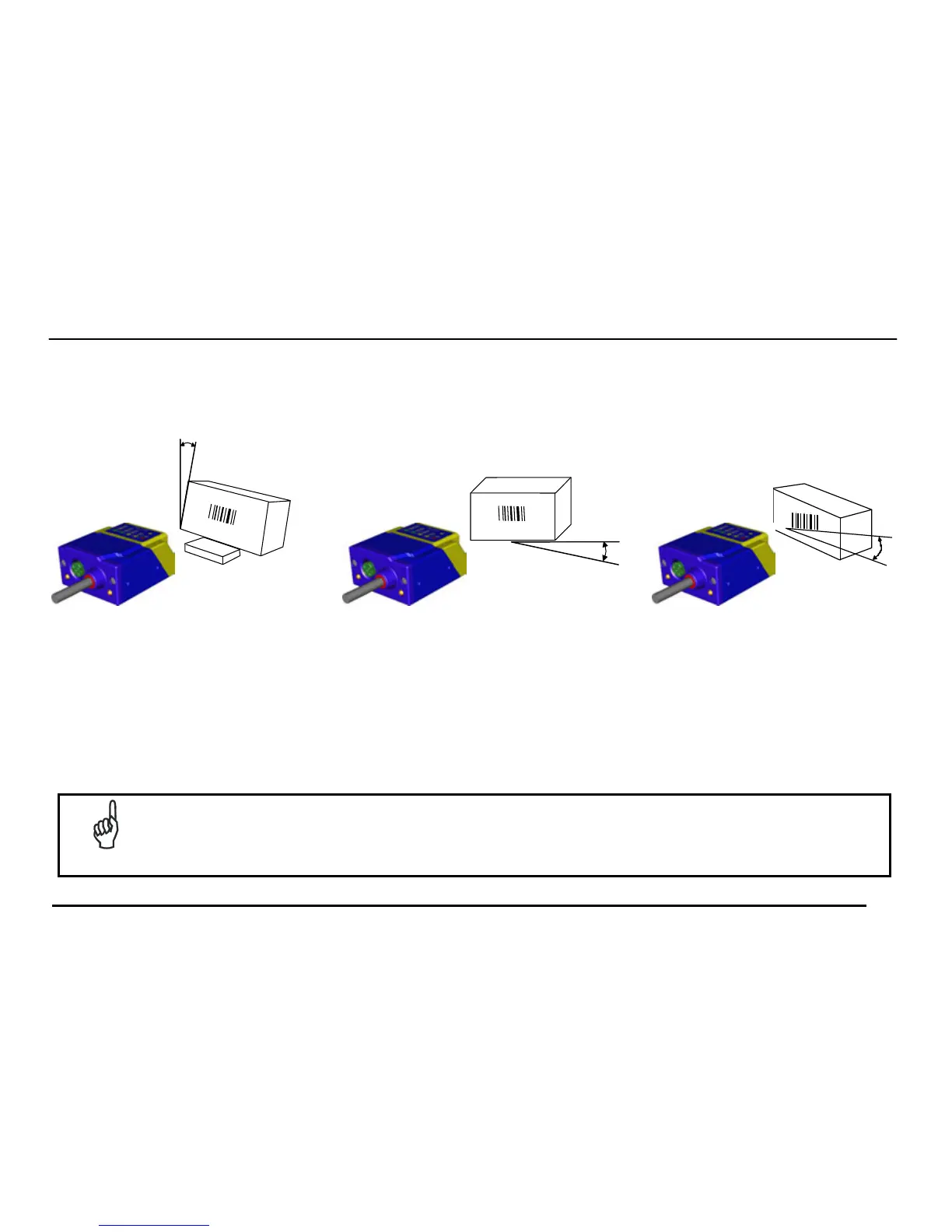

Figure 6 – Pitch, Skew and Tilt Angles
3. Refer to the Reading Features table in the Appendix of this Quick Reference Guide to determine the distance your reader
should be positioned at.
NOTE
Rapid Configuration of the Matrix 210™ reader can be made either through the X-PRESS™ interface (steps
3-4) which requires no PC connection, or by using the VisiSet™ Setup Wizard (steps 5-6). Select the
procedure according to your needs.
