Datalogic Matrix 210 Quick Reference Guide

MATRIX 210™ QUICK GUIDE
21
STEP 7 – TEST MODE
Use a code suitable to your application to test the reading performance of the system. Alternatively, you can use the Datalogic
1D/2D Test Chart (Code 39, Data Matrix ECC 200).
1. Enter the Test function by pressing and holding the X-PRESS™ push button until the Test LED is on.
2. Release the button to enter the Test function.
Once entered, the Bar Graph on the five LEDs is activated and if the reader starts reading codes the Bar-Graph shows the
Good Read Rate. In case of no read condition, only the STATUS LED is on and blinks.
green
green
yellow
yellow
red
The Bar Graph has the following meaning:
≥
95%
≥
75%
≥
60%
≥
40%
≥
20%

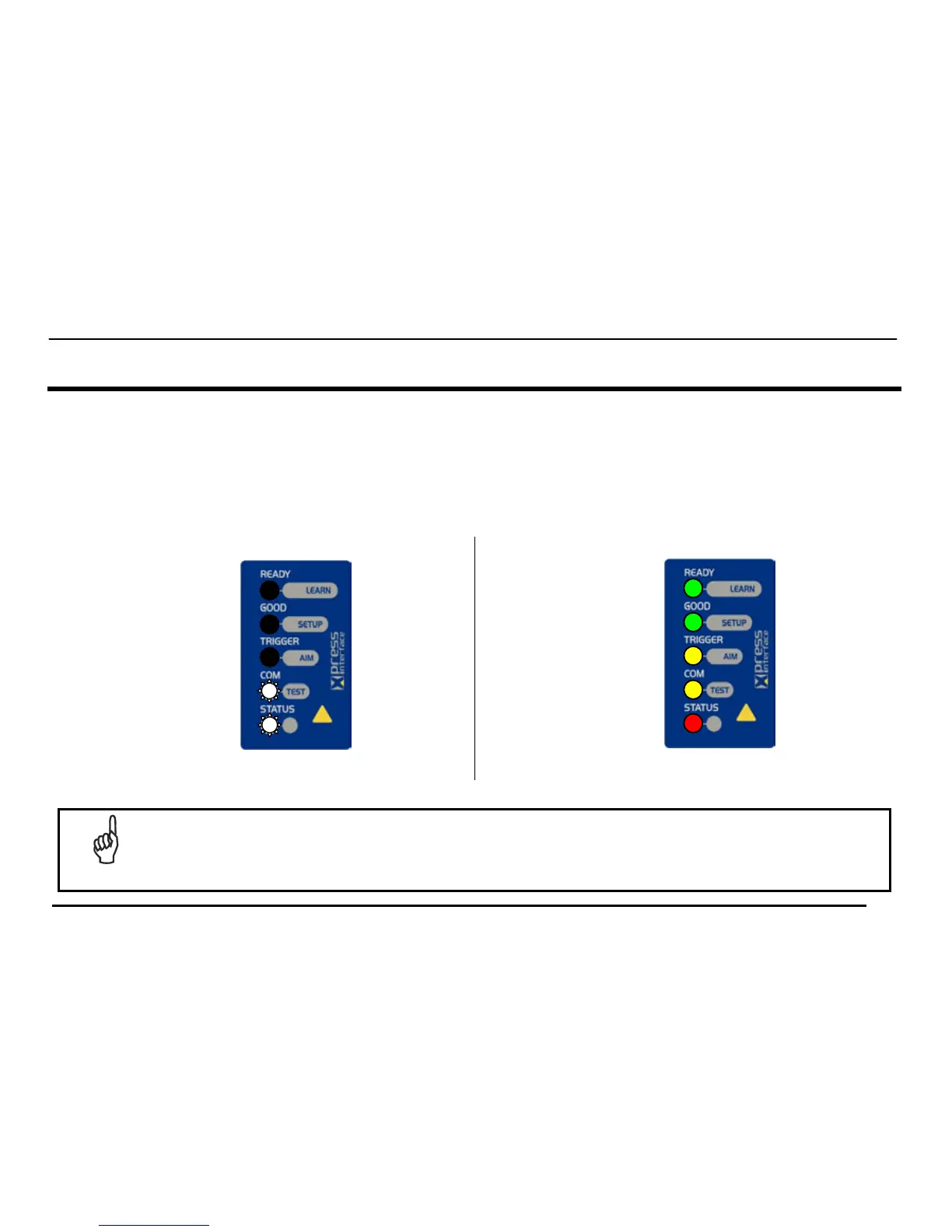

Figure 13 - X-PRESS™ Interface: Test Function Figure 14 – Test Bar Graph
3. To exit the Test, press the X-PRESS™ push button once.
NOTE
By default, the Test exits automatically after three minutes.
