Setting Up the Reader
Product Reference Guide 5
3. After the cables are plugged in, reinsert the Cable Stopper.
4. Connect the Base Station power adapter to an AC wall outlet.

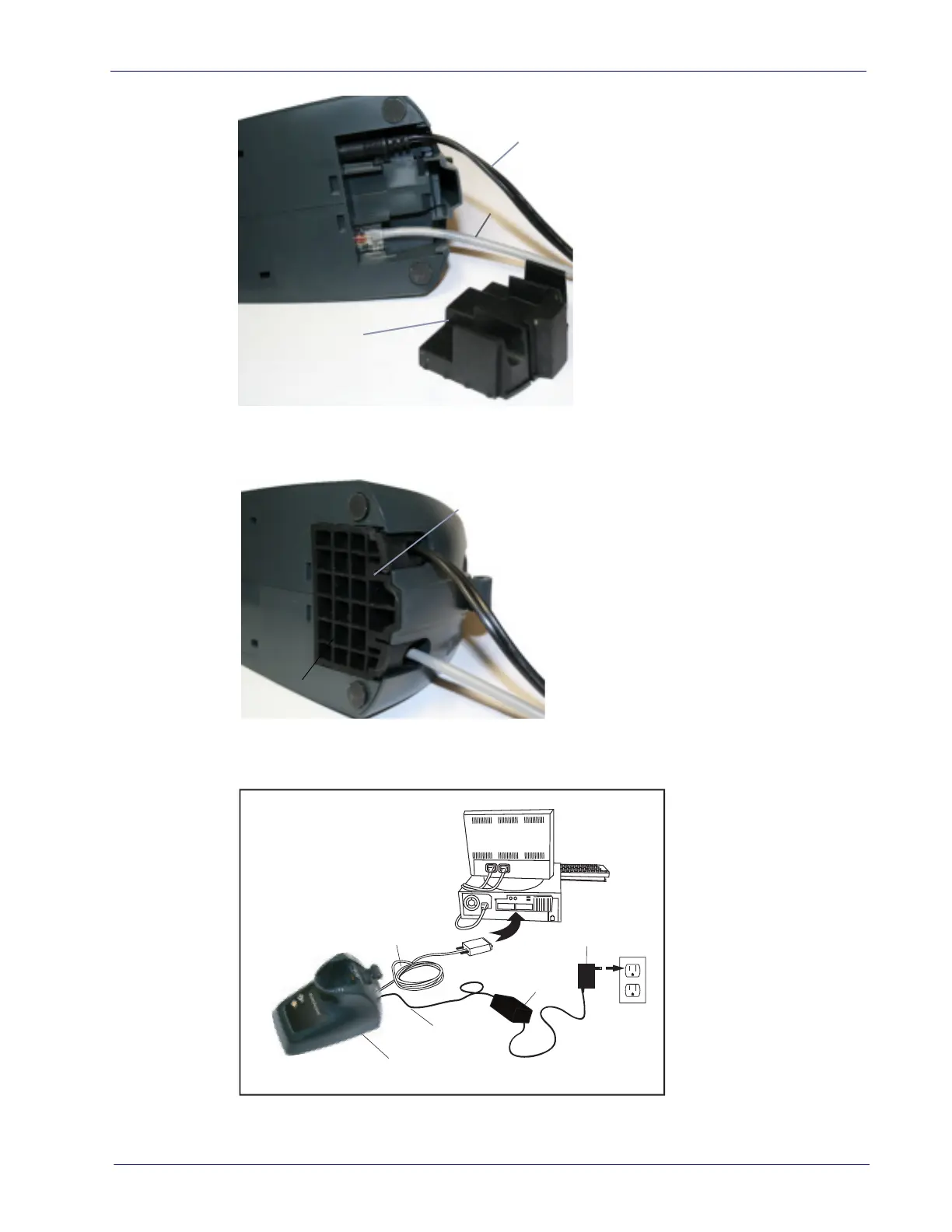

Figure 1. Connecting the Base Station
Cable Stopper
Power Cable
I/F Cable
Cable Stopper
reinserted
Base
Station
I/F Cable
AC/DC
Adapter
DC Power
Cord
Wall plug
Connector
