Setting Up the Reader
Product Reference Guide
7

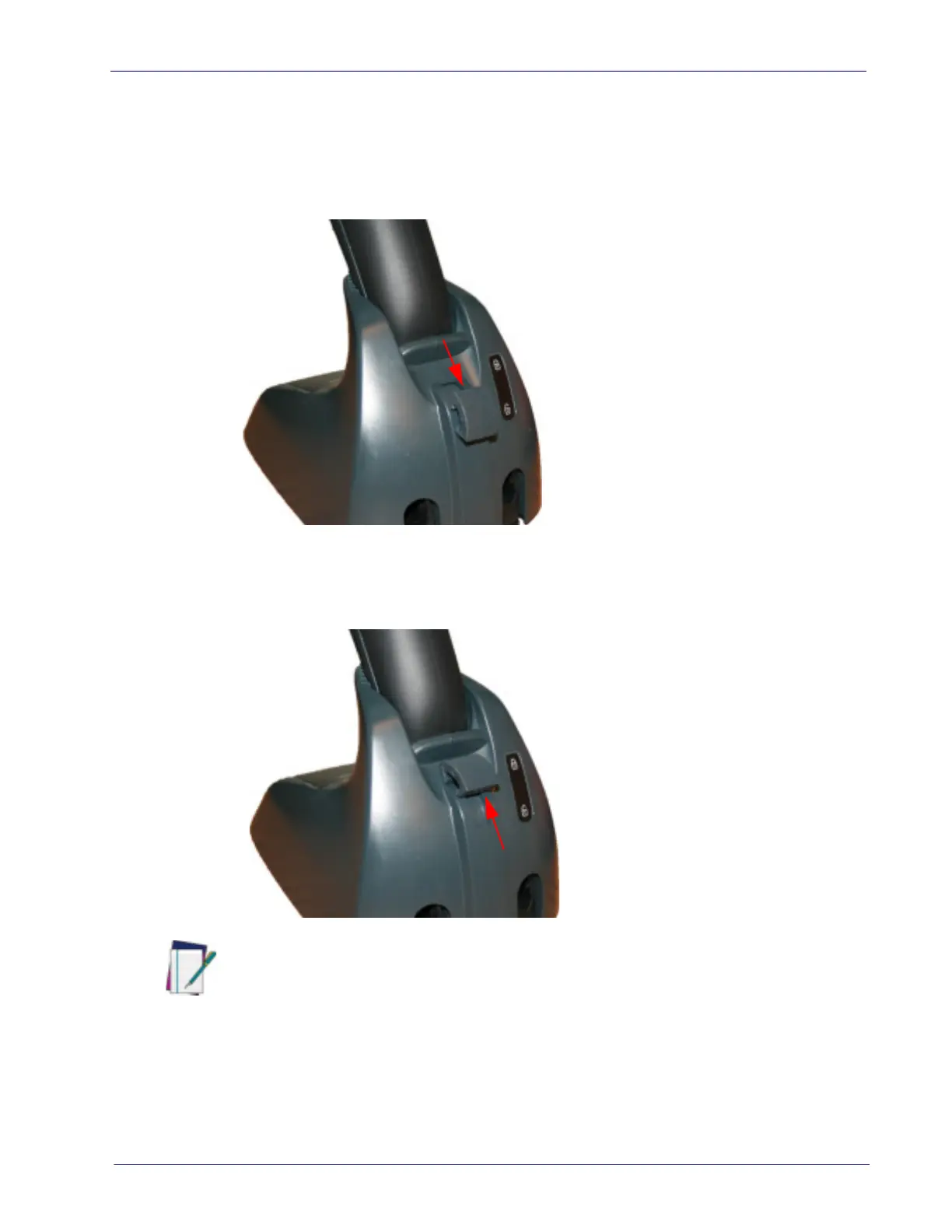

To Lock the Reader in the Base
1. Insert the Reader into the Base. The lock lever rests in its natural disen-
gaged position toward the bottom of the Base.
Figure 3. Lock lever disengaged
2. Engage the locking mechanism by pushing up the lever as far as it will go.
Figure 4. Lever in locked position
NOTE
It is good practice to put the reader in the locked condition at the end of the working shift, or
when not in use for an extended period of time. This will ensure that the scanner is fully
seated for complete battery recharge.
