Datamax E-Class Mark III User Manual

34 Chapter 4 – Maintenance Adjustments
4
4
4
.
.
.
6
6
6
P
P
P
l
l
l
a
a
a
t
t
t
e
e
e
n
n
n
R
R
R
o
o
o
l
l
l
l
l
l
e
e
e
r
r
r
R
R
R
e
e
e
p
p
p
l
l
l
a
a
a
c
c
c
e
e
e
m
m
m
e
e
e
n
n
n
t
t
t
The Platen Roller can be easily removed for cleaning, replacement, or clearing media jams.
1) Turn OFF the printer and remove the media if installed.
2) Lift up on the two Platen Roller Tabs.
312


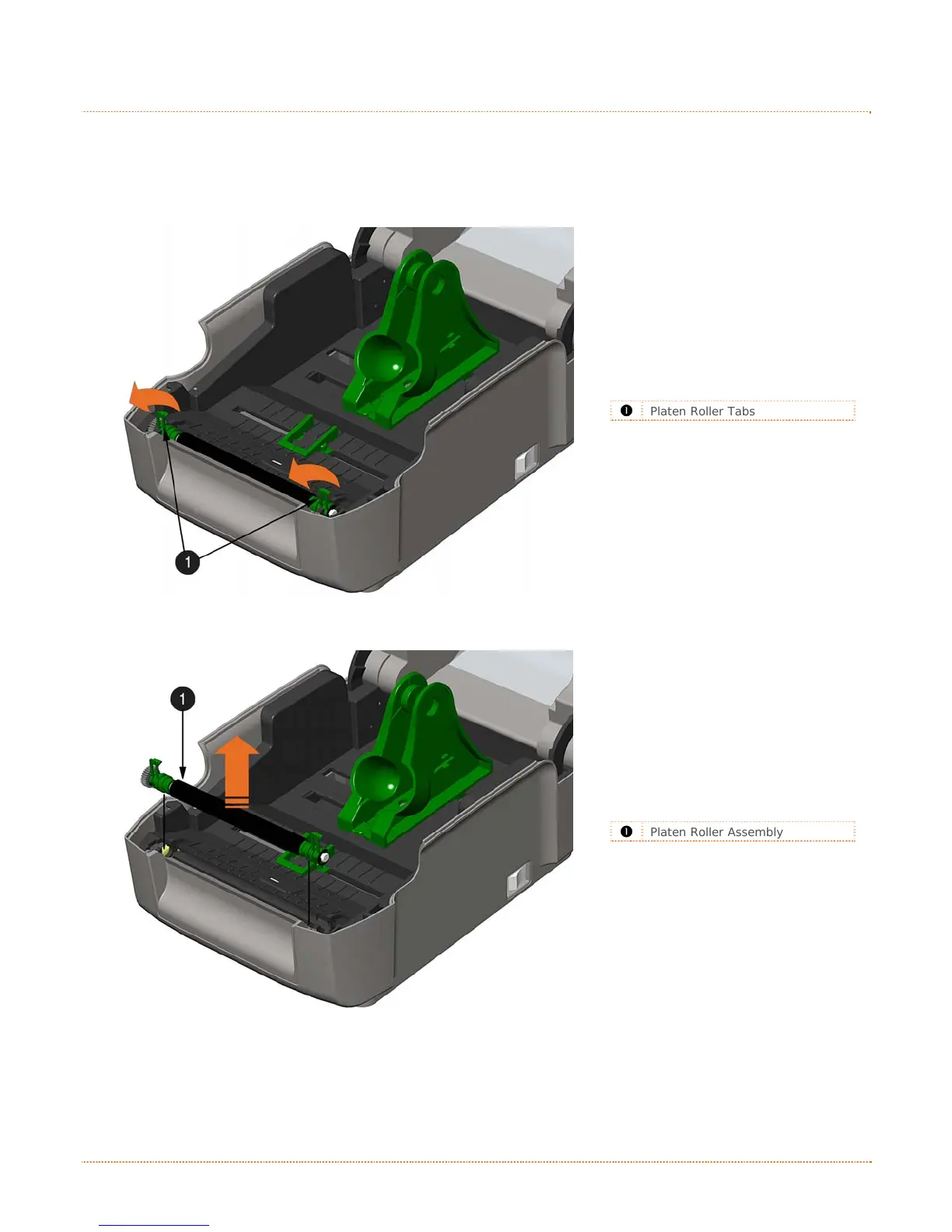

Platen Roller Tabs
3) Remove the Platen Roller Assembly from the printer.
312

Platen Roller Assembly
Installation:
1) Position the Platen Roller Assembly into the printer.
2) Rotate the two Platen Roller Tabs downward until they snap into place.
