Datamax M-Class Mark II Series User Manual

Chapter 3 - Printer Operation 17
Important Notes:
The Windows driver functions the same as any other Windows printer. A built in help file is available for
complete information on all settings; however, there are some important settings that should be
observed for trouble free printing.

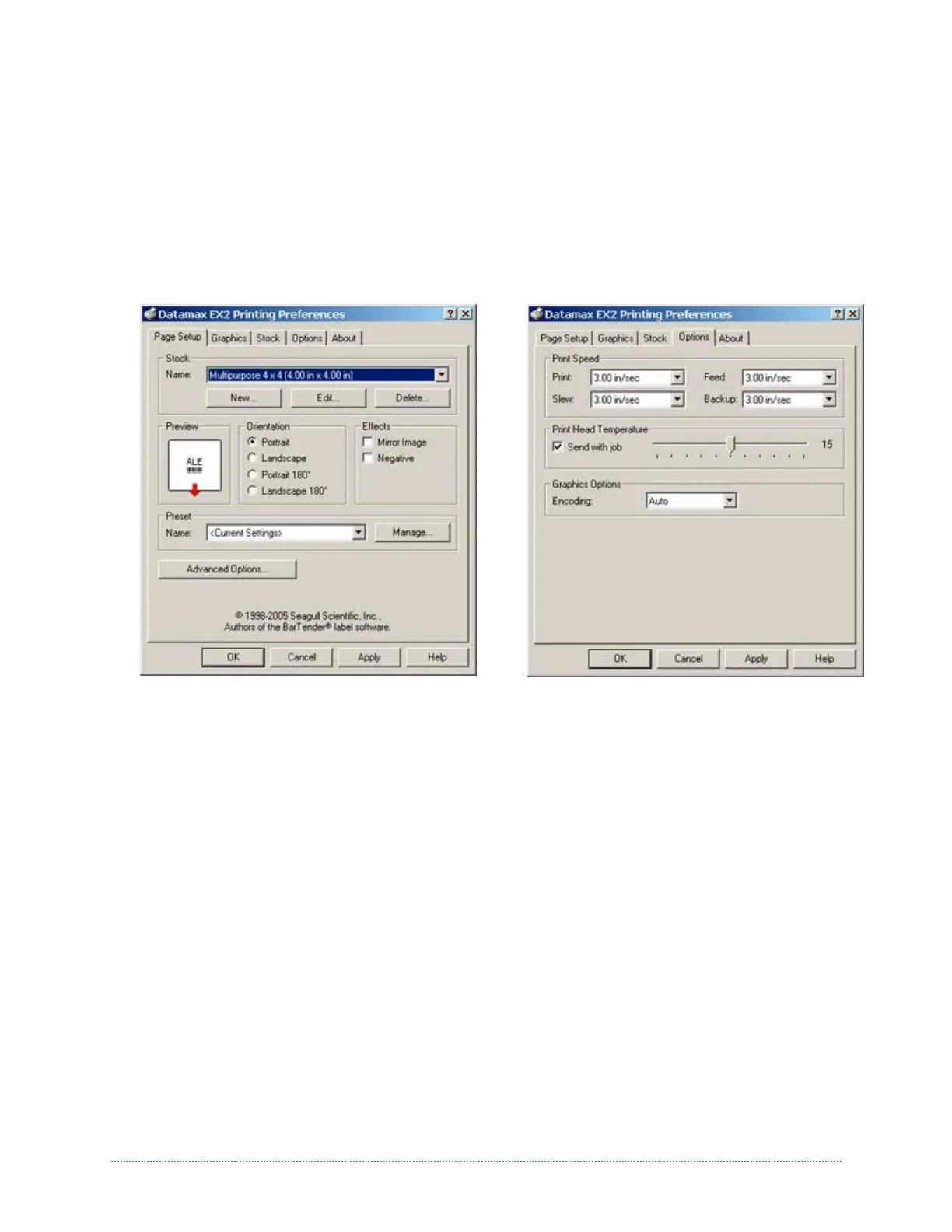

Page Setup Tab: Stock
It is important that the Stock setting matches
the size of the label you are using. If you
cannot find a match for your label click 'New'
and enter the dimensions of your label.
Options Tab: Print Speed & Printhead
Temperature
These two settings will have the greatest effect
on print quality. Some label stocks will require
more heat and slower print speeds to generate a
quality image.
The Windows application software used to create the label format will likely have a "Page Setup"
screen. This will also need to match the size of the label you are using.

Datamax M-Class Mark II Series Specifications

General

Memory	16 MB DRAM, 8 MB Flash
Operating Temperature	40°F to 95°F (4°C to 35°C)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi, 300 dpi
Print Speed	152 mm per second
Interfaces	USB, Serial
Optional Interfaces	Wireless 802.11b/g
Media Sensor	Reflective and Transmissive
Media Type	Labels, Tags, Tickets
Media Width	19 to 118 mm
Media Thickness	0.0025 to 0.0100 inches (0.0635 to 0.254 mm)
Ribbon Width	1.0" (25.4 mm) to 4.09 inches (27 to 104 mm)
Ribbon Length	1968' (600 m)
Storage Temperature	-4°F to 122°F (-20°C to 50°C)
Max Print Length	99 inches (2514 mm)
