Datamax M-Class Mark II Series User Manual

Chapter 5 – Maintenance and Adjustments 49
Automated Printhead Cleaning (Display-equipped printers, only)
1. Remove media and ribbon.
2. Place a Datamax-O’Neil Cleaning Card, part number 70-2013-01 under the printhead. Lower
and lock the printhead. Ensure that the Media Width Adjustment is not
engaged.
3. Press and hold the TEST Key for approximately four seconds.
The printer will begin the cleaning routine.
4. In cases of heavy build-up, or if high heat values are typically used for printing, flip the card
over and repeat Step 3.
5. Reinstall your ribbon and media (if necessary, readjust the Media Width Adjustment, see
Section 5.3). Lower and lock the printhead. Close the cover.
5
5
5
.
.
.
3
3
3
M
M
M
e
e
e
d
d
d
i
i
i
a
a
a
W
W
W
i
i
i
d
d
d
t
t
t
h
h
h
A
A
A
d
d
d
j
j
j
u
u
u
s
s
s
t
t
t
m
m
m
e
e
e
n
n
n
t
t
t
When printing on less than full width media, adjust for even pressure distribution, as follows:
1. With media loaded in the printer, print a label and examine it.
Non-display printers:
Simultaneously press the
PAU S E
+
FEED
buttons
Display-equipped printers:
See Section 4.4

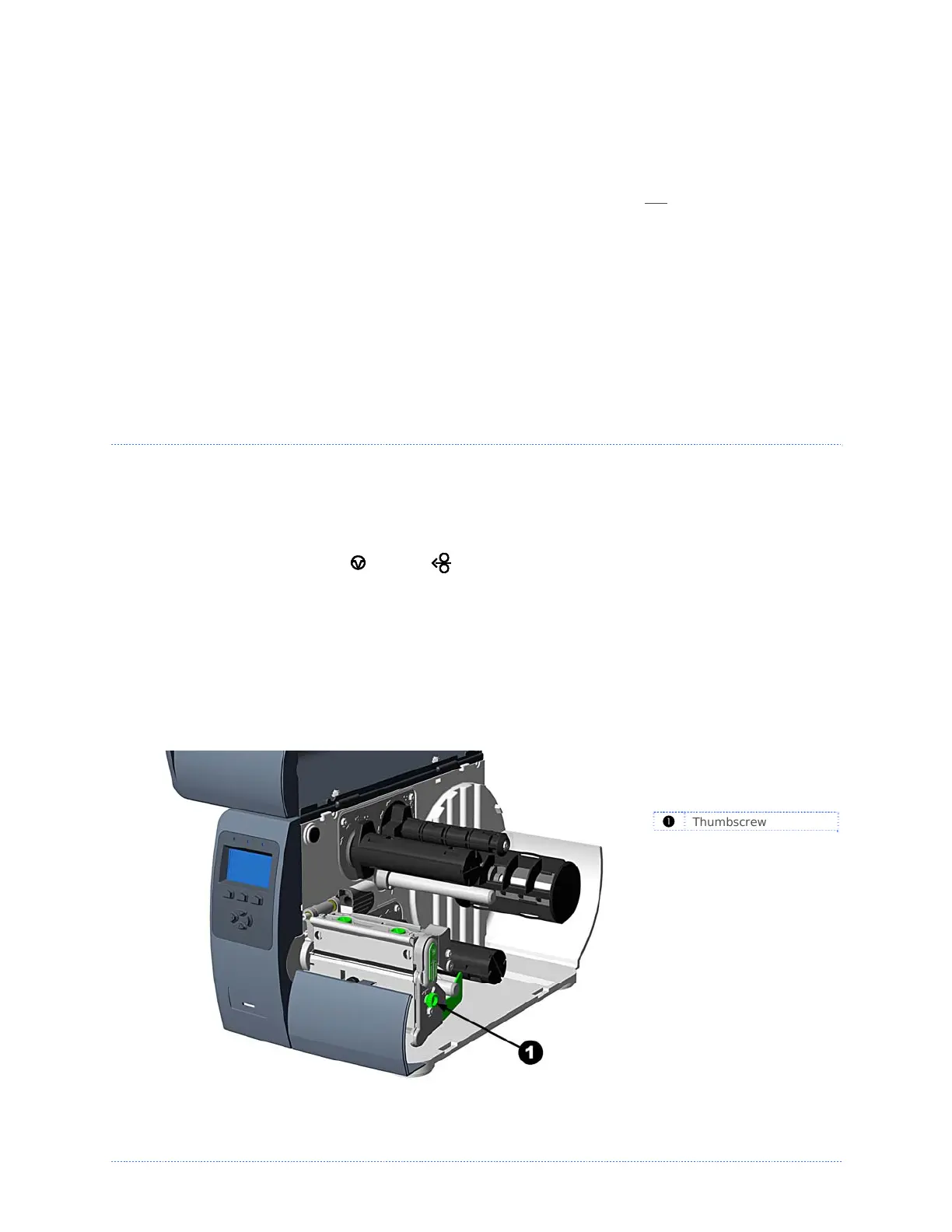

2. While observing the printed labels, loosen the Thumbscrew 1/4 turn. This keeps enough
tension on the screw preventing the thumbscrew from slipping from the desired position while
still allowing for adjustment. Slide the thumbscrew to the left most position, (see Example 1,
below).
3. Next, move the Thumbscrew to the right for each printed test label until the labels contain a
complete, even image (see Example 2). Tighten the Thumbscrew.

Thumbscrew

Datamax M-Class Mark II Series Specifications

General

Memory	16 MB DRAM, 8 MB Flash
Operating Temperature	40°F to 95°F (4°C to 35°C)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi, 300 dpi
Print Speed	152 mm per second
Interfaces	USB, Serial
Optional Interfaces	Wireless 802.11b/g
Media Sensor	Reflective and Transmissive
Media Type	Labels, Tags, Tickets
Media Width	19 to 118 mm
Media Thickness	0.0025 to 0.0100 inches (0.0635 to 0.254 mm)
Ribbon Width	1.0" (25.4 mm) to 4.09 inches (27 to 104 mm)
Ribbon Length	1968' (600 m)
Storage Temperature	-4°F to 122°F (-20°C to 50°C)
Max Print Length	99 inches (2514 mm)
