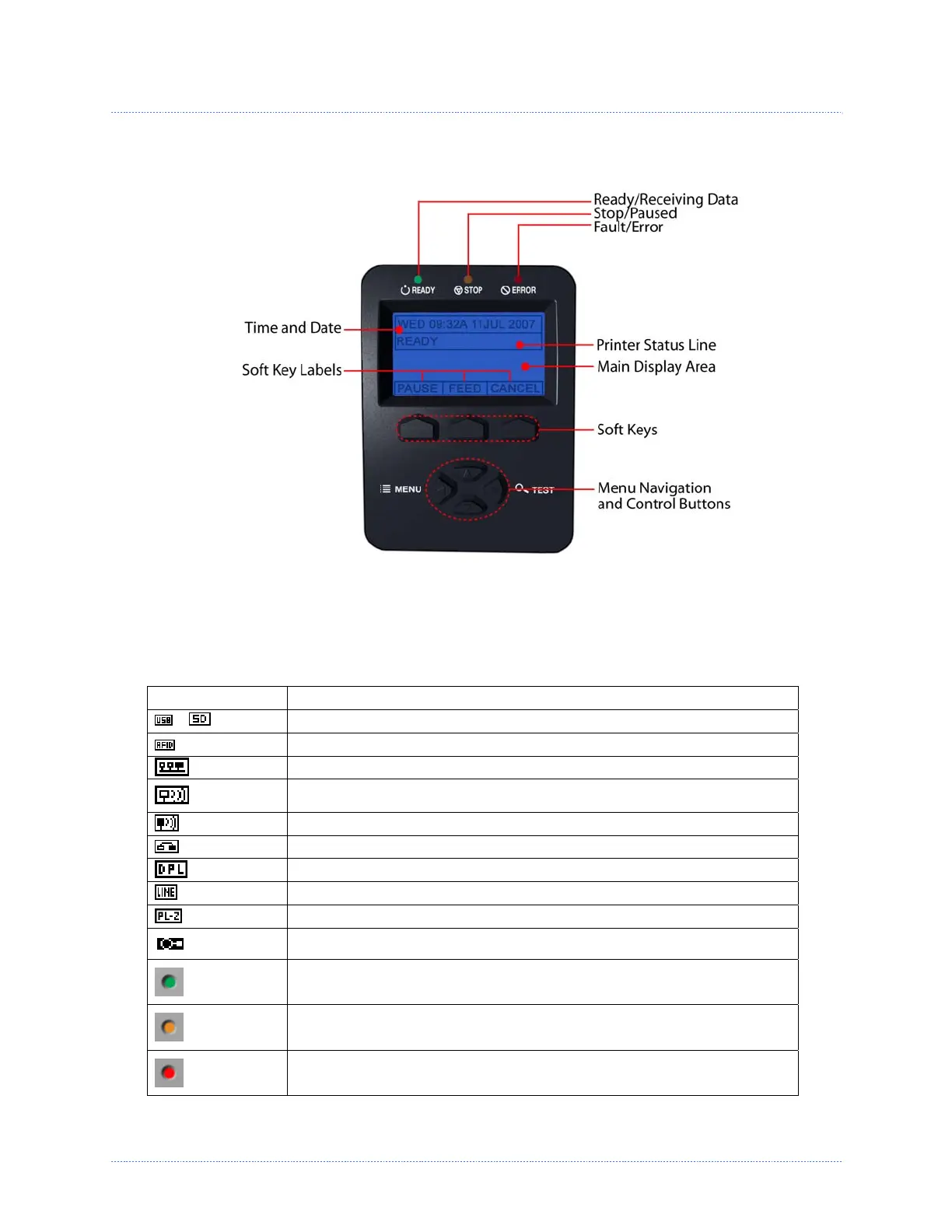

The Control Panel is an event-driven interface composed of a graphic display and keyboard. In
addition to providing current printer information, the mode-dependent panel allows the items in
the Main Display Area and the keyboard functions to change as operational events require.
Icons & Indicators
The icons are graphics that appear in the ‘Printer Status Line’ area of the display. Three LED
indicators are located above the display. Both provide real-time operational information as defined
below:
Item Definition
/
A USB Host or SD device (memory drive or keyboard) has been detected
RFID is installed
A wired LAN connection has been detected
WLAN is enabled and the printer s NOT associated with a WLAN Access
Point
Printer WLAN is associated with an WLAN Access Point
WLAN is in ADHOC mode
DPL mode selected
LINE mode selected
PL-Z mode selected
Enhanced Display Mode – Applies a “zoom” feature for easier viewing. From
the Ready screen, press and hold the down button to toggle on and off.
The printer is receiving data
The printer is stopped or paused
A Fault condition has been detected. For a listing of possible messages,
see Section 6.2

Datamax M-Class Mark II Series Specifications

General

Memory	16 MB DRAM, 8 MB Flash
Operating Temperature	40°F to 95°F (4°C to 35°C)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi, 300 dpi
Print Speed	152 mm per second
Interfaces	USB, Serial
Optional Interfaces	Wireless 802.11b/g
Media Sensor	Reflective and Transmissive
Media Type	Labels, Tags, Tickets
Media Width	19 to 118 mm
Media Thickness	0.0025 to 0.0100 inches (0.0635 to 0.254 mm)
Ribbon Width	1.0" (25.4 mm) to 4.09 inches (27 to 104 mm)
Ribbon Length	1968' (600 m)
Storage Temperature	-4°F to 122°F (-20°C to 50°C)
Max Print Length	99 inches (2514 mm)
