Datamax M-Class Mark II Series User Manual

Chapter 2 - Printer Setup 6

To print directly from stored files at power-up; see Section 4.5, System Settings, User Label
Mode.
 To print a previous label format that is stored in memory:
1. Press the MENU button then select Printer Options.
2. Select Modules and then Print File.
2
2
2
.
.
.
2
2
2
L
L
L
o
o
o
a
a
a
d
d
d
i
i
i
n
n
n
g
g
g
M
M
M
e
e
e
d
d
d
i
i
i
a
a
a
Load media into the printer as follows:

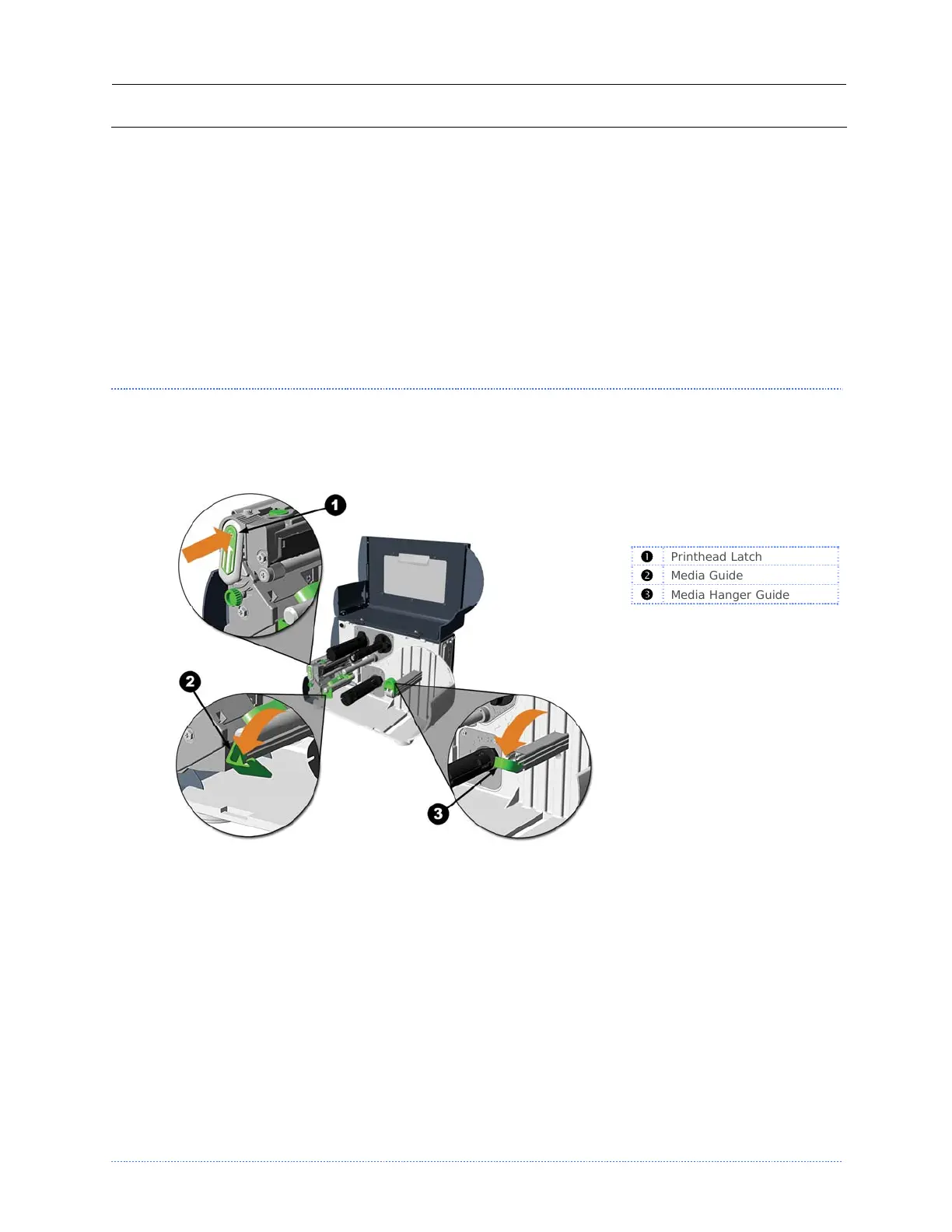

1. Open the media cover and lower the Media Hanger Guide (if equipped) and Media Guide.
2. Press in on the Printhead Latch and raise the Printhead Assembly.

Printhead Latch

Media Guide

Media Hanger Guide
3. Slide the Roll Media onto the Media Hub or Media Hanger. If the printer is equipped with a
Media Hanger, raise the Media Hanger Guide. The Media Hanger Guide should be pushed
inward so that it is just touching the Roll Media.
4. Route the Media through the printer as shown. Raise the Media Guide. The Media Guide
should be pushed inward so that it is just touching the edge of the Media.

Datamax M-Class Mark II Series Specifications

General

Memory	16 MB DRAM, 8 MB Flash
Operating Temperature	40°F to 95°F (4°C to 35°C)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi, 300 dpi
Print Speed	152 mm per second
Interfaces	USB, Serial
Optional Interfaces	Wireless 802.11b/g
Media Sensor	Reflective and Transmissive
Media Type	Labels, Tags, Tickets
Media Width	19 to 118 mm
Media Thickness	0.0025 to 0.0100 inches (0.0635 to 0.254 mm)
Ribbon Width	1.0" (25.4 mm) to 4.09 inches (27 to 104 mm)
Ribbon Length	1968' (600 m)
Storage Temperature	-4°F to 122°F (-20°C to 50°C)
Max Print Length	99 inches (2514 mm)
