Datamax M-Class Mark II Series User Manual

Chapter 5 – Maintenance and Adjustments 52
5
5
5
.
.
.
6
6
6
P
P
P
r
r
r
i
i
i
n
n
n
t
t
t
h
h
h
e
e
e
a
a
a
d
d
d
R
R
R
e
e
e
p
p
p
l
l
l
a
a
a
c
c
c
e
e
e
m
m
m
e
e
e
n
n
n
t
t
t
To replace a damaged printhead, follow the procedure below.

Printheads are fragile; use extreme care when handling and never use a sharp object on the
surface. If you have questions, contact a qualified technician or Datamax-O’Neil
Technical
Support before proceeding.
1. Touch a bare metal part of the printer’s frame to discharge any static electricity that may be
present on your body.
2. Turn ‘Off’ and unplug the printer. Open the cover; if ribbon is installed, remove it.
3. With the printhead locked in the down position, loosen the Printhead Mounting Screw (it will
remain in the assembly).
4. Unlatch the Printhead Assembly. While holding the Printhead, raise the assembly. Disconnect
the two cables and then remove the old Printhead.
5. While carefully holding the new Printhead, connect both cables.
6. Position the Printhead onto the Locating Pins in the Printhead Assembly and secure in place
with the Printhead Mounting Screw (do not over-tighten).
7. Clean the Printhead (see Section 5.2).
8. Reload ribbon (if removed), lower the printhead assembly, and rotate the printhead latch
back, into the locked position.
9. Use the Darkness Adjustment to match the print contrast of the new printhead to that of the
old printhead see Section 5.7.


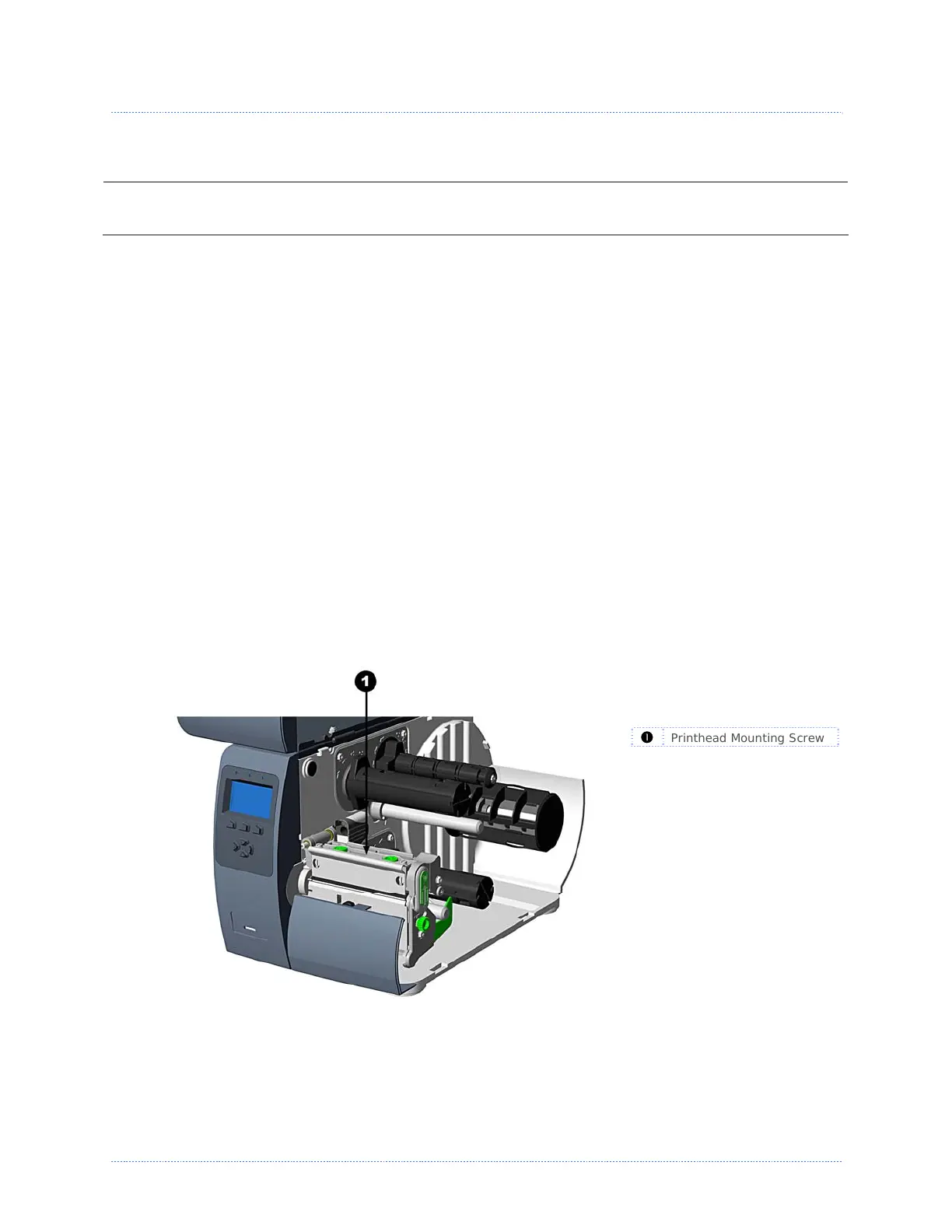

Printhead Mounting Screw

Datamax M-Class Mark II Series Specifications

General

Memory	16 MB DRAM, 8 MB Flash
Operating Temperature	40°F to 95°F (4°C to 35°C)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi, 300 dpi
Print Speed	152 mm per second
Interfaces	USB, Serial
Optional Interfaces	Wireless 802.11b/g
Media Sensor	Reflective and Transmissive
Media Type	Labels, Tags, Tickets
Media Width	19 to 118 mm
Media Thickness	0.0025 to 0.0100 inches (0.0635 to 0.254 mm)
Ribbon Width	1.0" (25.4 mm) to 4.09 inches (27 to 104 mm)
Ribbon Length	1968' (600 m)
Storage Temperature	-4°F to 122°F (-20°C to 50°C)
Max Print Length	99 inches (2514 mm)
