AP25 Installation and Operating Guide Version 1.00
Appendix E. 8-Channel AP25 E-1 Document #: 9301H79500 Ver. 1.00
Appendix E: 8-Channel AP25 Version and H332 Upgrade
Introduction
The 8-channel version of the AP25 (P/N MD10H78501) contains all features of the standard 16 channel version (P/N
MD10H78500) with the exception of Digital Audio channels 9-16 in and out, and Analog Audio channels 9-16 out.
The 8 channel AP25 may be upgraded to 16 channels by adding the H332 circuit card (P/N 9030H33200). See page
E5.
AP25 8-Channel Screens
The following screens differ from the standard 16-channel version. All other screens are the same as those in the
standard 16-channel version, and are described in the other sections of this manual.
Home Screen – Monitor Mix, Home → Monitor → Mix

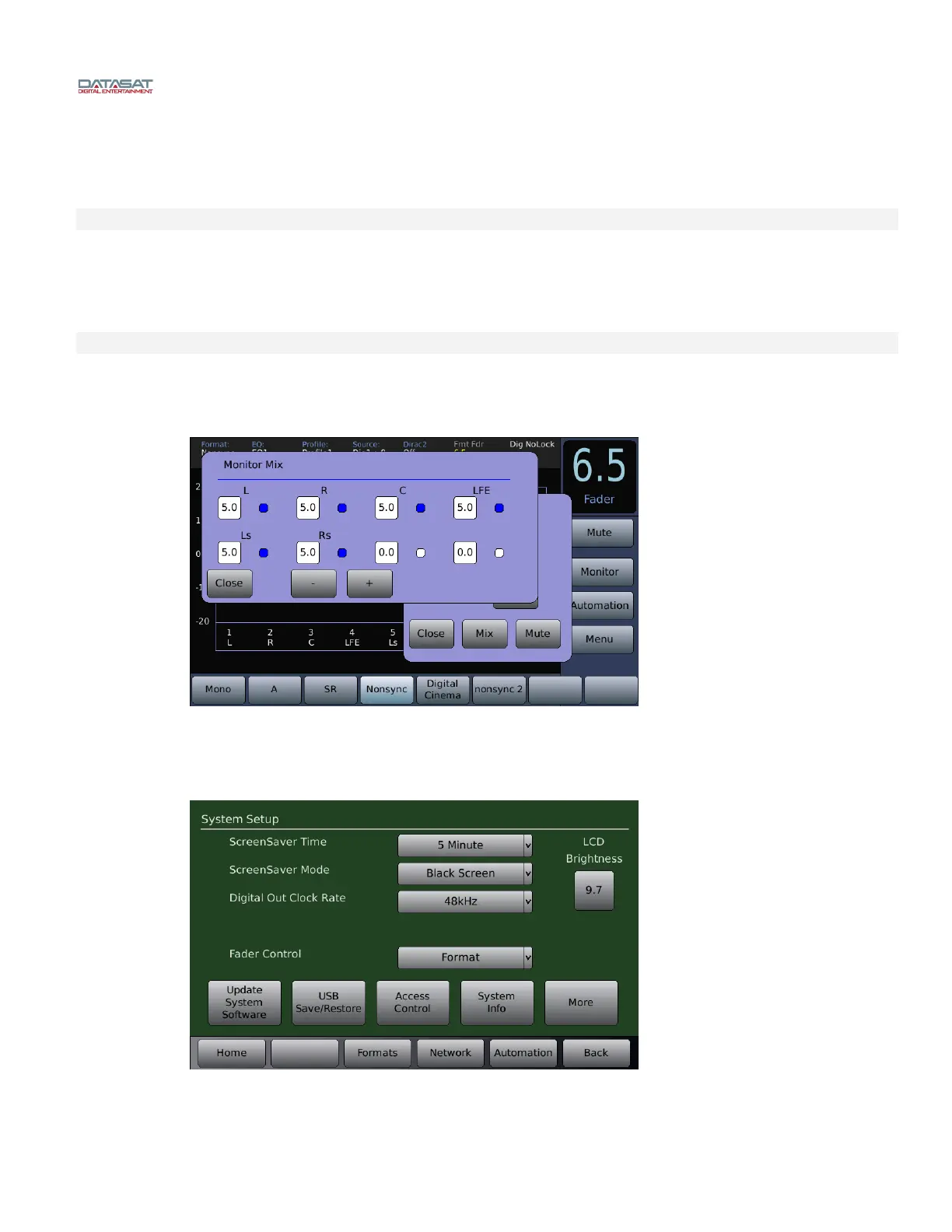

Figure 1 – Monitor Mix
Channel selection is limited to 8 channels.
System Screen - Output Mapping not available
Figure 2 – System Screen
The Output Mapping feature found on the System setup screen of the 16-channel AP25 (Menu (System) → Output
Mapping) is not available on the 8 channel version.
