1.4.2 Booth Monitor Volume
When an external powered speaker is connected to the AP25, the level can be controlled using the
monitor volume. To adjust the booth monitor volume, touch the Monitor button. The screen shown in
Figure 7 will appear. Touch the + or – buttons to raise or lower the volume.
 Touch the
Mute button to mute/un-mute the booth monitor.
 Touch the Mix button to select a channel and adjust the volume from 0 to 10. See Figure 8,
below.
 Touching the Close button
will close this screen. The Monitor Volume window will close if
not used within 30 seconds.

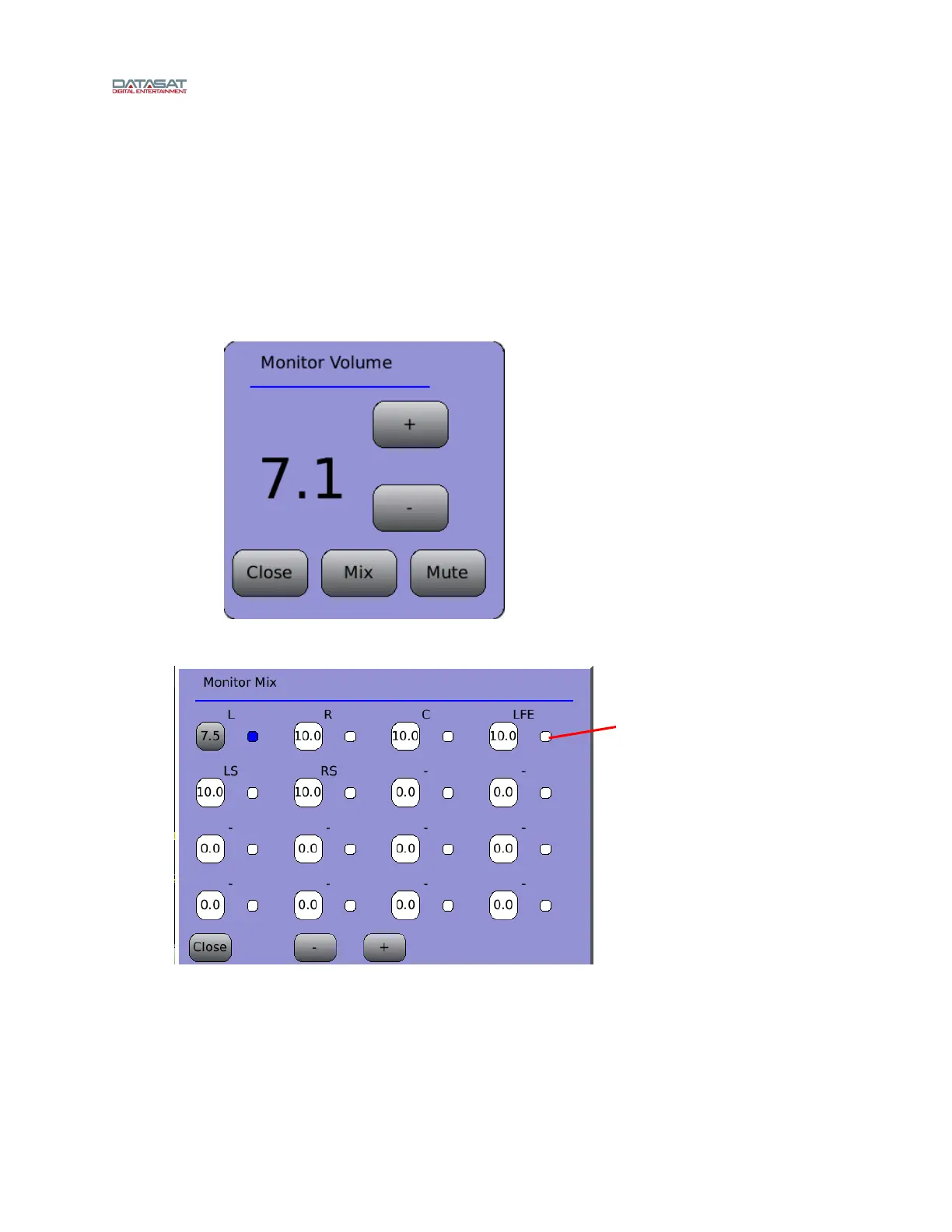

Figure 7. Monitor Volume
Figure 8. Monitor Mix
 Select channel(s), then touch the + or – button to adjust volume from 0 to 10.
 Touch the small button next to a channel to select it for monitoring.
 Touch Close to close the Mix window. It also closes automatically after 30 seconds of
inactivity.
Touch the small button
to select a channel for
monitoring
