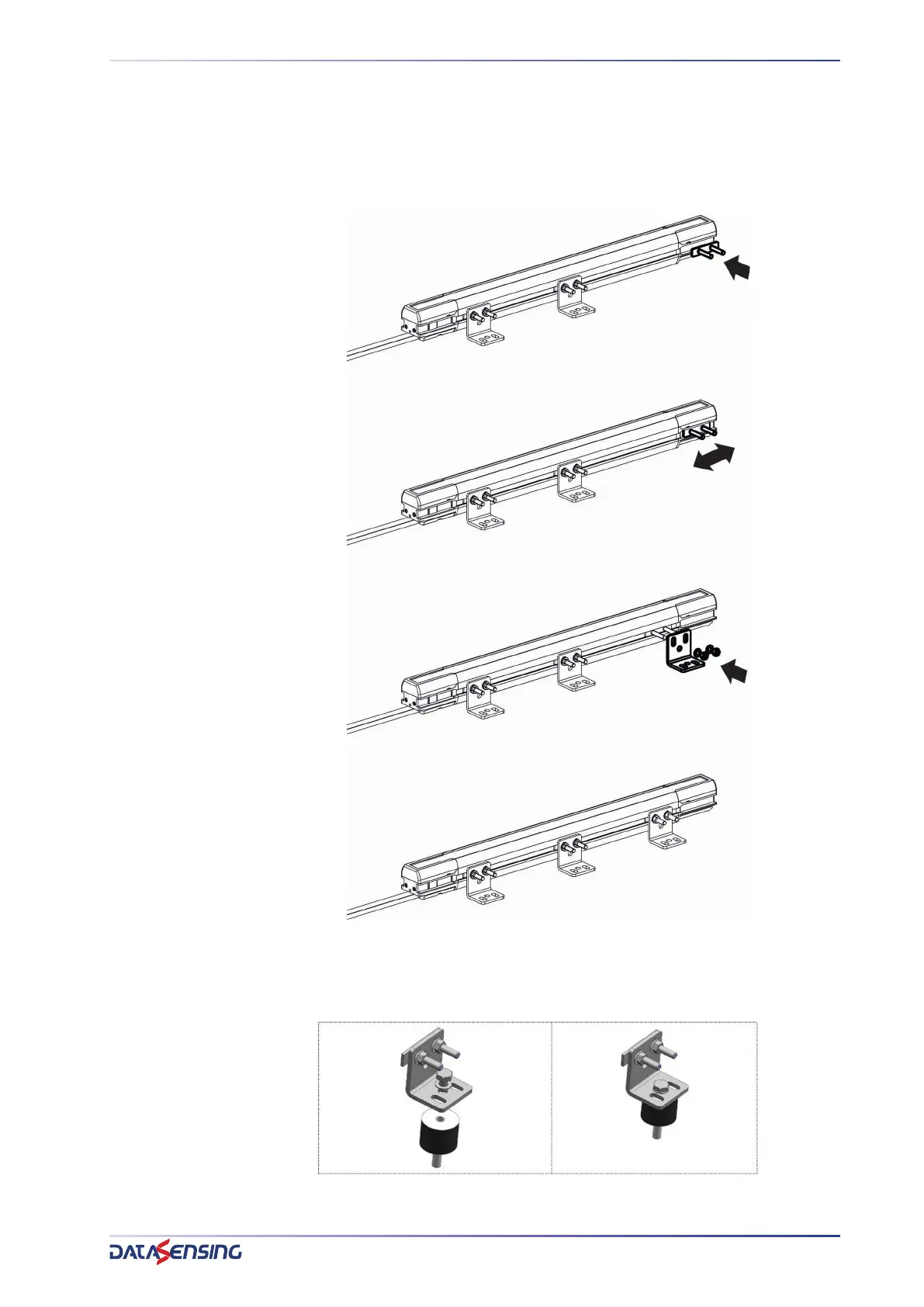

To mount the angled fixing brackets kit, place the threaded pins metallic insert into the
dedicated side seat of the terminator cap side light curtain closing cap (1); slide the
insert towards the metallic drawn profile groove (2).
Fix the bracket against the profile by tightening the M5 hexagonal nuts (3-4). It's possi-
ble to slide the bracket group along their dedicated rail and fix it once again just working
on the above-mentioned nuts.
Figure 17: Fixed brackets mounting procedure
In case of applications with particularly strong vibrations, vibration dampers, together
with mounting brackets, are recommended to reduce the impact of the vibrations.
Figure 18: Anti-vibration dampers
1)
2)
3)
4)
