MECHANICAL MOUNTING
24 SH4 BASE-STANDARD

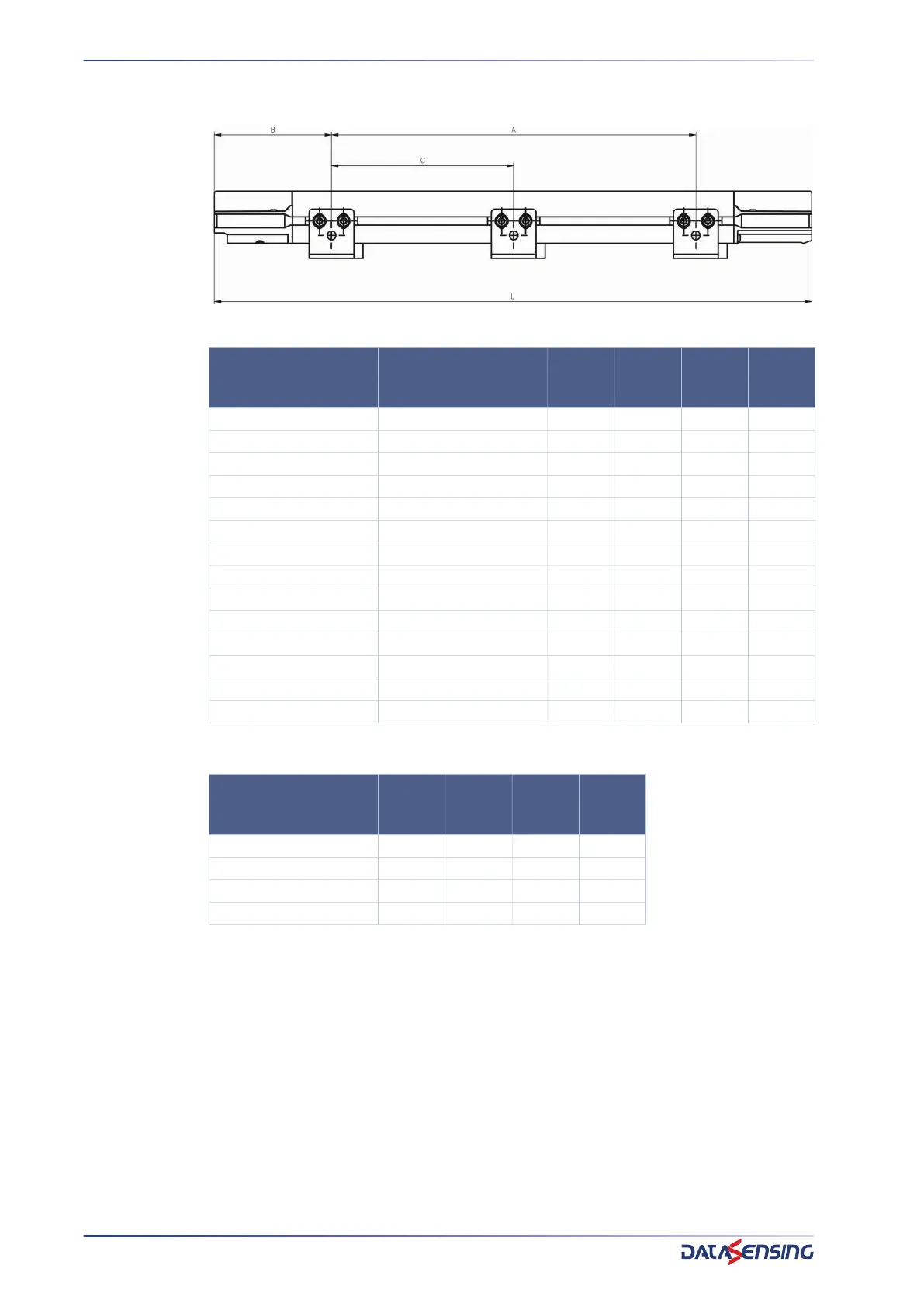

The recommended mounting positions according to the light curtain length are shown
in Figure 19 and in the following table.
Figure 19 - Light curtain dimensions
MODEL 14 mm MODEL 30 mm
L
(mm)
A
(mm)
B
(mm)
C
(mm)
SH4-14-0300-x-x SH4-30-0300-x-x 309 89 110 -
SH4-14-0450-x-x SH4-30-0450-x-x 459 239 110 -
SH4-14-0600-x-x SH4-30-0600-x-x 609 309 150 -
SH4-14-0750-x-x SH4-30-0750-x-x 759 409 175 -
SH4-14-0900-x-x SH4-30-0900-x-x 909 509 200 -
SH4-14-1050-x-x SH4-30-1050-x-x 1059 609 225 -
SH4-14-1200-x-x SH4-30-1200-x-x 1209 909 150 454.5
SH4-14-1350-x-x SH4-30-1350-x-x 1359 1009 175 504.5
SH4-14-1500-x-x SH4-30-1500-x-x 1509 1109 200 554.5
SH4-14-1650-x-x SH4-30-1650-x-x 1659 1209 225 604.5
SH4-14-1800-x-x SH4-30-1800-x-x 1809 1309 250 654.5
SH4-14-1950-x-x SH4-30-1950-x-x 1959 1409 275 704.5
SH4-14-2100-x-x SH4-30-2100-x-x 2109 1509 300 754.5
SH4-14-2250-x-x SH4-30-2250-x-x 2259 1609 325 804.5
MODEL BODY
L
(mm)
A
(mm)
B
(mm)
C
(mm)
SH4-2-0500-x-x 674 150
SH4-3-0800-x-x 974 200
SH4-4-0900-x-x 1074 225
SH4-4-1200-x-x 1374 175
