Datavideo HS-1600T User Manual

14

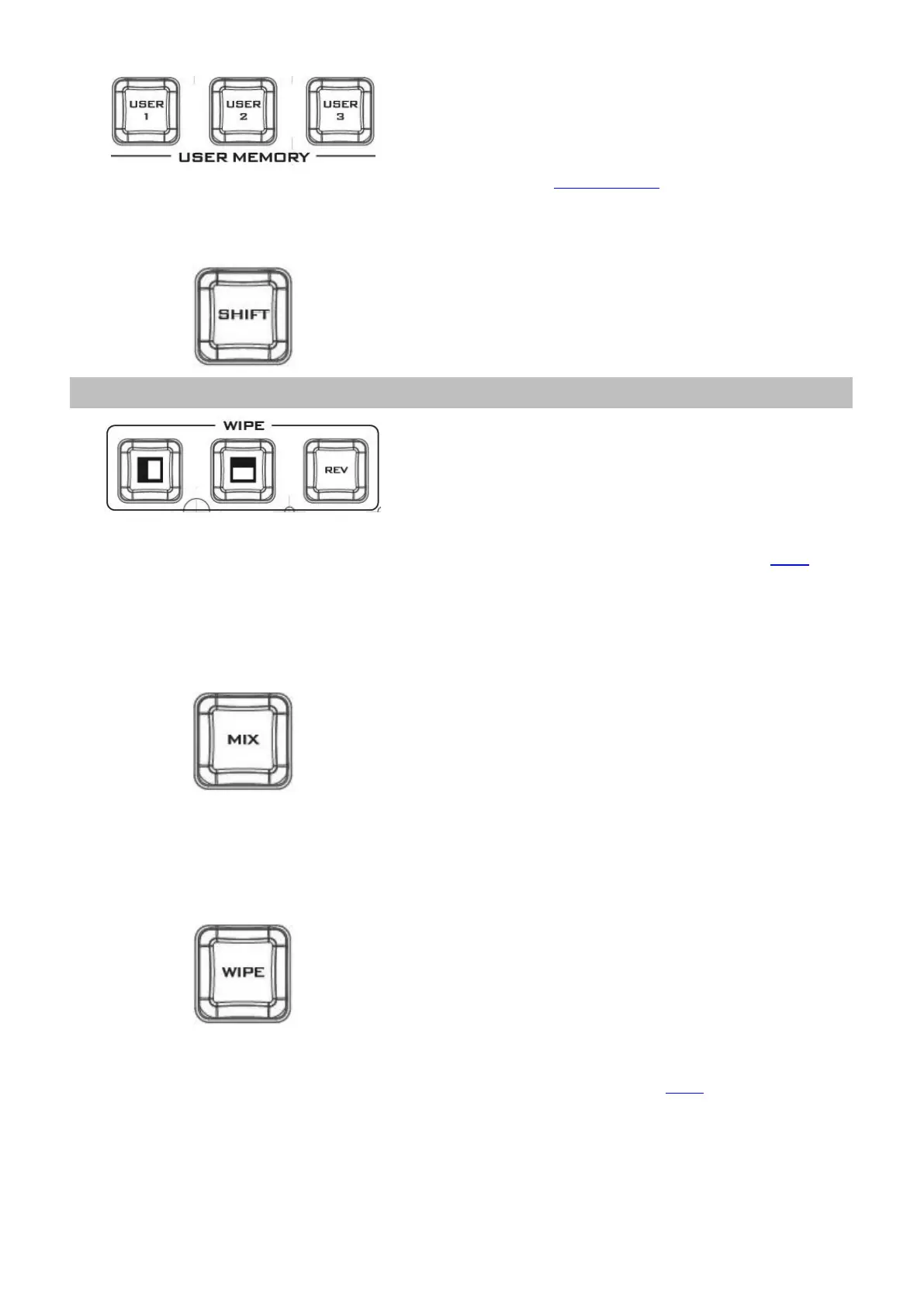

User Memory
User Memory buttons 1-3 allow the user to quickly
recall and load previously saved switcher settings with
a single button press. This includes PIP and Keyer
settings. See the User Memory section for setup
information.
Shift Button
Pressing the Shift button will switch USER 1-3 buttons
to USER 4-6 buttons
Transition Effects
WIPE Transition Effect Selection
Each Wipe button consists of black and white colors.
The white represents the current Program image and
the black represents the WIPE-IN image. The HS-1600T
provides 3 WIPE presets with the Horizontal and
Vertical WIPEs selectable on the control panel. The
Center WIPE can be selected from the menu (Start).
Pressing the REV button reverses the direction of the
WIPE.
MIX Enable/Disable Button
A MIX, also known as a dissolve, is a transition wherein
the Program video is replaced by the Preview video at
a smooth rate, and at the same time. Pressing the MIX
button enables the MIX transition effect and
automatically disables the WIPE button. To trigger the
MIX effect, simply press the AUTO button or move the
T-Bar.
WIPE Transition Effect Enable/Disable Button
Pressing the WIPE button enables the WIPE transition
effect after which the WIPE transition effect can be
selected. To trigger the WIPE transition effect, simply
press the AUTO button or move the T-Bar.
Wipe Transition Effect, Border and Position settings
can be found in the OSD menu (Start).
